M5 x 16mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Product code:
LSC7984-M5-16-A4-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.43 | £1.72 |
| 10 - 24 | £1.14 | £1.37 |
| 25 - 49 | £0.92 | £1.10 |
| 50 - 99 | £0.68 | £0.82 |
| 100 - 499 | £0.46 | £0.55 |
| 500 - 999 | £0.34 | £0.41 |
| 1000 + | £0.23 | £0.27 |
£1.72
/ each
Quantity:
Product Specification
| Thread Size | M5 |
| Length | 16mm |
| Threaded Length | Fully Threaded |
| Pitch | 0.80mm |
| Head Diameter | 8.5mm |
| Head Height | 3.5mm |
| Drive | H3 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A4-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M5 x 16mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Commonly specified for compact equipment builds, this M5 x 16mm low head hex socket screw supports secure fastening without excessive head height.
The low head shape spreads load through a cap-style bearing face while keeping the assembly slimmer than a standard DIN 912 socket cap screw.
Common Applications
- Commercial equipment applications for clamping equipment covers with M5 thread
- Mounting conveyor side plates using a 16mm low head stainless fixing
- Display systems assemblies where reduced snagging helps protect nearby components
- Fixing vehicle panels where A4 stainless material is specified

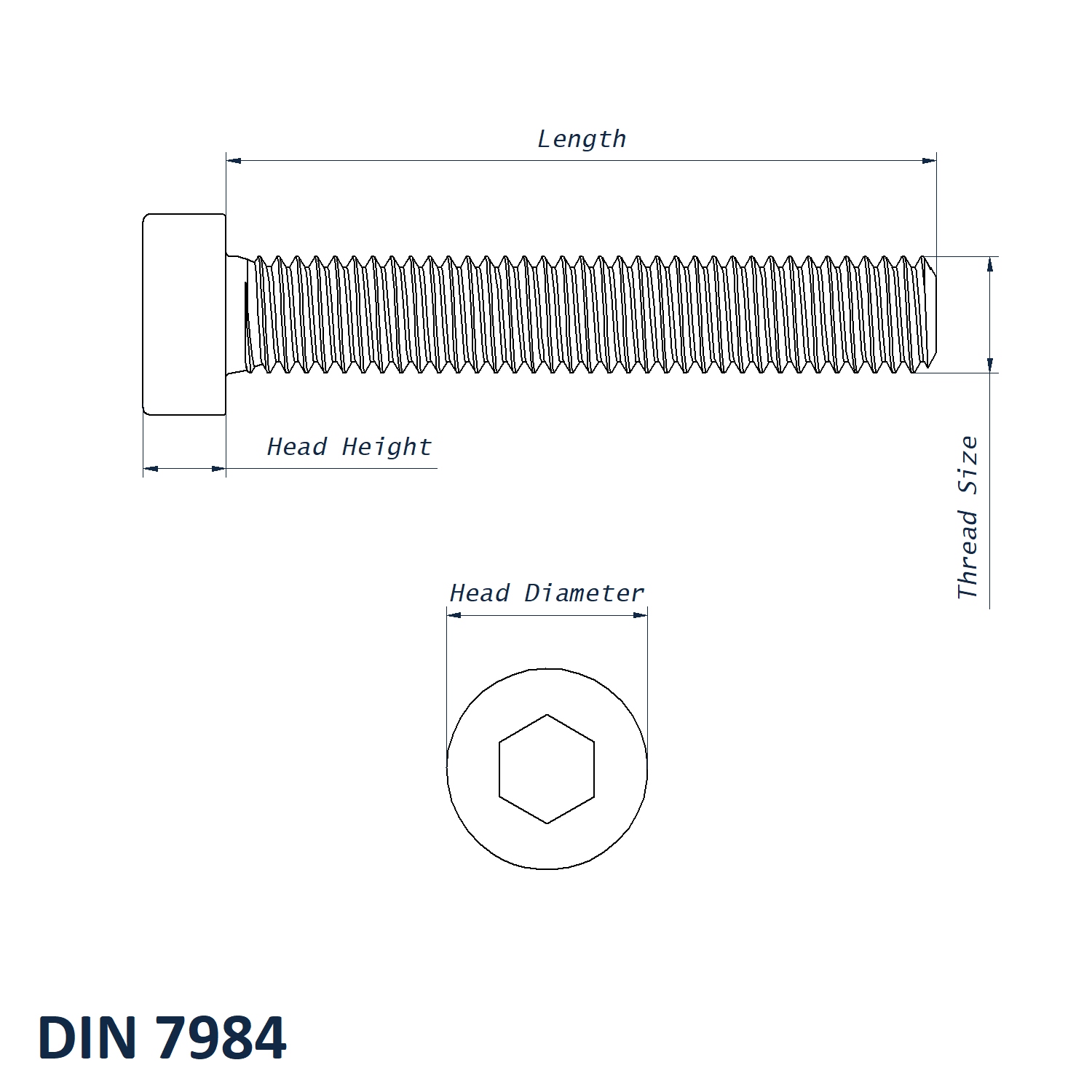

M5 x 16mm Low Head Socket Cap Screw Dimensions
- Thread Size: M5
- Length: 16mm
- Threaded Length: Fully Threaded
- Pitch: 0.80mm
- Head Diameter: 8.5mm
- Head Height: 3.5mm
- Drive: H3
- Material: A4-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
View our full Low Head Socket Cap Screws DIN 7984 range.
