40mm x M6 x 35mm Polypropylene Male BZP Threaded Handwheel - 6 Lobed

40mm x M6 Steel Male Threaded Handwheel – 35mm Thread Length & 20mm Thread Height – 6 Lobed | Vital Parts – HW025

Our Male Threaded Handwheels provide strong reliable control for clamping fixing and precise adjustment across a wide range of industrial and commercial applications. Built around an external male thread these handwheels connect directly to a matching female thread to deliver positive engagement and repeatable performance without tools.

What are Male Threaded Handwheels?

Male Threaded Handwheels are round operating knobs or handles with an externally threaded stud fixed to the hub. The male thread engages with a female thread inside a component fixture or machine part to create a secure adjustable connection. This makes them ideal wherever frequent repositioning or tightening by hand is required without using spanners or keys.

Key Features:

• Strong external male thread for direct fitment
• Toolless installation for quick setup and removal
• Comfortable grip for controlled tightening and release
• Available in multiple materials and finishes
• Durable construction for repeated everyday use

Key Applications and Industries

These handwheels are widely used for clamping and adjustment on machinery jigs and fixtures assembly stations furniture fittings lab equipment HVAC units and light plant. Typical tasks include locking slides and guides setting stops securing covers and panels and making fine adjustments on control panels or test rigs. Their clean smooth design also suits environments where appearance and easy cleaning are important.

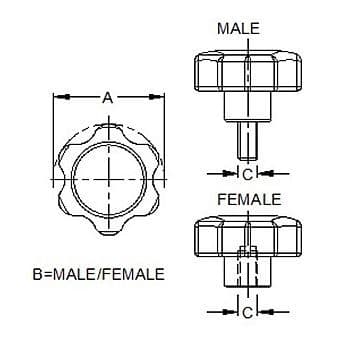

Technical Specifications

• Handwheel Diameter: 40mm
• Thread: M6
• Thread Length: 35mm
• Total Height: Male
• Thread Height: 20mm
• Shank Height: 8mm
• Shank Diameter: 17mm
• Lobes: 6
• Handle Material: Polypropylene
• Thread Material: BZP
• Thread Type: Male external thread
• Installation: Manual toolless fitment to a matching female thread
• Operating Temperature: Dependent on material Nylon typically up to 120°C Stainless Steel up to 300°C
• Maintenance: Replaceable handwheel and stud assemblies for reduced downtime

Benefits:

• High strength connection that withstands increased loads
• Fast adjustments improve setup time and throughput
• Reduced wear on tools as tightening is performed by hand
• Choice of materials to balance weight corrosion resistance and cost
• Clean professional look for customer facing equipment

Variants and Alternatives

Alongside Male Threaded Handwheels we also supply Female Threaded and Through Threaded variants to match different assembly needs. If you need an alternative style thread size colour or material we can provide custom quotations for non standard parts to fit your project.

Why Choose Vital Parts?

We stock a wide range of Male Threaded Handwheels in popular sizes materials and finishes ready for fast UK delivery. Our products are manufactured to consistent tolerances to ensure smooth operation reliable grip and long service life across demanding industrial settings.

• Extensive UK stock for rapid dispatch
• Technical support to help specify the right handwheel
• Custom options available to meet unique requirements
