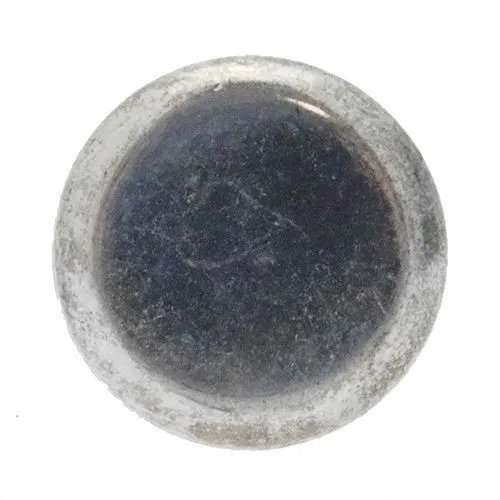

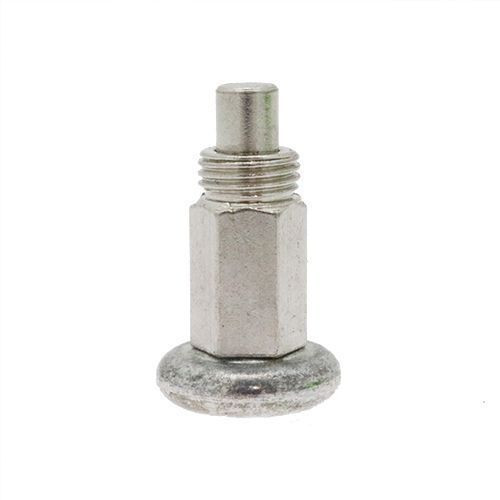

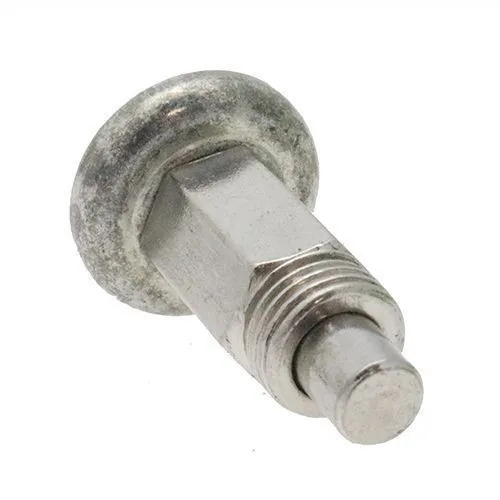

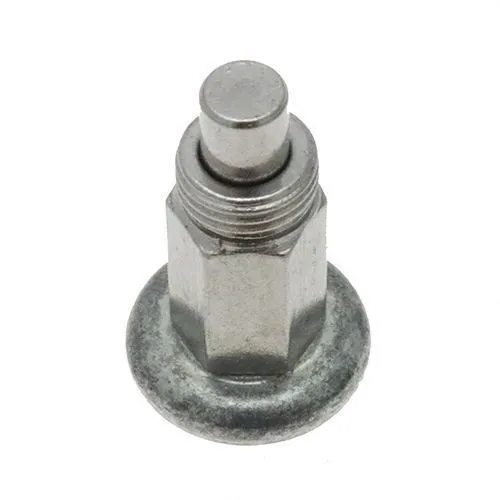

Metal Body Index Plungers - IND059
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £2.25 | £2.70 |
| 25 - 49 | £2.24 | £2.69 |
| 50 - 99 | £2.08 | £2.50 |
| 100 - 499 | £1.87 | £2.24 |
| 500 + | £1.43 | £1.72 |
Product Stock

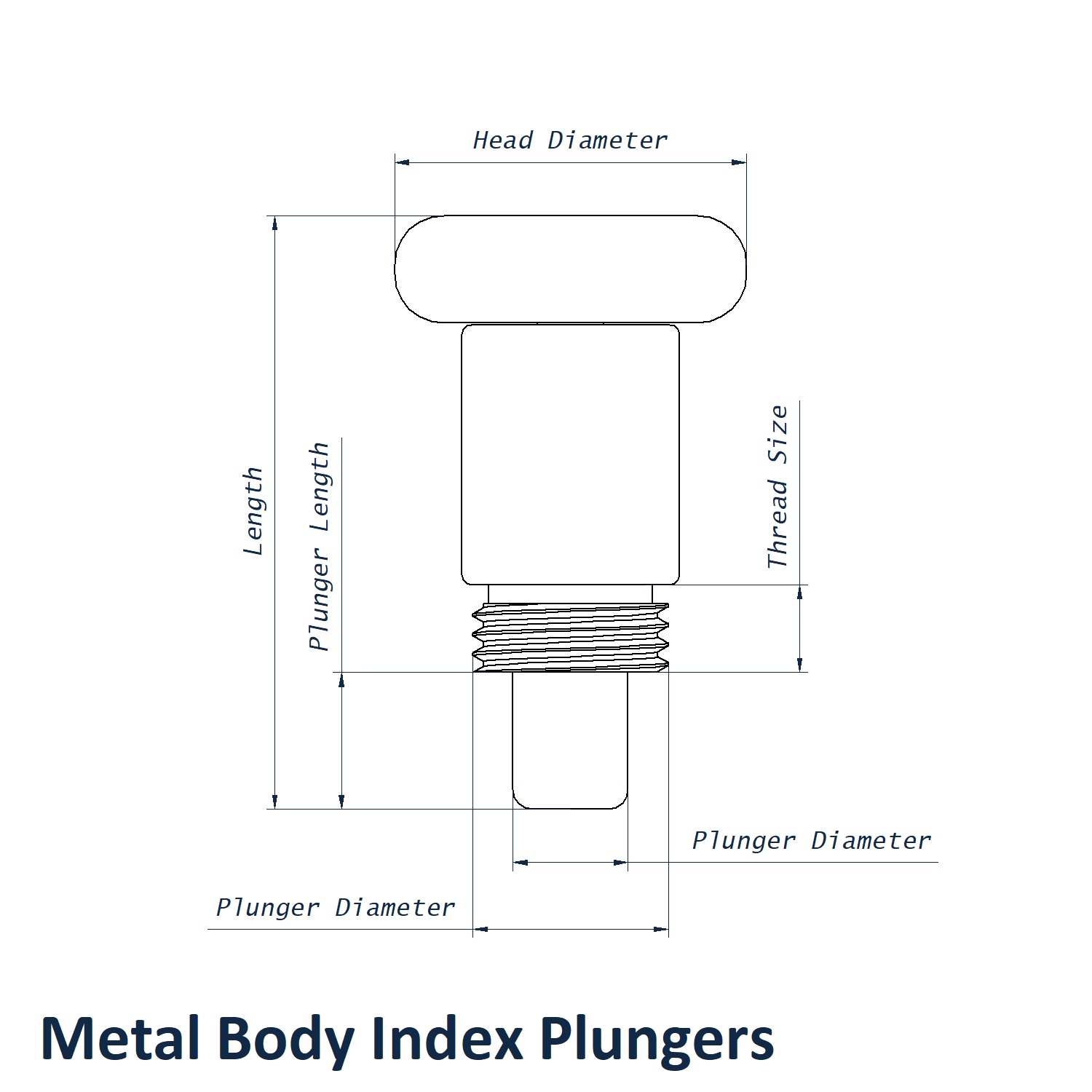

| Product Specifications | IND059 |
|---|---|
| Thread Size | M12 x 1.75mm |
| Head Diameter | 24mm |
| Plunger Diameter | 7mm |
| Length | 39mm |
| Material | Zinc Plated Steel |
| Locking Rest Position | No |
| Force For Full Retraction | 16N |
| Initiating Force | 5N |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
This metal index plunger has a 24mm head diameter and a M12 x 1.75mm thread size. It has a plunger diameter of 7mm and a length of 39mm. It is available in Zinc Plated Steel. Does it have a locking rest position? No.
The Metal Body Index Plungers are spring-loaded plungers that come with or without a locking rest position. They are made of zinc-plated steel or stainless steel and a zinc-plated die-cast head, making them suitable for heavy-duty locking and positional mechanisms.
These stainless steel plungers are threaded and can easily be installed to your application via metric thread, providing compatibility with all matching female thread sizes.
They are available in a range of head diameters and thread sizes and are commonly used to lock or position a mechanism within machinery or for basic hand-operated locking functions.
