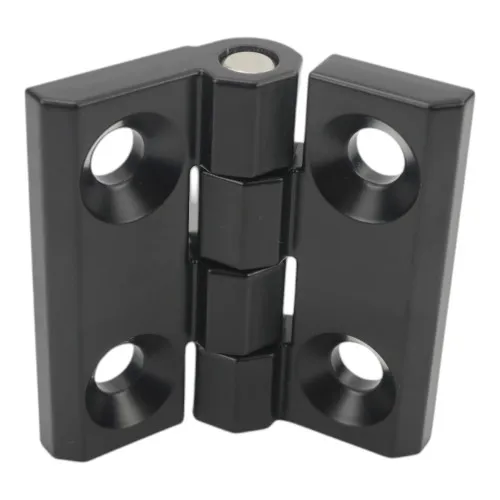

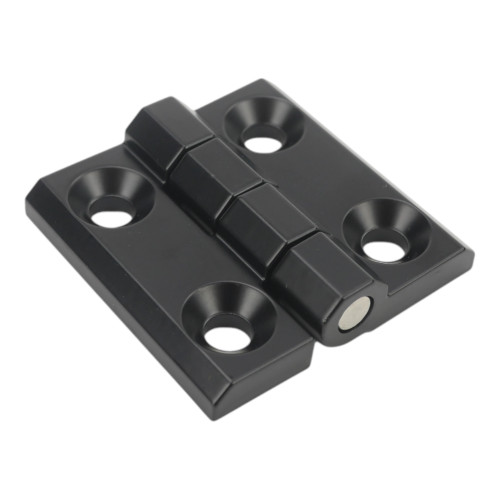

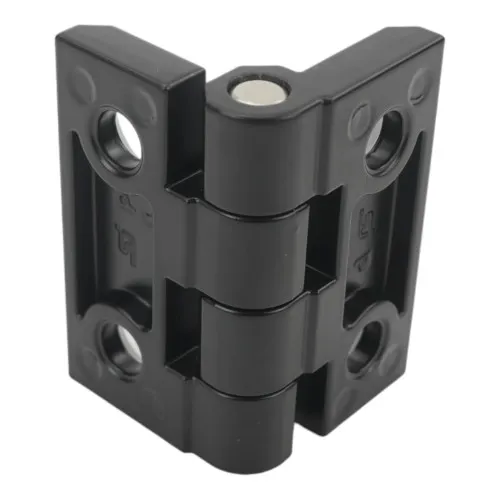

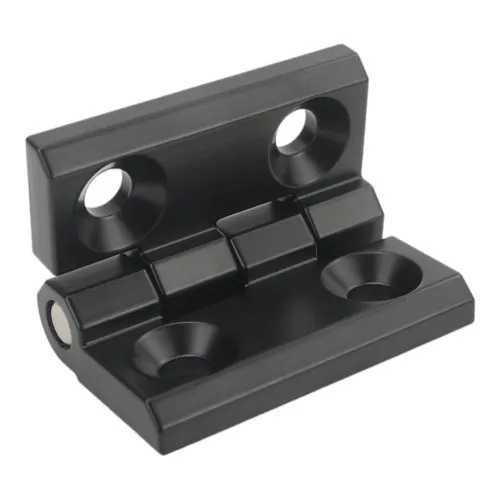

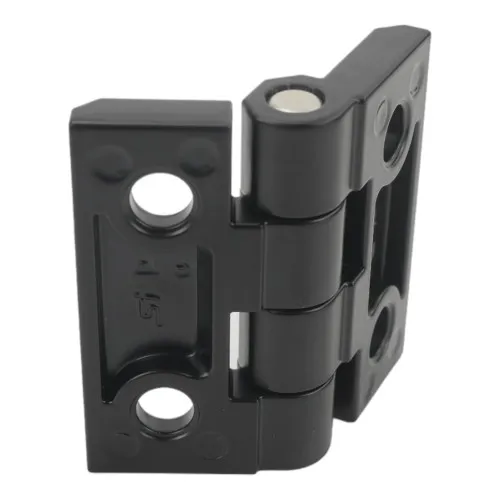

60mm x 60mm Metal Countersunk Hinge
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £11.54 | £13.85 |
| 10 - 24 | £10.72 | £12.86 |
| 25 - 49 | £9.89 | £11.87 |
| 50 - 99 | £8.57 | £10.29 |
| 100 - 499 | £6.92 | £8.31 |
| 500 + | £5.93 | £7.12 |
£13.85 / each
.png)
Product Specification
| Height | 60mm |
| Open Width | 60mm |
| Hole Centre Height | 36mm |
| Hole Centre Width | 36mm |
| Material | Powder Coated Zinc & Nickel Plated Steel |
| Open Thickness | 15mm |
| Panel Thickness | 8mm |
| Hole Size | 8.4mm |
| Colour | Black |
| Axial Load | 1500N |
| Radial Load | 1800N |
Frequently Bought Together
Total Price: £0.00
60mm x 60mm Metal Countersunk Hinge | Black | Powder Coated Zinc & Nickel Plated Steel
This 60mm x 60mm Metal Countersunk Hinge provides a heavier hinge option for machine guards, inspection doors and robust enclosure panels. Its larger format and 8.4mm hole size make it well suited to heavy duty metal countersunk hinge applications where a secure screw fixing and stable panel movement are required.
The Powder Coated Zinc & Nickel Plated Steel body is finished in black for a clean industrial appearance, while the 15mm open thickness and 8mm panel thickness support use on more substantial assemblies. The 36mm x 36mm mounting pattern helps position the hinge accurately on machinery covers, fabrication projects and production equipment.
Common Applications
- Heavy duty machinery access guards
- Fabricated steel doors and cover plates
- Industrial inspection hatches
- Manufacturing equipment with countersunk fixings

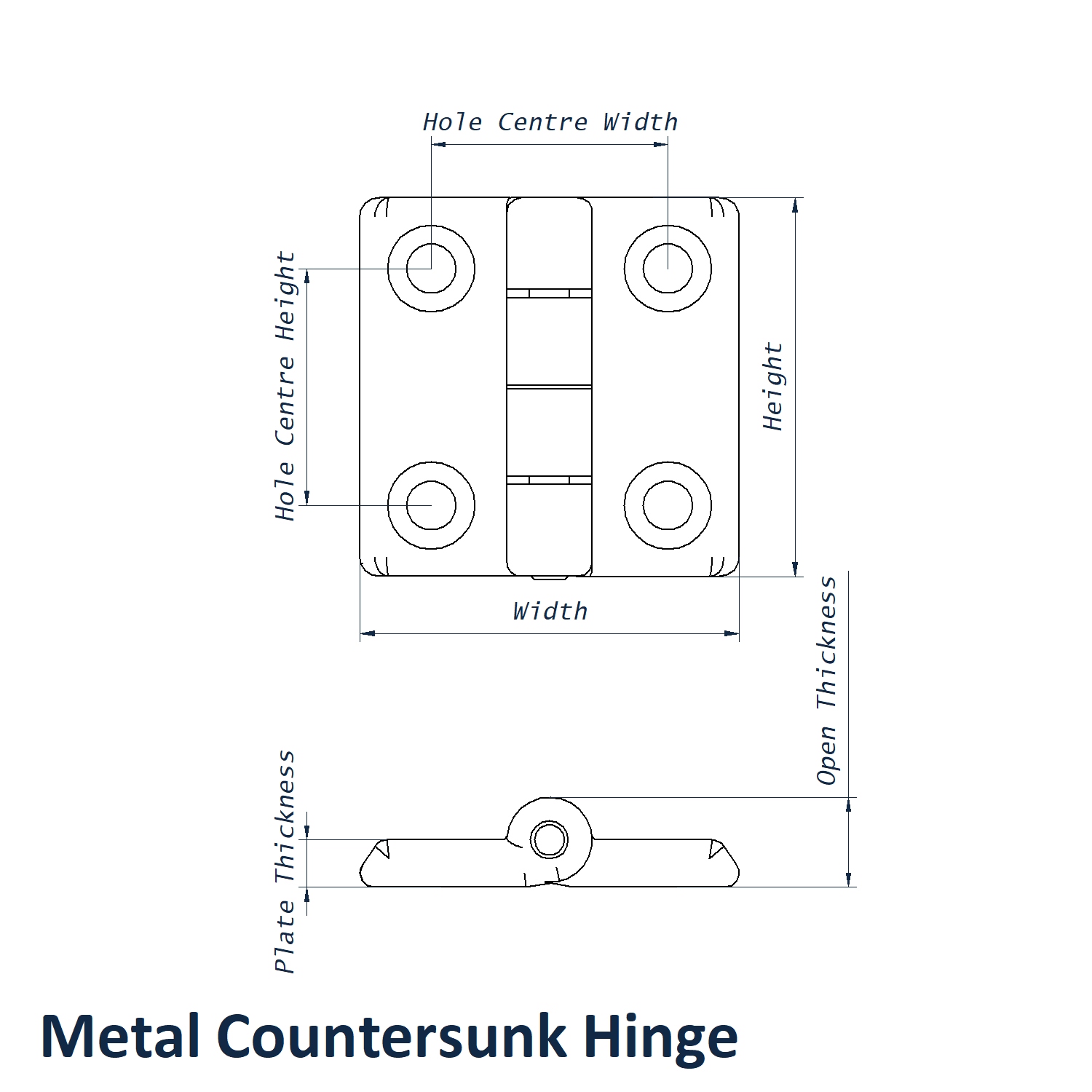

60mm x 60mm Metal Countersunk Hinge Dimensions
- Height: 60mm
- Open Width: 60mm
- Hole Centre Height: 36mm
- Hole Centre Width: 36mm
- Open Thickness: 15mm
- Panel Thickness: 8mm
- Hole Size: 8.4mm
- Colour: Black
- Material: Powder Coated Zinc & Nickel Plated Steel
Choosing The Right Metal Countersunk Hinge
Choose this larger square hinge when the panel needs more support than a compact hinge can provide, especially on machinery and fabricated metalwork.
View our full range of Metal Countersunk Hinges.
