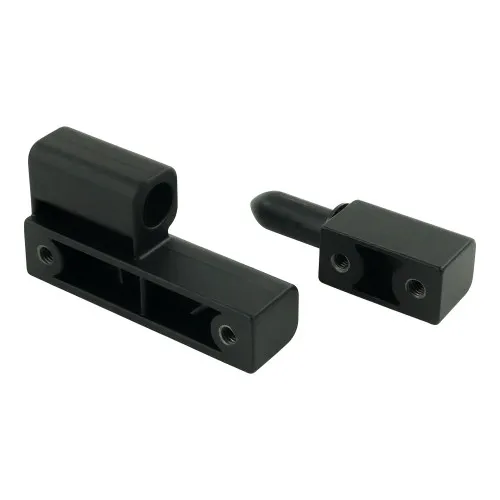

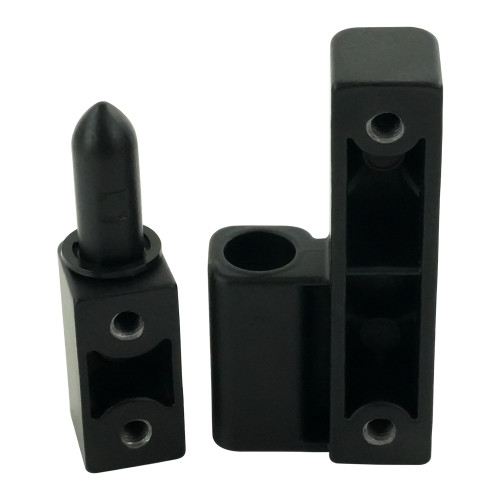

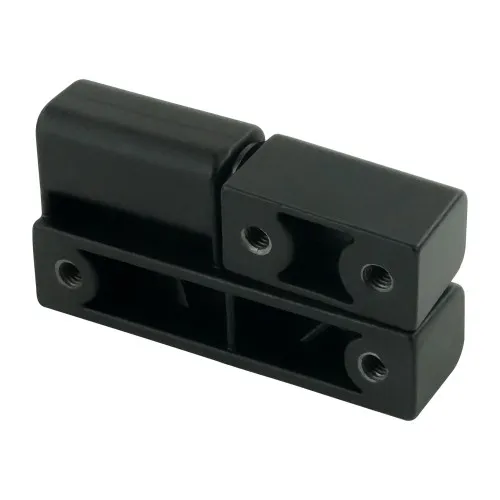

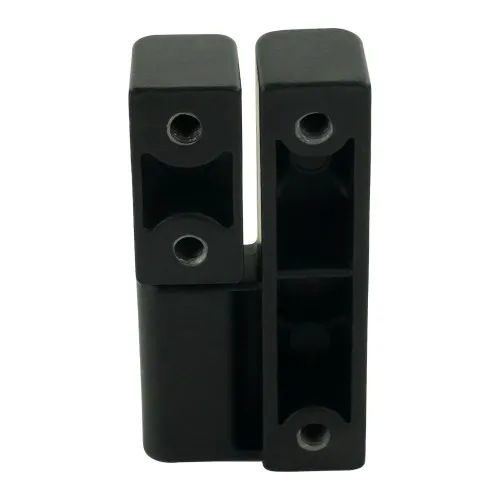

Metal Offset Lift-off Hinge - HIN121
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £6.60 | £7.92 |
| 25 - 49 | £6.47 | £7.76 |
| 50 - 99 | £6.34 | £7.61 |
| 100 + | £6.21 | £7.45 |
Product Stock

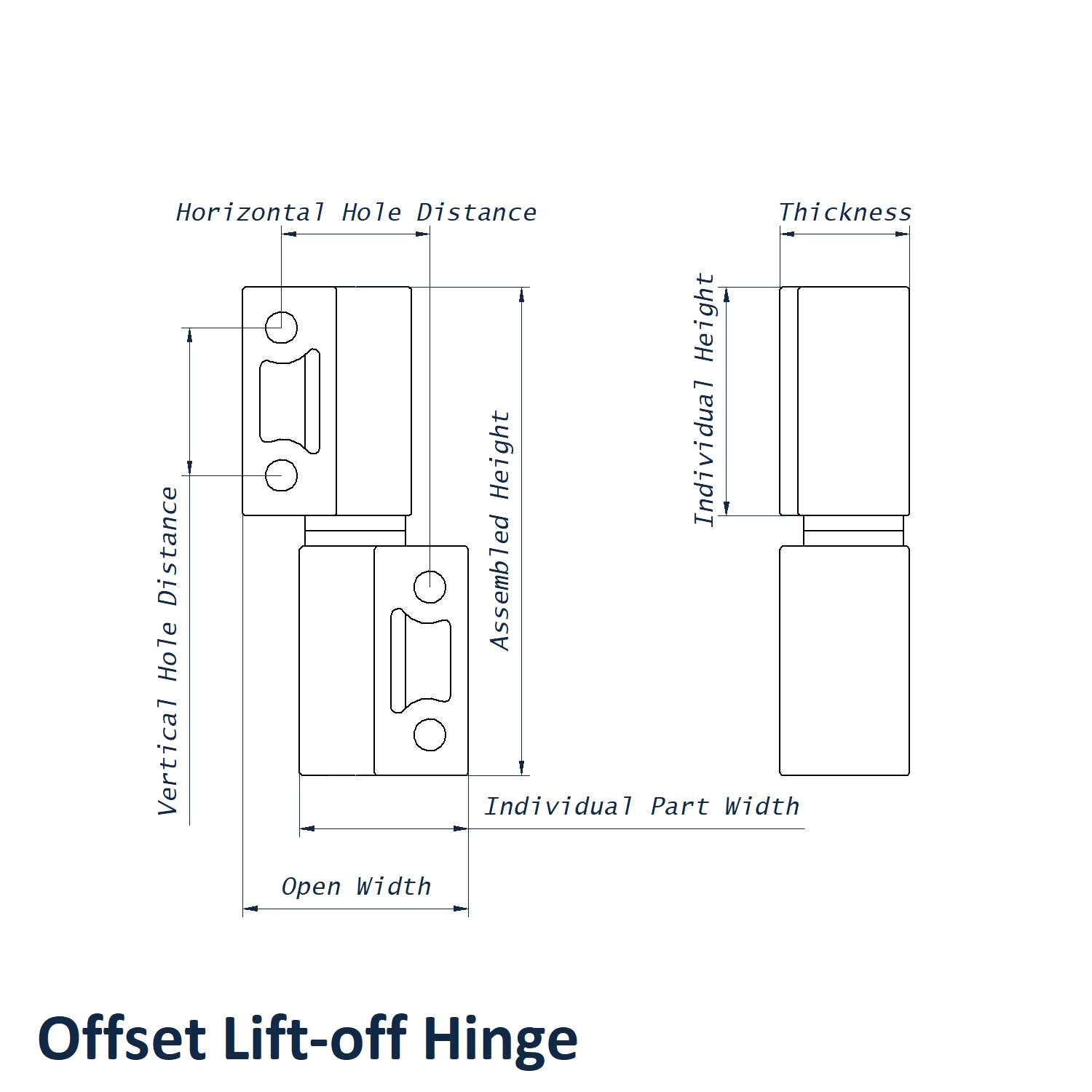

| Product Specifications | HIN121 |
|---|---|
| Chirality | Right Handed |
| Height | 64mm |
| Width | 32.5mm |
| Vertical Hole Distance | 51mm |
| Assembled Horizontal Hole Distance | 17mm |
| Male Height | 31mm |
| Thickness | 17.5mm |
| Offset Height | 31.5mm |
| Male Part Width | 15mm |
| Male Part Vertical Hole Distance | 19mm |
| Thread Size | M5 |
| Colour | Black |
| Material | Die-cast Zinc |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
Metal Offset Lift-off Hinges are used to install removable doors in industrial cabinets and enclosures. They can be installed in the same orientation for easy lifting and transportation or in opposing orientations to prevent door removal. The hinge is designed with threaded holes for a clean installation.

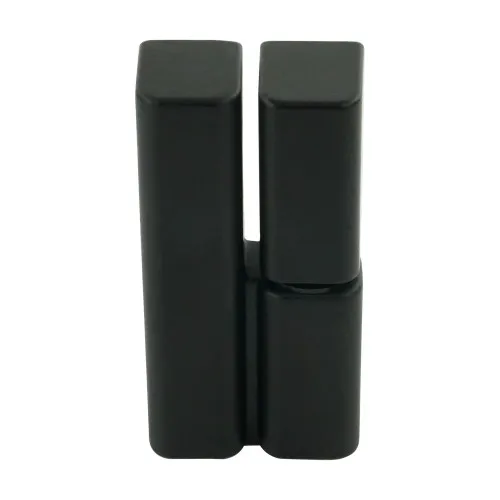

This Metal Offset Lift-off Hinge has an height of 64mm and width of 32.5mm. The mounting holes are threaded M5 and are spaced out by a height of 51mm and when assembled the holes have a horizontal distance of 17mm. It has a Right Handed Chiralty.
These hinges are commonly used in IT, HVAC, Telecoms, and manufacturing machinery for mounting doors, panels, and safety guards and are made from black powder coated die cast Zinc.
The Radial Load of this Hinge is 400N and the Axial Load is 1130N.
