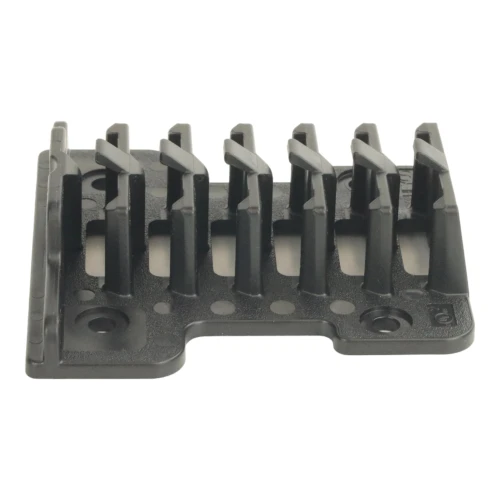

Multi Cable Clips - Screw Mount
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 24 | £2.00 | £2.40 |
| 25 - 49 | £1.84 | £2.21 |
| 50 - 99 | £1.69 | £2.03 |
| 100 - 499 | £1.56 | £1.87 |
| 500 + | £1.43 | £1.72 |
Product Stock

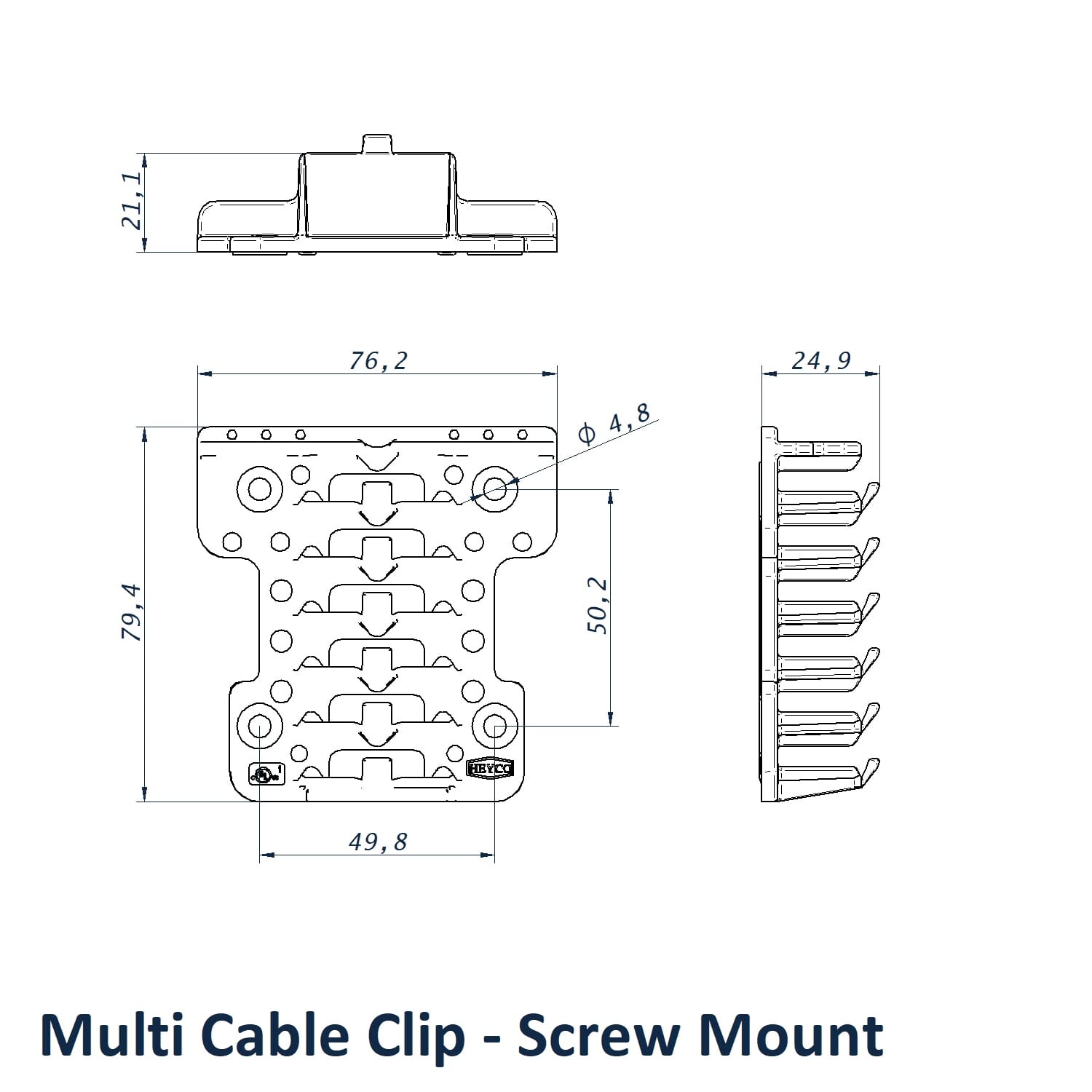

| Product Specifications | MCC002 |
|---|---|
| Height | 25.4mm |
| Width | 76.2mm |
| Fastening Type | 4.8mm Screw Mount |
| Wire Diameter Max Range | 5.2mm - 7.2mm |
| Max Number Of Cables | 12 |
| Body Material | Noryl |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

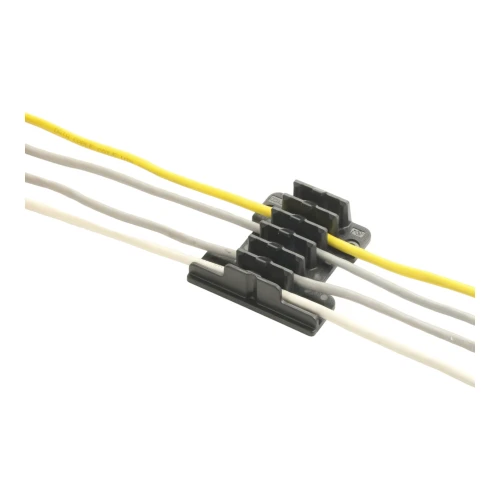

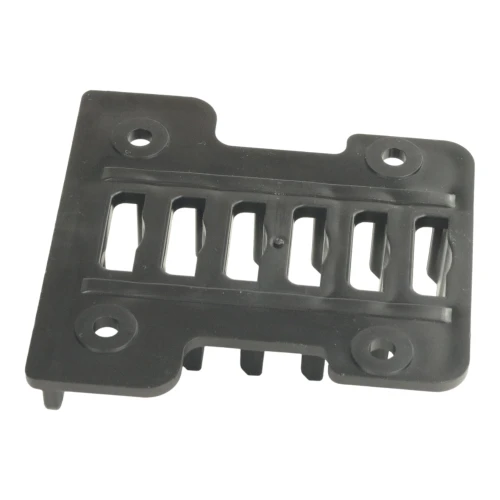

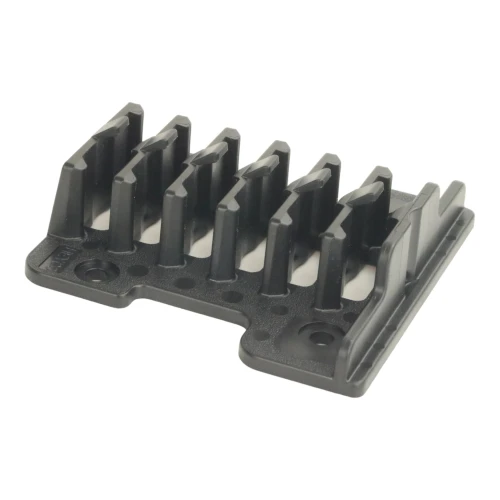

Multi Cable Clips – Screw Mount – 25.4mm x 76.2mm , Max of 12 Cables can be clipped | Vital Parts – MCC002
Multi Cable Clips, also known as Cable Clip Arrays, are designed for securely routing multiple cables in outdoor or technical environments. Manufactured from Noryl, a durable and water repellent material, these clips offer excellent electrical insulation properties and are ideal for use in solar installations or outdoor wiring systems. Unlike standard cable tidies, they are rated for UV stability and carry a V-0 flame rating, making them safe for prolonged exposure to sunlight and elevated temperatures.
What are Multi Cable Clips?
Multi Cable Clips are fixed mounting arrays that can hold and support up to 12 individual cables ranging between 5.2mm and 7.2mm in diameter. They are designed to prevent lateral cable movement and slippage while maintaining accessibility for future adjustments. With a maximum load capacity of 6kg, these clips are highly durable and suited for structured cable routing in demanding conditions.
Key Features:
- Made from Noryl – water repellent and electrically insulating
- UV stable and V-0 flame rated for safe outdoor use
- Houses up to 12 cables per clip (5.2mm to 7.2mm diameter)
- Supports a maximum cable load of 6kg
- Prevents cable slippage and lateral movement
Key Applications and Industries
- Solar Power Systems: Ideal for grouping and routing solar panel wiring
- Home and Garden Projects: Useful for outdoor electrical routing in domestic settings
- Telecommunications: Used for organising cable bundles with frequent adjustments
- Industrial Control Panels: Supports grouped wiring where separation is needed
- General Electrical Installations: For neat, accessible and secure cable management
Technical Specifications :
- Height : 25.4mm
- Width : 76.2mm
- Fastening Type : 4.8mm Screw Mount
- Material: Noryl thermoplastic
- UV rated: Yes
- Flame rating: V-0 (self-extinguishing)
- Cable capacity: Up to 12 cables (5.2mm – 7.2mm diameter)
- Maximum supported weight: 6kg
Installation Notes:
Multi Cable Clips are designed for screw or adhesive mounting onto flat surfaces. Ensure the mounting surface is clean and dry for optimal adhesion or stability. Clips can be reopened to allow for cable repositioning.
Why Choose Vital Parts?
- UK-based supplier with fast dispatch and expert support
- Bulk discounts and trade pricing for larger orders
- Extensive range of cable protection and management clips
If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
