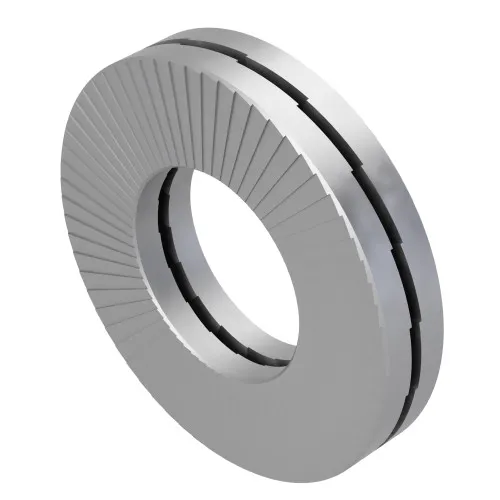

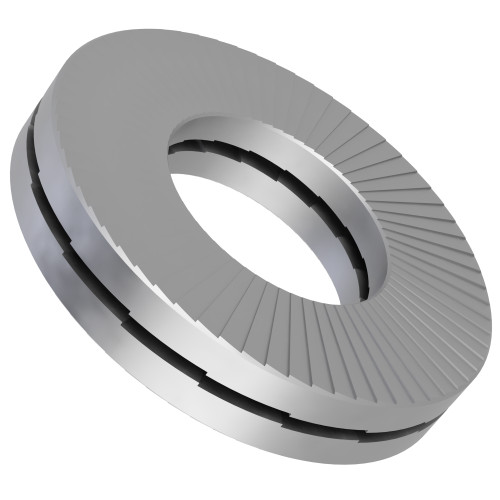

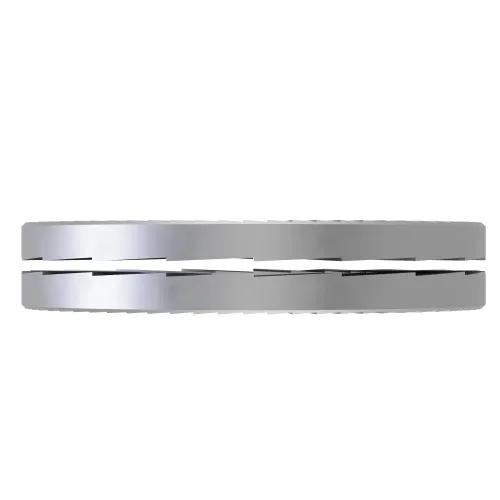

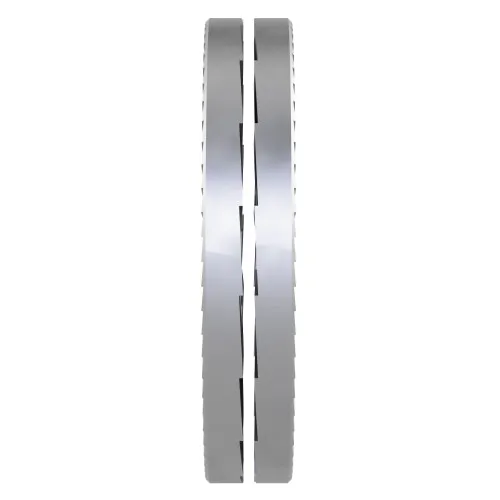

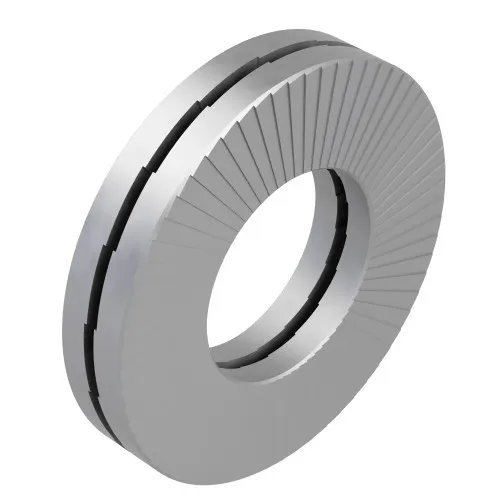

M90 x 130.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £287.14 | £344.57 |
| 100 - 499 | £255.23 | £306.28 |
| 500 - 999 | £241.80 | £290.16 |
| 1000 - 4999 | £229.71 | £275.65 |
| 5000 + | £208.82 | £250.59 |
£344.57 / each
Product Specification

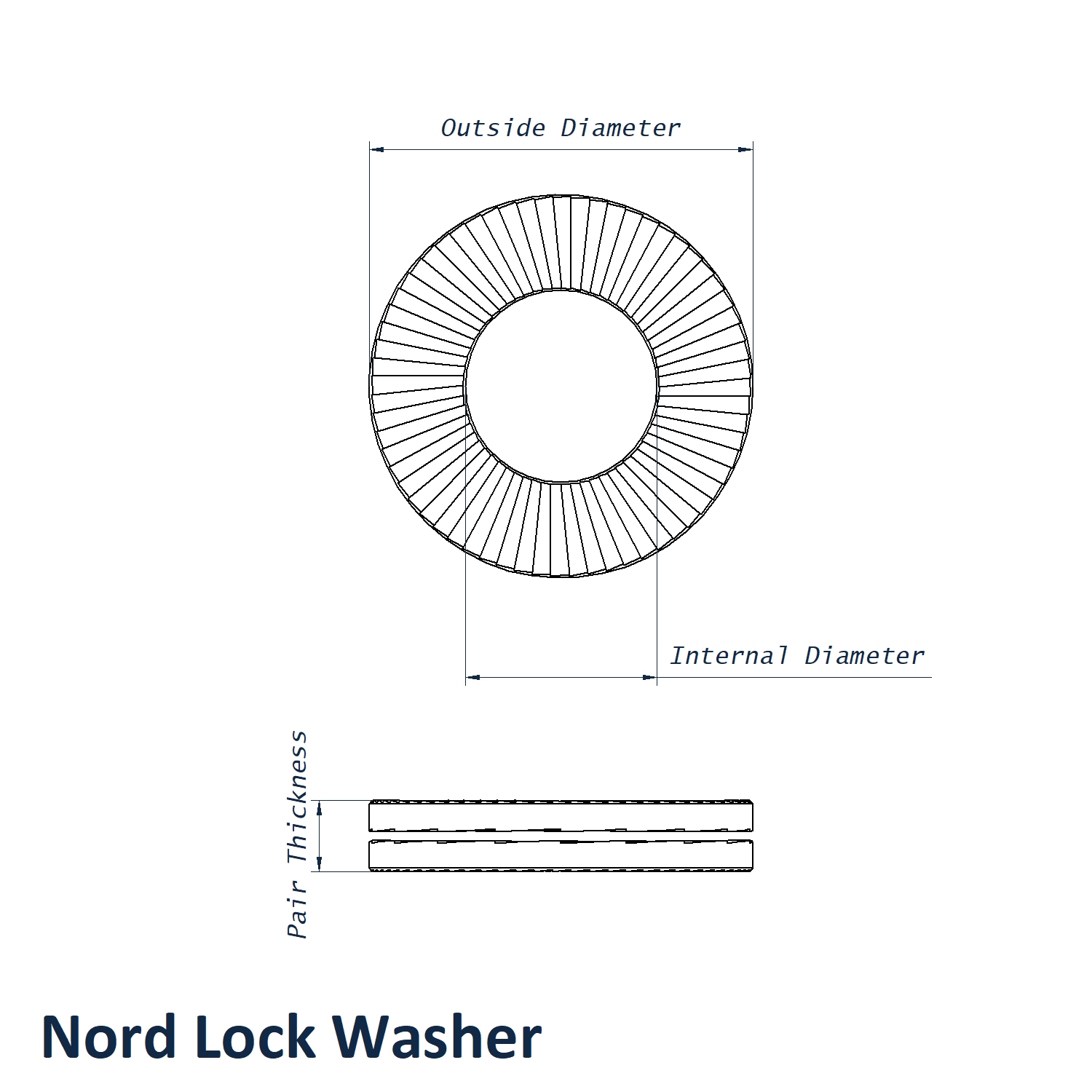

| Size | M90 |
| Internal Diameter | 92.4mm |
| Outside Diameter | 130.0mm |
| Thickness | 9.50mm |
| Material | Delta Protekt® Hardened Steel |
Frequently Bought Together
Total Price: £0.00
M90 x 130.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel | Vital Parts - NL-M90-130-DPT
This M90 x 130.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel provides a secure wedge-locking washer for assemblies where maintaining clamp load is essential. A 92.4mm internal diameter fits over the relevant M90 thread, while the 130.0mm outside diameter and 9.50mm thickness support correct seating. Made from through-hardened steel with a Delta Protekt® finish, it is suited to robust steel assemblies and demanding industrial service. This design helps keep the connection secure during vibration, cyclic loading and repeated start-stop operation.
What Are Nord-Lock® Washers?
Each Nord-Lock® assembly consists of a washer pair designed to control where movement can occur. The outer teeth lock to the contact surfaces and the inner cams act against one another. This tension-based principle provides dependable resistance to self-loosening in vibrating equipment.
Common Applications
- Mining Equipment: Helps secure high-load connections exposed to shock, vibration and abrasive operating conditions.
- Heavy Plant: Supports critical bolted joints on excavators, crushers and large production machinery.
- Structural Machinery: Helps protect substantial steel assemblies and fabricated equipment from rotational loosening.
- Large Drives: Useful on gearboxes, couplings and transmission equipment where clamp load must be maintained.
Technical Specifications:
- Size: M90
- Internal Diameter: 92.4mm
- Outside Diameter: 130.0mm
- Thickness: 9.50mm
- Material: Delta Protekt® Hardened Steel
Complete Your Assembly
Pair this product with suitable items from our bolts and screws, nuts and broader washer range.
Need guidance with washer selection or a bulk requirement? Our team can help you specify a suitable option for your application on 01233 713581.
