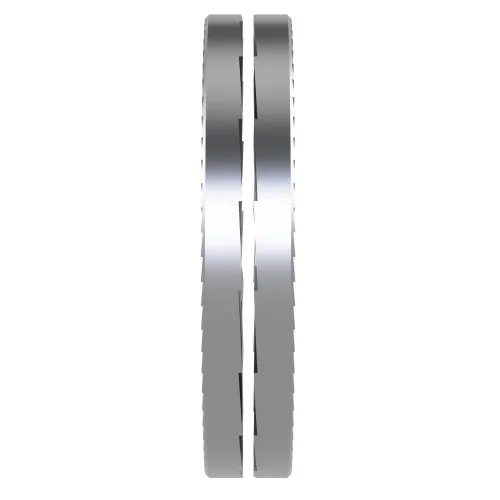

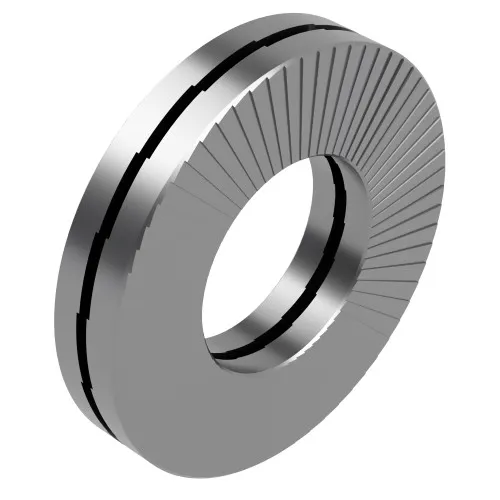

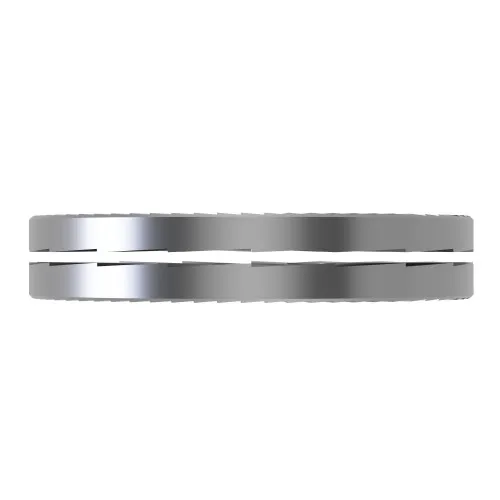

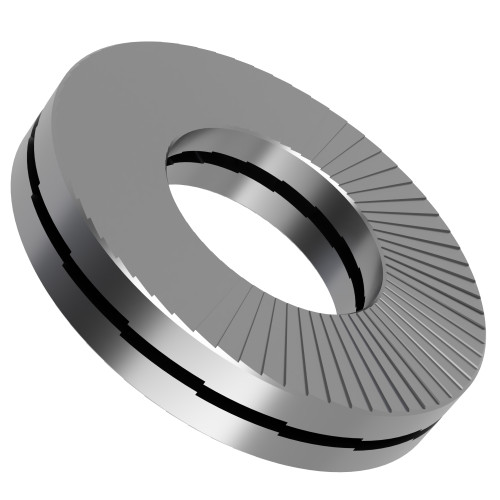

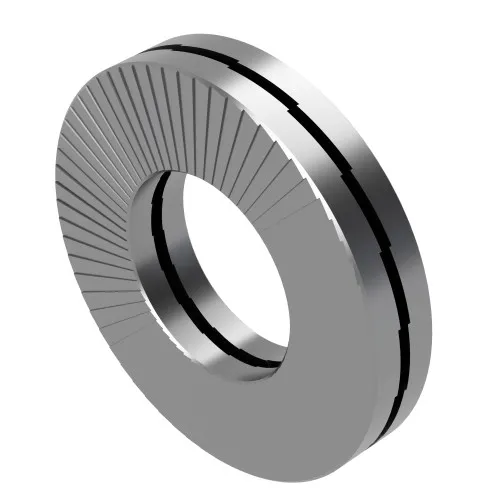

M22 x 34.5mm Nord-Lock® Washer | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £10.90 | £13.08 |
| 100 - 499 | £9.68 | £11.62 |
| 500 - 999 | £9.18 | £11.01 |
| 1000 - 4999 | £8.72 | £10.46 |
| 5000 + | £7.92 | £9.51 |
£13.08 / each

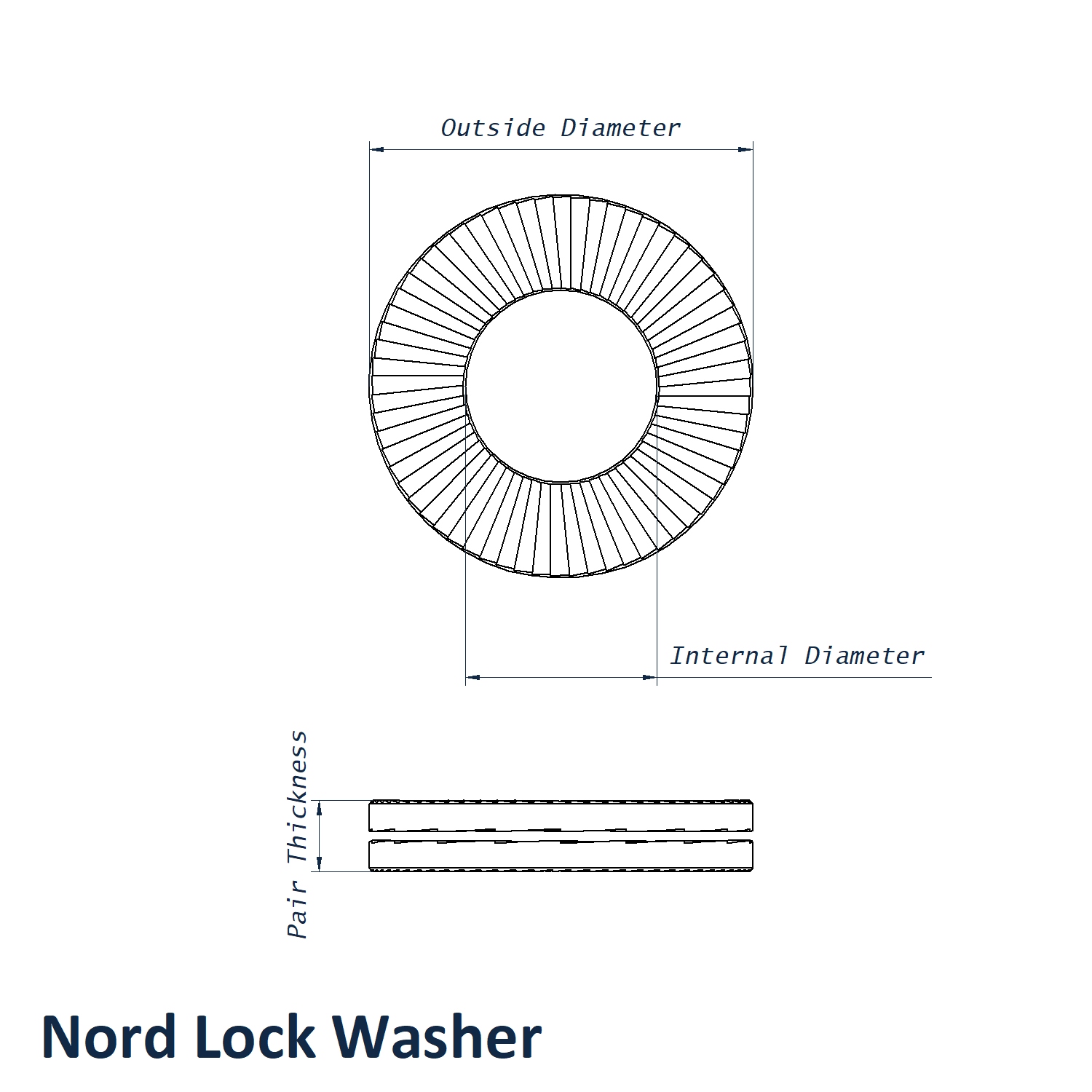

Product Specification
| Size | M22 |
| Internal Diameter | 23.4mm |
| Outside Diameter | 34.5mm |
| Thickness | 3.20mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M22 x 34.5mm Nord-Lock® Washer | A4 Stainless Steel | Vital Parts - NL-M22-34.5-A4
Where conventional washers may not provide sufficient security, this M22 x 34.5mm Nord-Lock® Washer | A4 Stainless Steel delivers a purpose-designed anti-loosening washer. Accurate sizing of 23.4mm ID x 34.5mm OD x 3.20mm thick helps ensure a controlled fit within the joint. A4 stainless steel construction makes this option suitable for general outdoor, processing and stainless fabrication applications. The wedge-locking action supports joint reliability without relying solely on friction between the threads.
What Are Nord-Lock® Washers?
Nord-Lock® wedge-locking washers are designed to sit beneath a bolt head or nut as a paired system. Their external serrations grip the joint surfaces, while the opposing cam faces allow movement only across the wedge profile. This geometry resists rotational loosening under vibration and dynamic loading.
Common Applications
- Pumping Equipment: Useful for retaining clamp load on sizeable stainless pump, pipework and drive assemblies.
- Industrial Infrastructure: Helps protect large corrosion-resistant bolted joints exposed to vibration and cyclic operation.
- Stainless Process Plant: Helps secure substantial bolted connections on frames, vessels and support equipment.
- Outdoor Machinery: Provides corrosion-resistant joint security on heavy exposed equipment and fabricated assemblies.
Technical Specifications:
- Size: M22
- Internal Diameter: 23.4mm
- Outside Diameter: 34.5mm
- Thickness: 3.20mm
- Material: A4 Stainless Steel
Compatible Fastener Ranges
View our full selection of industrial washers alongside compatible bolts and screws and threaded nuts.
For help confirming the correct Nord-Lock® washer size or discussing larger order quantities, contact our technical team on 01233 713581.
