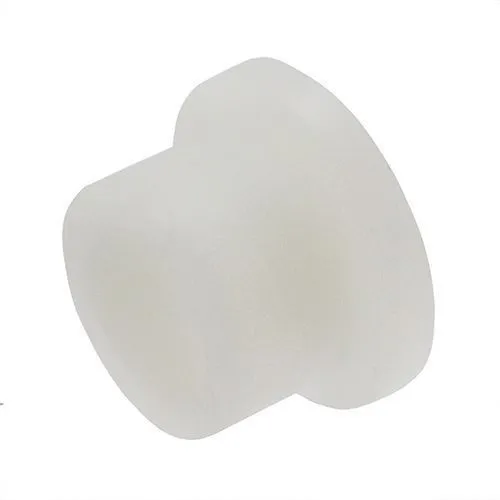

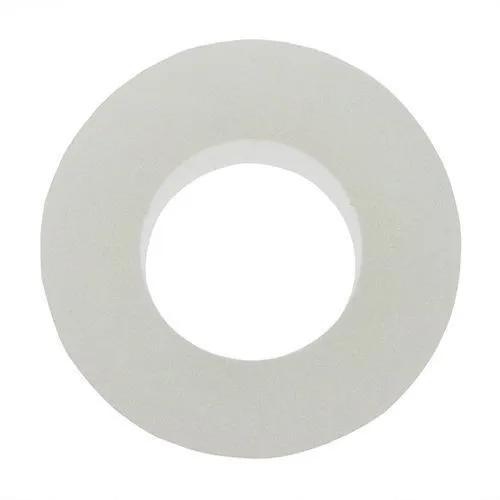

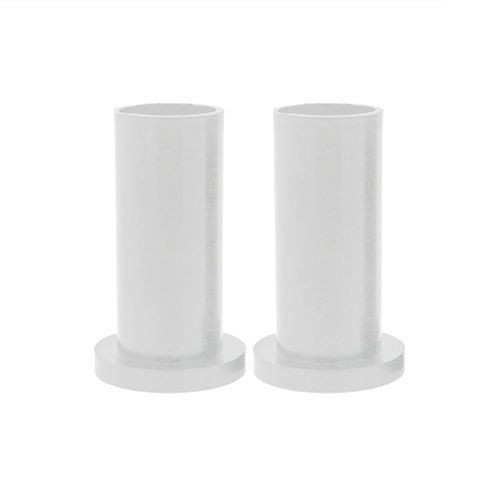

16.0 x 20 mm Natural Nylon Flanged Bushing
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £1.22 | £1.46 |
| 25 - 49 | £1.09 | £1.31 |
| 50 - 99 | £0.96 | £1.15 |
| 100 - 249 | £0.84 | £1.01 |
| 250 - 499 | £0.74 | £0.89 |
| 500 - 999 | £0.65 | £0.78 |
| 1000 + | £0.57 | £0.69 |
Product Specification
| Internal Diameter | 16.0mm |
| Outside Diameter | 21.5mm |
| Flange Diameter | 27.1mm |
| Shaft Length | 16.0mm |
| Colour | Natural |
| Flange Thickness | 3.0mm |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00
16.0mm ID x 21.5mm OD x 16.0mm Shaft Length x 27.1mm Flange Flanged Nylon Bush | Natural Nylon
A practical choice for commercial equipment, this 16.0mm ID insulation sleeve provides a flanged sleeve for supporting spacing and insulation in electrical or mechanical installations. Its 16.0mm bore, 21.5mm outside diameter, 16.0mm shaft length and 27.1mm flange allow the bush to sit neatly in a prepared hole.
The non-metallic body can support quieter movement and reduced abrasion in low-load hinge, linkage or access panel work. It can be used as one of the range's plastic shoulder washers, helping create spacing without introducing a conductive metal part.
What Are Flanged Nylon Bushes?
Plastic bushings are used where a non-metallic bearing surface, spacer or insulating sleeve is needed around a screw, shaft, cable or pin. In this size, the 16.0mm internal diameter supports the pass-through or fixing, while the 27.1mm flange helps cover the surrounding face of the hole.
Common Applications
- Maintenance spares for worn bushes
- Light machinery linkages
- Removable panel fixing points
- Workshop-made brackets

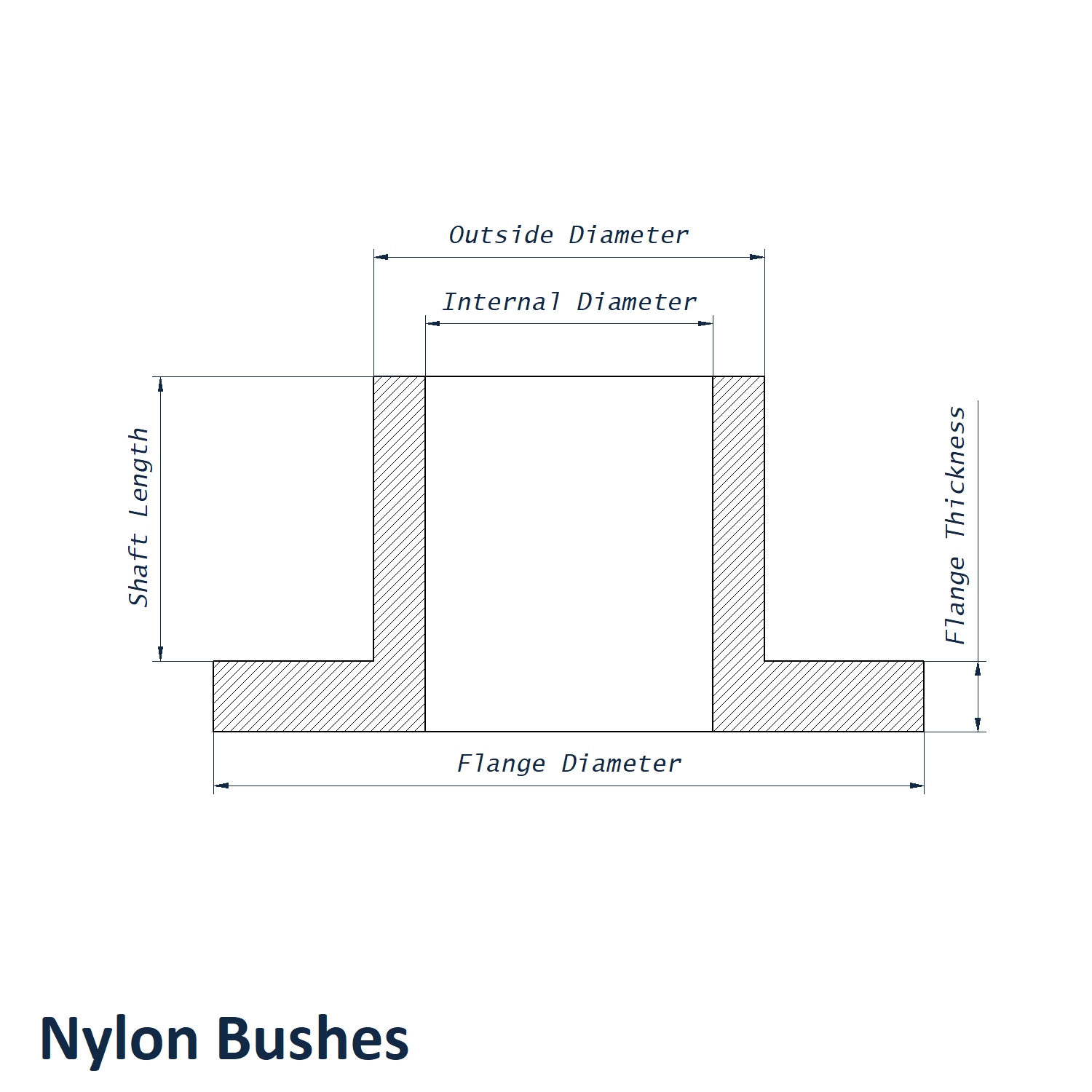

16.0mm ID x 21.5mm OD x 16.0mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 16.0mm
- Outside Diameter: 21.5mm
- Flange Diameter: 27.1mm
- Shaft Length: 16.0mm
- Flange Thickness: 3.0mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
For projects using several hole sizes, the full range makes it easier to compare flanged bushes by bore size, outside diameter and flange diameter. View our full Nylon Bushes - Natural range.
Product Support and Trade Orders
Need support choosing between nylon bushes or checking a batch order? Call 01233 713581 and our team can help with dimensions, fitment questions and business account enquiries.
