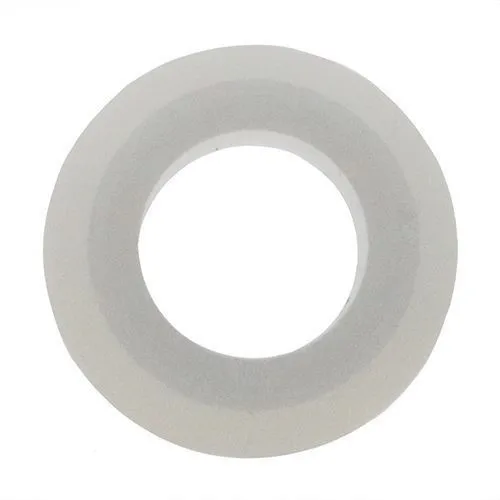

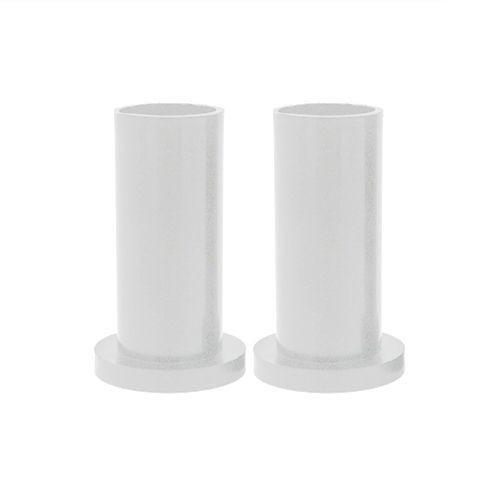

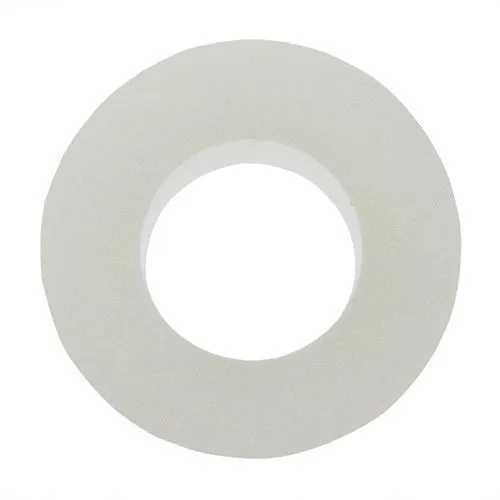

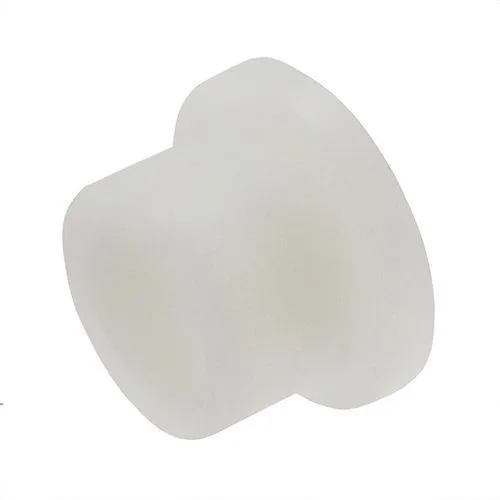

4.3 x 10 mm Natural Nylon Flanged Bushing
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.19 | £0.23 |
| 25 - 49 | £0.17 | £0.21 |
| 50 - 99 | £0.15 | £0.18 |
| 100 - 249 | £0.13 | £0.16 |
| 250 - 499 | £0.12 | £0.14 |
| 500 - 999 | £0.10 | £0.12 |
| 1000 + | £0.09 | £0.11 |
Product Specification
| Internal Diameter | 4.3mm |
| Outside Diameter | 6.7mm |
| Flange Diameter | 12.2mm |
| Shaft Length | 8.7mm |
| Colour | Natural |
| Flange Thickness | 1.3mm |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00
4.3mm ID x 6.7mm OD x 8.7mm Shaft Length x 12.2mm Flange Flanged Nylon Bush | Natural Nylon
Suitable for supporting spacing and insulation in electrical or mechanical installations, this 4.3mm ID panel spacing bush has a 4.3mm internal diameter, 6.7mm outside diameter, 8.7mm shaft length and 12.2mm flange diameter. The natural finish and polyamide nylon body make it suitable for commercial equipment where a neat, non-metallic spacing component is required.
The plain cylindrical shank supports straightforward insertion into a prepared hole, with the flange helping retain the visible face neatly. In use, it works well as a flanged bushes where the flange needs to provide a defined stop and a cleaner external face.
What Are Flanged Nylon Bushes?
Plastic bushings are used where a non-metallic bearing surface, spacer or insulating sleeve is needed around a screw, shaft, cable or pin. In this size, the 4.3mm internal diameter supports the pass-through or fixing, while the 12.2mm flange helps cover the surrounding face of the hole.
Common Applications
- Vehicle body trim fixings
- Trailer panel spacers
- Agricultural equipment covers
- Marine instrument panel insulation
4.3mm ID x 6.7mm OD x 8.7mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 4.3mm
- Outside Diameter: 6.7mm
- Flange Diameter: 12.2mm
- Shaft Length: 8.7mm
- Flange Thickness: 1.3mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
Use the full range page to compare internal diameter, outside diameter, flange diameter and shaft length before selecting a bush for your panel or fixing assembly. View our full Nylon Bushes - Natural range.
