Flanged Nylon Bushes - NYB028

Product code: NYB028
View All Specifications

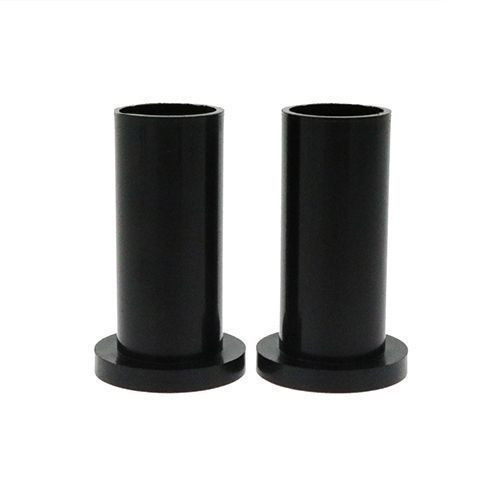

Flanged Nylon Bushes - 3.5mm ID x 5.1mm OD x 7mm Flange
Flanged Nylon Bushes - 3.5mm ID x 5.1mm OD x 7mm Flange
Flanged Nylon Bushes - 3.5mm ID x 5.1mm OD x 7mm Flange
Flanged Nylon Bushes - 3.5mm ID x 5.1mm OD x 7mm Flange
Flanged Nylon Bushes - 3.5mm ID x 5.1mm OD x 7mm Flange
Flanged Nylon Bushes - 3.5mm ID x 5.1mm OD x 7mm Flange
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 1 £0.31 £0.37
2 - 999 £0.28 £0.34
1000 - 4999 £0.26 £0.31
5000 + £0.23 £0.28

£0.37 / each


Up to 338 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
338 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Internal Diameter 3.5mm
Outside Diameter 5.1mm
Flange Diameter 7.0mm
Shaft Length 2.2mm
Colour Black
Flange Thickness N/A
Material Polyamide

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

3.5mm ID x 5.1mm OD Nylon Flanged Bushing | 2.2mm Shaft | Black

For applications involving black instrument panels and control equipment, this Black Nylon Shoulder Bushing provides a lightweight insulating interface with a 2.2mm shaft length and 7.0mm flange diameter. The component can support screw insulation, PCB spacing and vibration reduction in correctly sized mounting holes.

What Are Nylon Flanged Bushes?

Also known as screw insulators or shoulder washers, Nylon Flanged Bushes combine a sleeve with an integral flange. The non-conductive Nylon 6/6 material helps prevent direct electrical contact while the flange can maintain spacing between components and protect the edge of the mounting hole.

Common Applications

  • PCB Spacing: Helps maintain separation between circuit boards, panels and supporting components where a flanged spacer is suitable.
  • Vibration Damping: Helps reduce direct contact and absorb light vibration or movement between assembled components.
  • Component Spacing: Maintains a defined gap between compatible parts where the flanged shoulder provides a controlled bearing surface.
  • Light Mechanical Assemblies: Acts as a low-mass sleeve or shoulder spacer around compatible shafts, pins and fasteners.

3.5mm ID Nylon Flanged Bushing Dimensions

  • Internal Diameter: 3.5mm
  • Outside Diameter: 5.1mm
  • Flange Diameter: 7.0mm
  • Shaft Length: 2.2mm
  • Colour: Black
  • Material: Polyamide

Key Benefits

  • Suitable as a screw insulator, shoulder washer or flanged spacer in correctly sized assemblies.
  • 5.1mm outside diameter provides the main sleeve diameter for the mounting hole.
  • Flanged profile provides a defined bearing face while the sleeve passes through the mounting hole.
  • Nylon construction can help damp light vibration, movement and shock between assembled components.

Explore the wider Nylon Flanged Bushes range for different bore sizes, body diameters and shaft lengths. For product selection assistance, contact our technical sales team on 01233 713581.
