Nylon P Clips - PCL002
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.12 | £0.14 |
| 2 - 99 | £0.12 | £0.14 |
| 100 - 249 | £0.08 | £0.10 |
| 250 - 999 | £0.05 | £0.06 |
| 1000 - 2499 | £0.04 | £0.05 |
| 2500 + | £0.03 | £0.03 |
Product Specification
| Wire Diameter (Metric) | 3.18mm |
| Wire Diameter (Imperial) | 1/8" |
| Hole Size | 4.60mm |
| Wire To Screw | 8.0mm |
| Length | 16.9mm |
| Material | Nylon |
| Material Thickness | 1.05mm |
| Width | 9.6mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00

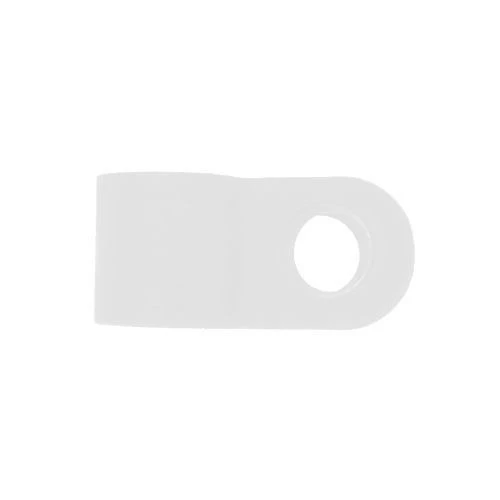

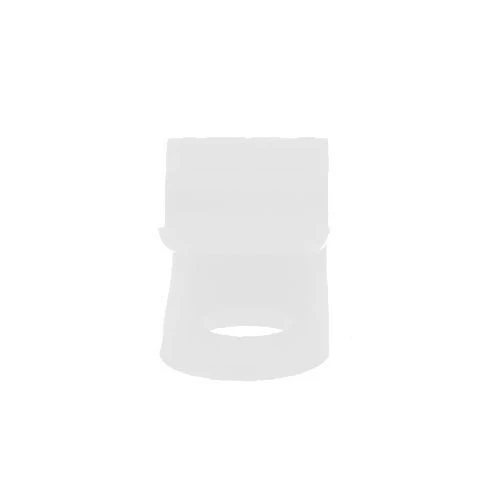

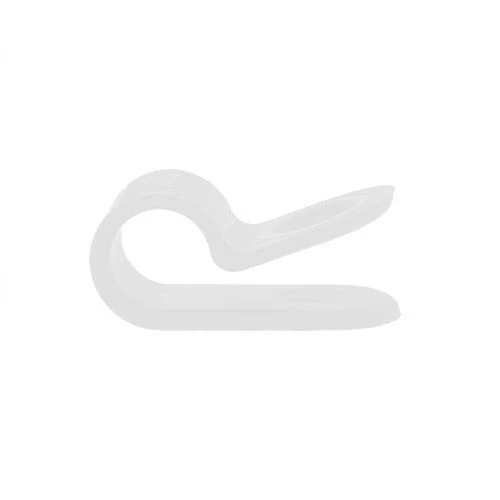

3.18mm (1/8") Natural Nylon P Clip | 4.60mm Hole Size | 16.9mm Length
These 3.18mm (1/8") Natural Nylon P Clip Nylon P Clips are designed for compact control wiring inside small electrical enclosures. The 3.18mm (1/8") wire diameter helps match the clip to the cable, wire or hose being retained, making this a useful miniature nylon P clip for tidy and secure routing.
Made from natural Nylon, this screw mount P clip gives a non-conductive fixing method for cable, wire or light hose runs. The 4.60mm fixing hole and 8.0mm wire-to-screw measurement help installers place the clip accurately against panels, brackets or equipment frames.
Common Applications
- Control panel wiring
- Low voltage signal cables
- Small instrument housings
- Prototype electronics builds

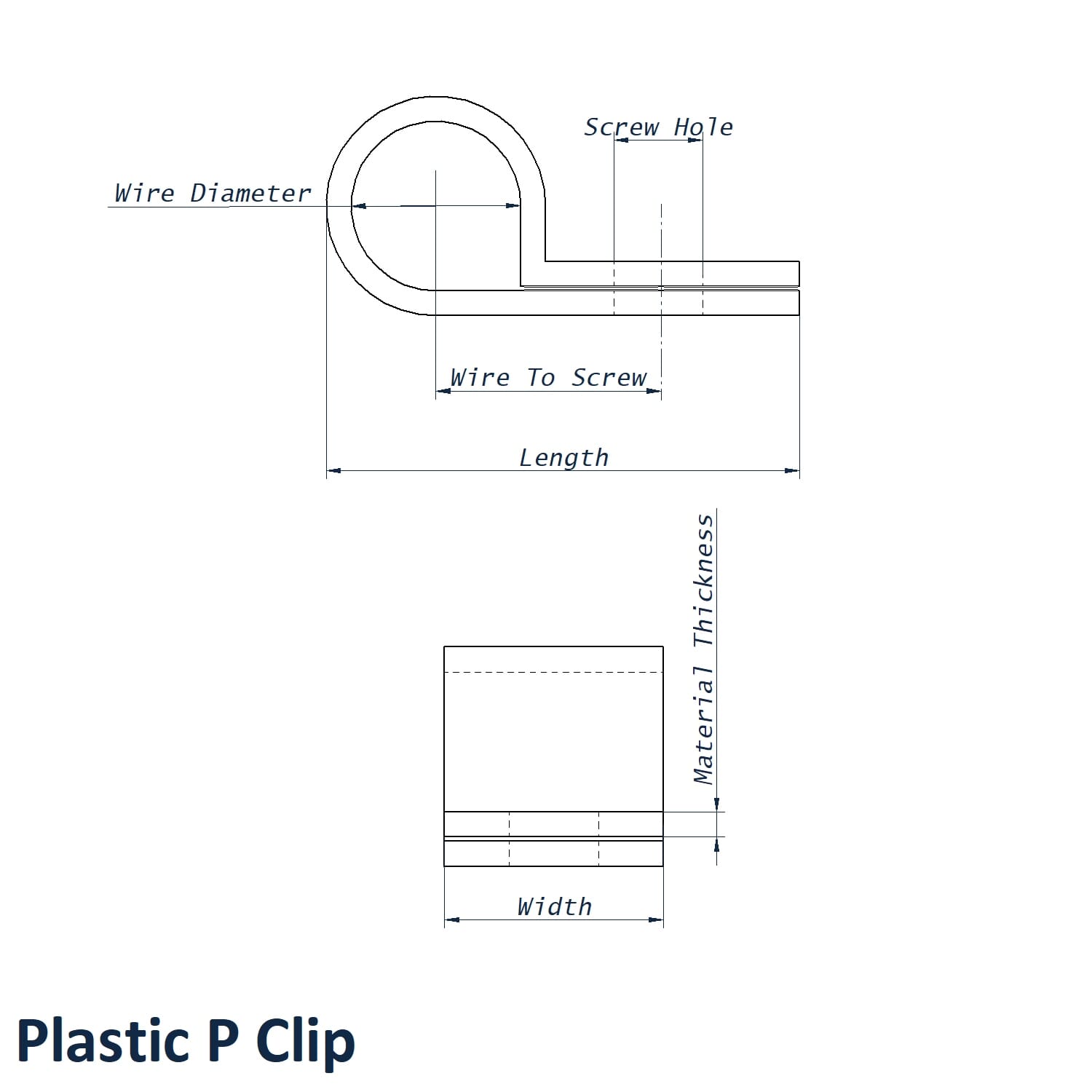

3.18mm Natural Nylon P Clip Dimensions
- Wire Diameter (Metric): 3.18mm
- Wire Diameter (Imperial): 1/8"
- Hole Size: 4.60mm
- Wire To Screw: 8.0mm
- Material Thickness: 1.05mm
- Length: 16.9mm
- Width: 9.6mm
- Material: Nylon
- Colour: Natural
Choosing The Right Nylon P Clip
Check the cable or hose diameter against the listed size before buying. A correctly matched P clip should hold the routed line firmly without crushing the insulation or restricting movement needed during normal service.
View our full Nylon P Clips range or browse our wider Cable Management collection.
Need help or buying in bulk? Call 01233 713581.
