Heavy Duty P Clips - PCL039
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.14 | £0.17 |
| 100 - 249 | £0.12 | £0.14 |
| 250 - 999 | £0.10 | £0.12 |
| 1000 - 2499 | £0.08 | £0.10 |
| 2500 + | £0.07 | £0.08 |
£0.17 / each
.png)
Product Specification
| Wire Diameter (Metric) | 30.16mm |
| Wire Diameter (Imperial) | 19/16" |
| Hole Size | 5.40mm |
| Wire To Screw | 25.4mm |
| Length | 47.0mm |
| Material | Nylon |
| Material Thickness | 1.50mm |
| Width | 12.0mm |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00

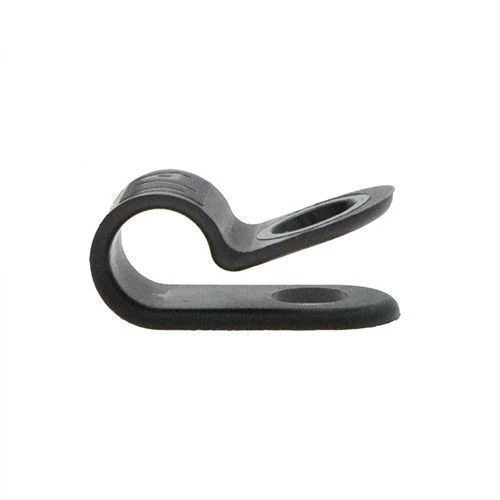

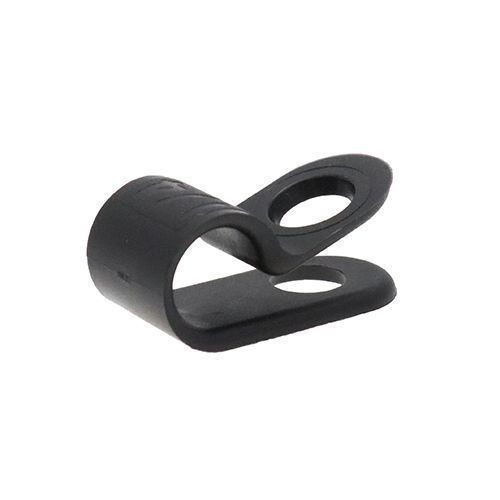

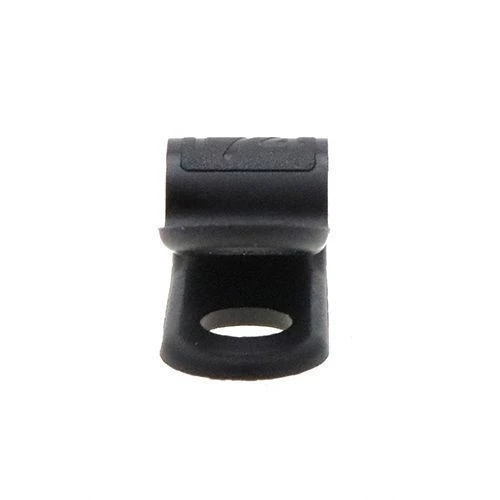

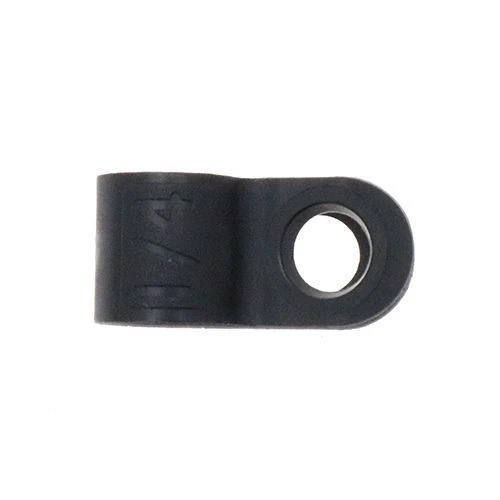

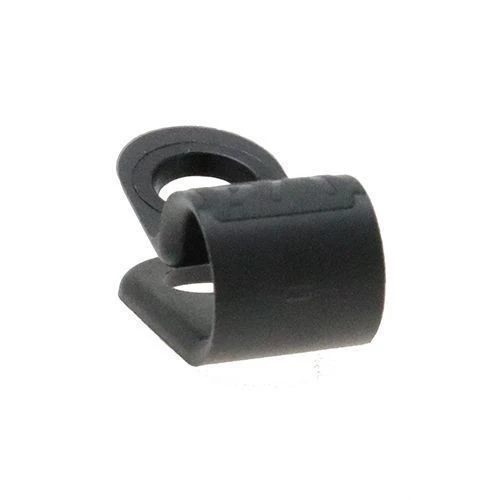

30.16mm (19/16") Black Nylon P Clip | 5.40mm Hole Size | 47.0mm Length
These 30.16mm (19/16") Black Nylon P Clip Nylon P Clips are designed for wide black cable runs and hose routes on machinery frames. The 30.16mm (19/16") wire diameter helps match the clip to the cable, wire or hose being retained, making this a useful black oversized P clip for tidy and secure routing.
Made from black Nylon, this screw mount P clip gives a non-conductive fixing method for cable, wire or light hose runs. The 5.40mm fixing hole and 25.4mm wire-to-screw measurement help installers place the clip accurately against panels, brackets or equipment frames.
Common Applications
- Wide cable runs
- Hose support frames
- Machine servicing
- Cable retrofit work

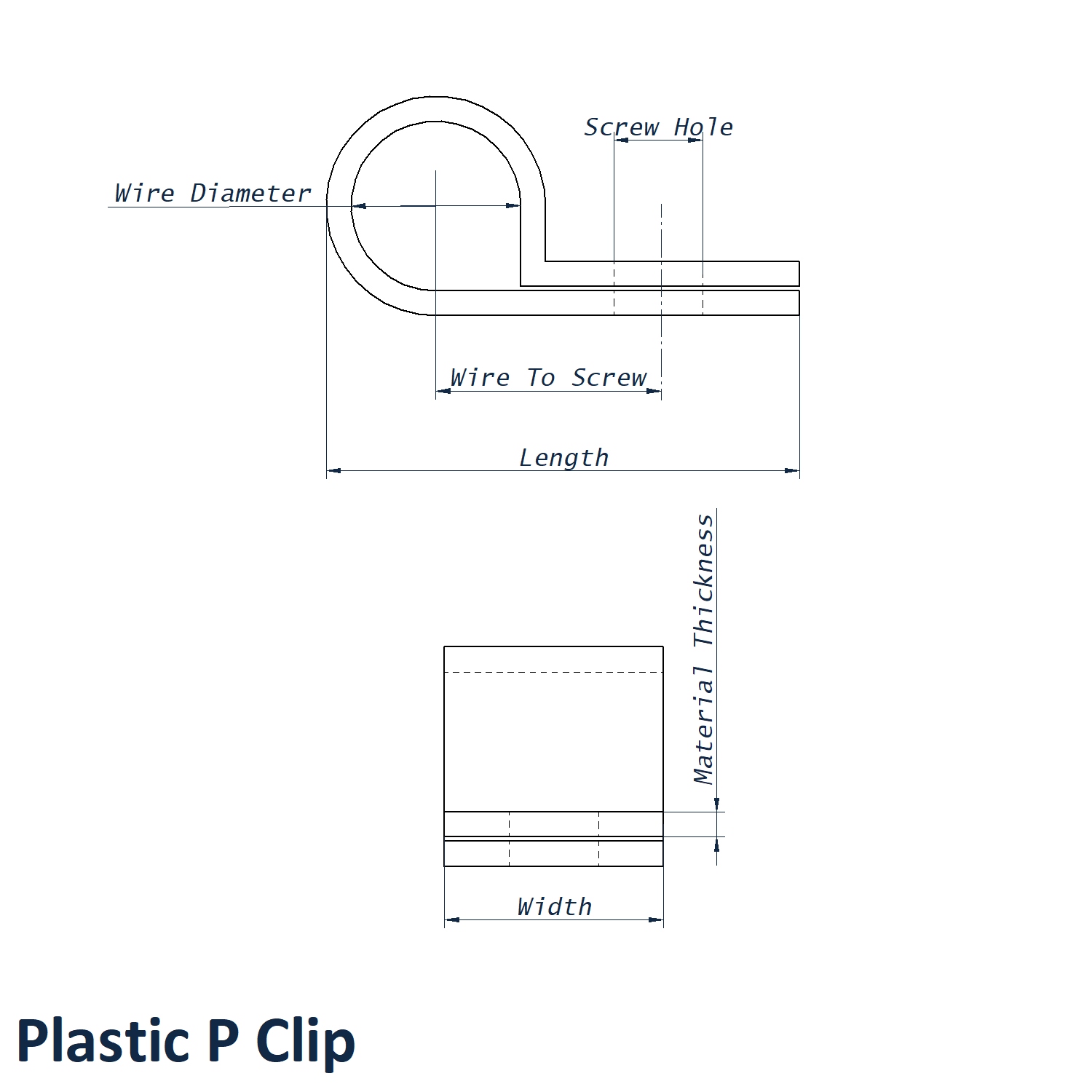

30.16mm Black Nylon P Clip Dimensions
- Wire Diameter (Metric): 30.16mm
- Wire Diameter (Imperial): 19/16"
- Hole Size: 5.40mm
- Wire To Screw: 25.4mm
- Material Thickness: 1.50mm
- Length: 47.0mm
- Width: 12.0mm
- Material: Nylon
- Colour: Black
Choosing The Right Nylon P Clip
Check the cable or hose diameter against the listed size before buying. A correctly matched P clip should hold the routed line firmly without crushing the insulation or restricting movement needed during normal service.
