13mm Split Cable Bushing - 1.5mm Panel (9.2mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.29 | £0.35 |
| 250 - 499 | £0.25 | £0.30 |
| 500 - 999 | £0.20 | £0.24 |
| 1000 - 2499 | £0.15 | £0.18 |
| 2500 - 4999 | £0.13 | £0.16 |
| 5000 + | £0.11 | £0.13 |
Product Specification
| To Fit Hole Diameter | 13.0mm |
| Max Panel Thickness | 1.5mm |
| Max Cable Diameter | 9.2mm |
| Head Diameter | 16.2mm |
| Length | 5.3mm |
Frequently Bought Together
Total Price: £0.00

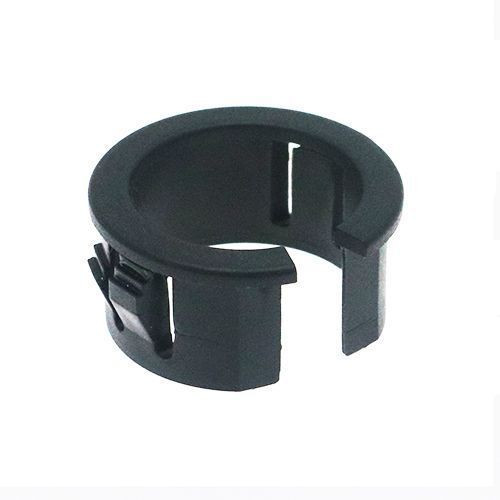

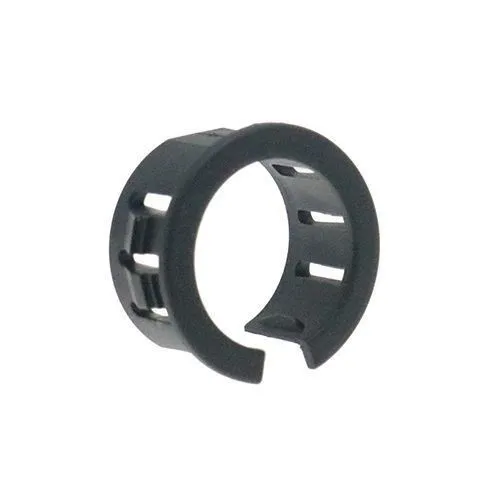

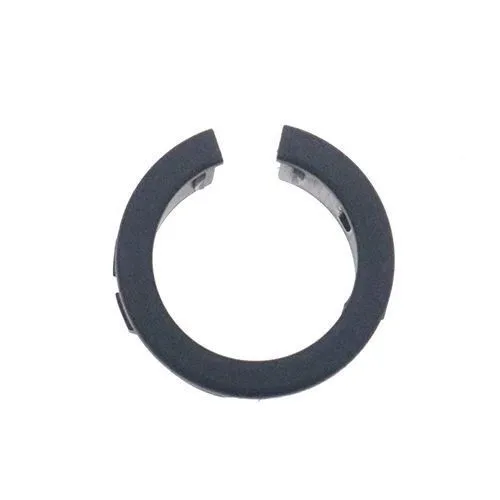

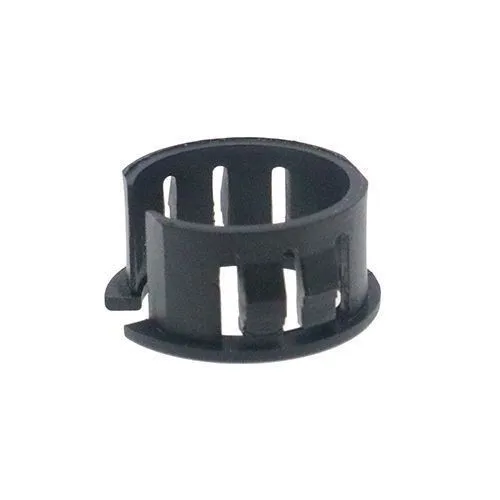

13mm Open/Closed Bush | 9.2mm Max Cable | Black Nylon
This black Nylon open/closed cable bush is built for 13mm hole sizes and helps route wiring neatly through equipment panels, guards and cabinet walls.
By closing around the cable and locking into the hole, the bushing helps reduce rubbing, edge wear and movement where wiring passes through an enclosure wall. This 13mm cable entry bush is suited to HVAC controls, with open closed bushing wording fitting its use as a practical cable management part rather than a standard blanking plug.
What Are Open/Closed Bushes?
Open/Closed Bushes are split cable bushings designed to protect wires and cables as they pass through panel holes. They open around the cable, then close and snap into the mounting hole to create a safer insulated edge.
Common Applications
- Manufacturing line control panels
- Sensor cable routing through protective guards
- Communication equipment panel holes
- Electrical installation work where cables remain connected

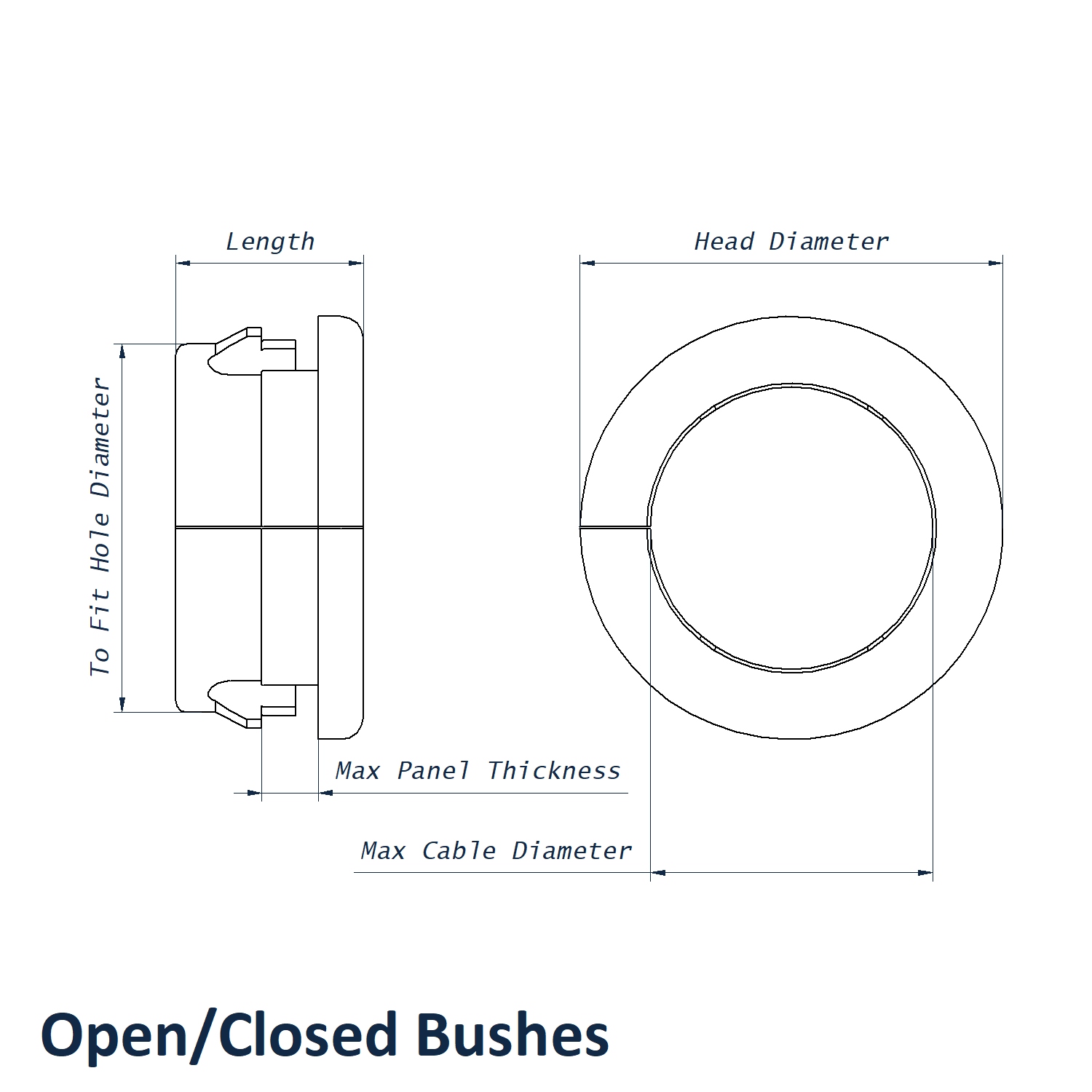

13mm x 5.3mm Black Open/Closed Bush Dimensions
- To Fit Hole Diameter: 13.0mm
- Max Panel Thickness: 1.5mm
- Max Cable Diameter: 9.2mm
- Head Diameter: 16.2mm
- Length: 5.3mm
- Material: Nylon
- Colour: Black
Open/Closed Bush Range
View our full Open/Closed Bushes range for split cable bushing options across different hole diameters, cable sizes and panel thicknesses.
Product Support and Trade Orders
For help matching an open/closed bush to a panel hole, cable diameter or enclosure thickness, speak with the Vital Parts team on 01233 713581. We can support sizing checks, bulk orders and repeat trade requirements.
