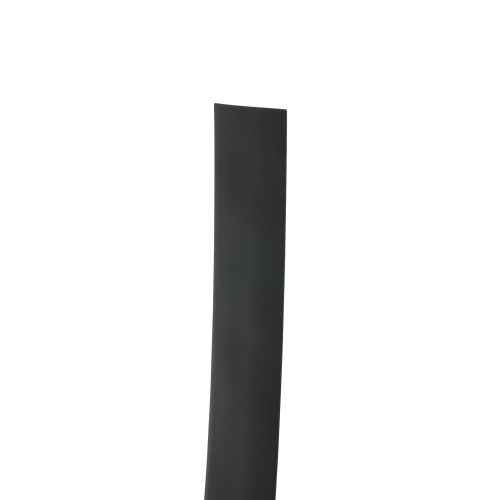

Black 2:1 Heat Shrink, 9.5mm x 7m - HS2-9.5-7B
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 14 | £7.93 | £9.52 |
| 15 - 49 | £6.80 | £8.16 |
| 50 + | £5.95 | £7.14 |
Product Specification
| Supplied Internal Diameter | 9.5mm |
| Recovered Internal Diameter | 4.75mm |
| Colour | Black |
| Length | 7m |
| Wall Thickness After Recovery | 0.56mm (±0.10) |
| Temperature Range | -55°C to +125°C |
Frequently Bought Together
Total Price: £0.00

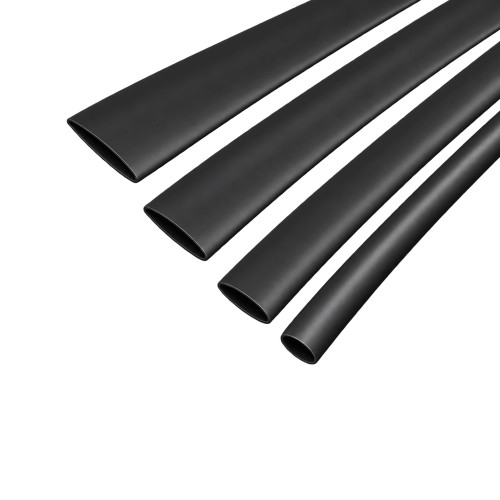

Black 2:1 Heat Shrink Sleeve – 9.5mm x 7m | Polyolefin

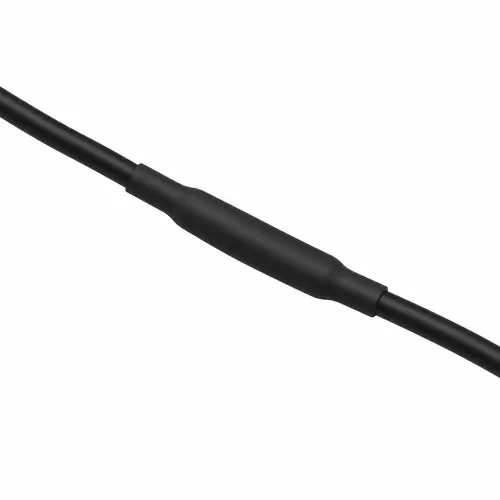

Frequently used in electrical manufacturing, this 9.5mm flexible heat shrink offers a flexible way to insulate exposed cable sections without using bulky protective covers.
Because the sleeve is supplied on a roll length of 7m, it suits both one-off repairs and larger workshop batches where repeat cutting is needed.
What Are Heat Shrink Sleeves?
Heat shrink sleeves are flexible Polyolefin tubes that reduce in diameter when heat is applied. They are used to insulate wiring, cover joins, group cables and improve protection around electrical assemblies.
Common Applications
- Panel building and cabinet wiring
- Covering ferrule-backed cable joints where suitable
- Grouping conductors before routing
- Improving cable traceability during servicing

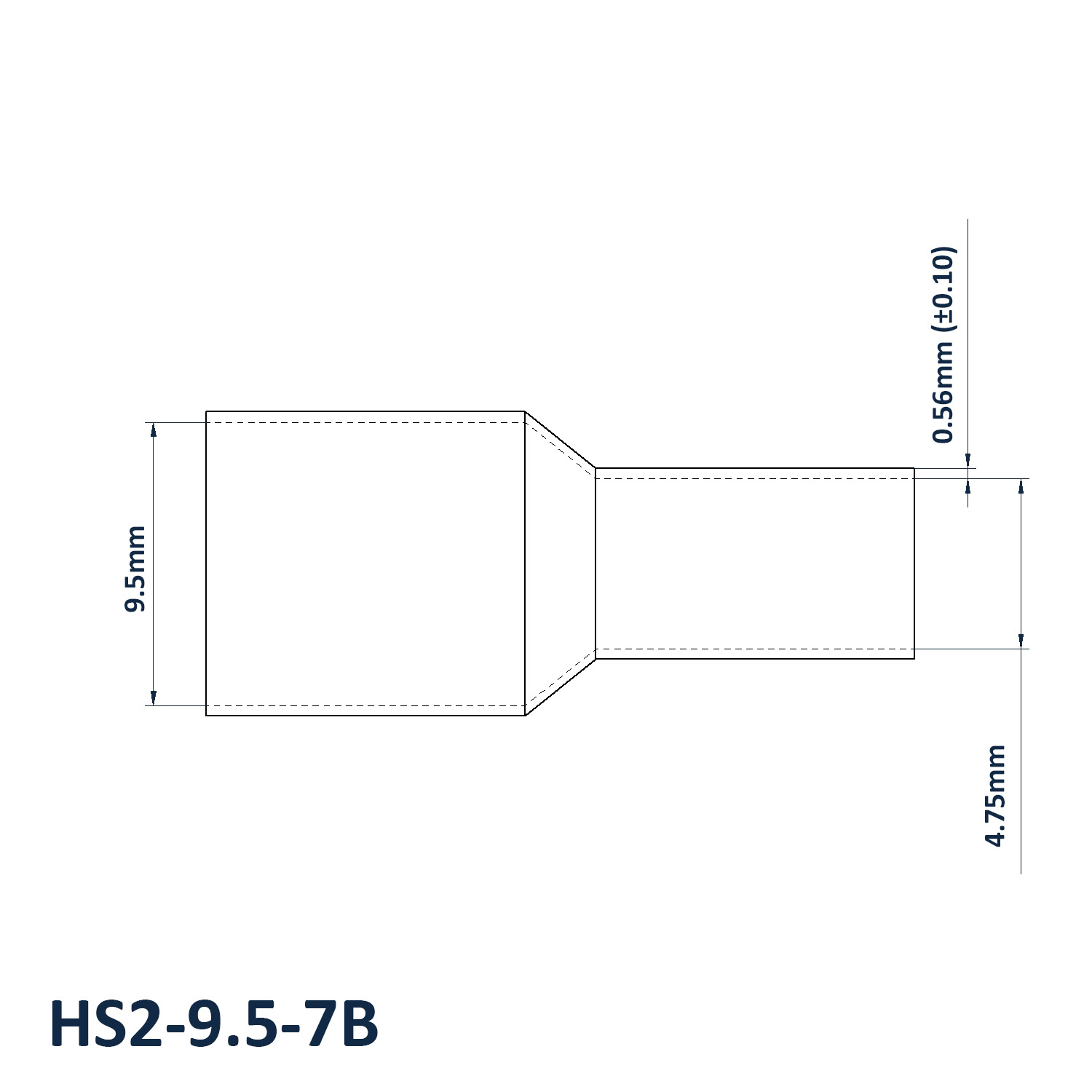

9.5mm x 7m Black Heat Shrink Sleeve Dimensions
- Supplied Internal Diameter: 9.5mm
- Recovered Internal Diameter: 4.75mm
- Colour: Black
- Length: 7m
- Wall Thickness After Recovery: 0.56mm (±0.10)
- Temperature Range: -55°C to +125°C
- Material: Polyolefin
- Shrink Ratio: 2:1
Installation Guidance
For best results, choose a supplied diameter that fits over the target area before heating and check that the recovered diameter is suitable for the final cable size.
Related Heat Shrink Products
For related cable protection, see our Adhesive Lined Heatshrink where internal bonding is needed and Heat Shrink Caps for end sealing applications.
View our full Heat Shrink Sleeves range.
Product Support and Trade Orders
For help checking heat shrink sizing, roll quantities or suitability for cable insulation work, speak with the Vital Parts team on 01233 713581. We can support repeat trade orders, samples where available and guidance on related heat shrink products.
