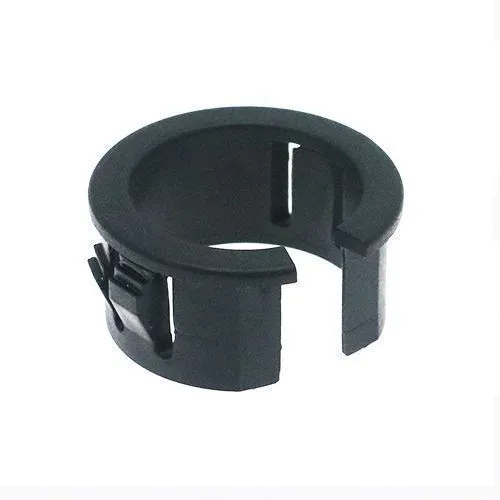

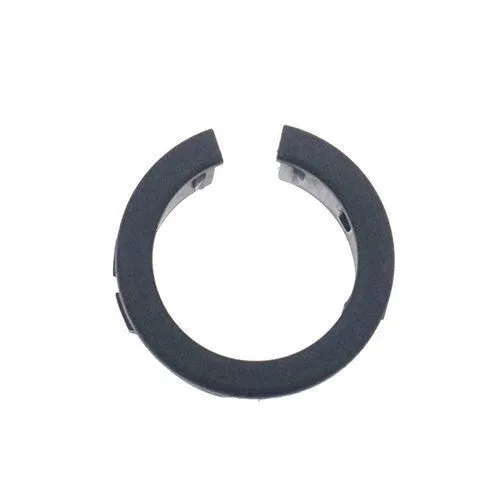

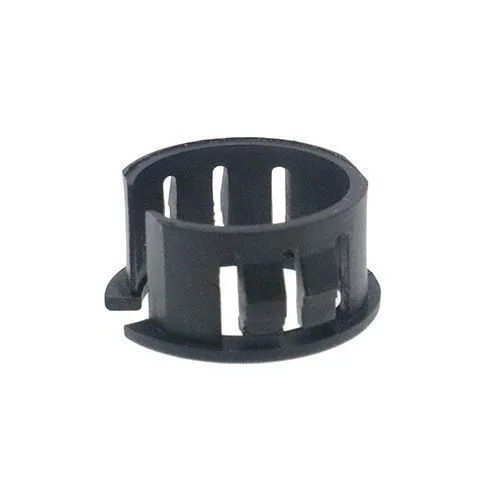

19mm Split Cable Bushing - 3.2mm Panel (13.9mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 50 | £0.60 | £0.72 |
| 51 - 100 | £0.38 | £0.46 |
| 101 - 250 | £0.32 | £0.38 |
| 251 - 500 | £0.24 | £0.29 |
| 501 - 1000 | £0.20 | £0.24 |
| 1001 + | £0.19 | £0.23 |
Product Specification
| To Fit Hole Diameter | 19.0mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 13.9mm |
| Head Diameter | 20.2mm |
| Length | 10.3mm |
Frequently Bought Together
Total Price: £0.00
19mm Open/Closed Bush | 13.9mm Max Cable | Black Nylon
Commonly selected for retrofit wiring work, this 19mm split body cable bush lets engineers protect an existing cable without stripping the assembly back.
Its snap-fit construction reduces fitting time during panel assembly, helping protect wiring from abrasion without separate screws, clips or adhesive. As a black nylon bushing, it gives a simple way to finish the aperture and protect wiring during regular service access or equipment upgrades.
What Are Open/Closed Bushes?
An open/closed bushing acts as a removable cable entry protector, combining a split body with a snap-fit edge. It is commonly used where different cable sizes share one mounting hole size.
Common Applications
- Vehicle body panels and trailer electrical routing
- HVAC control box cable protection
- Agricultural machinery panel wiring
- Snap-fit cable support for repair and refurbishment jobs

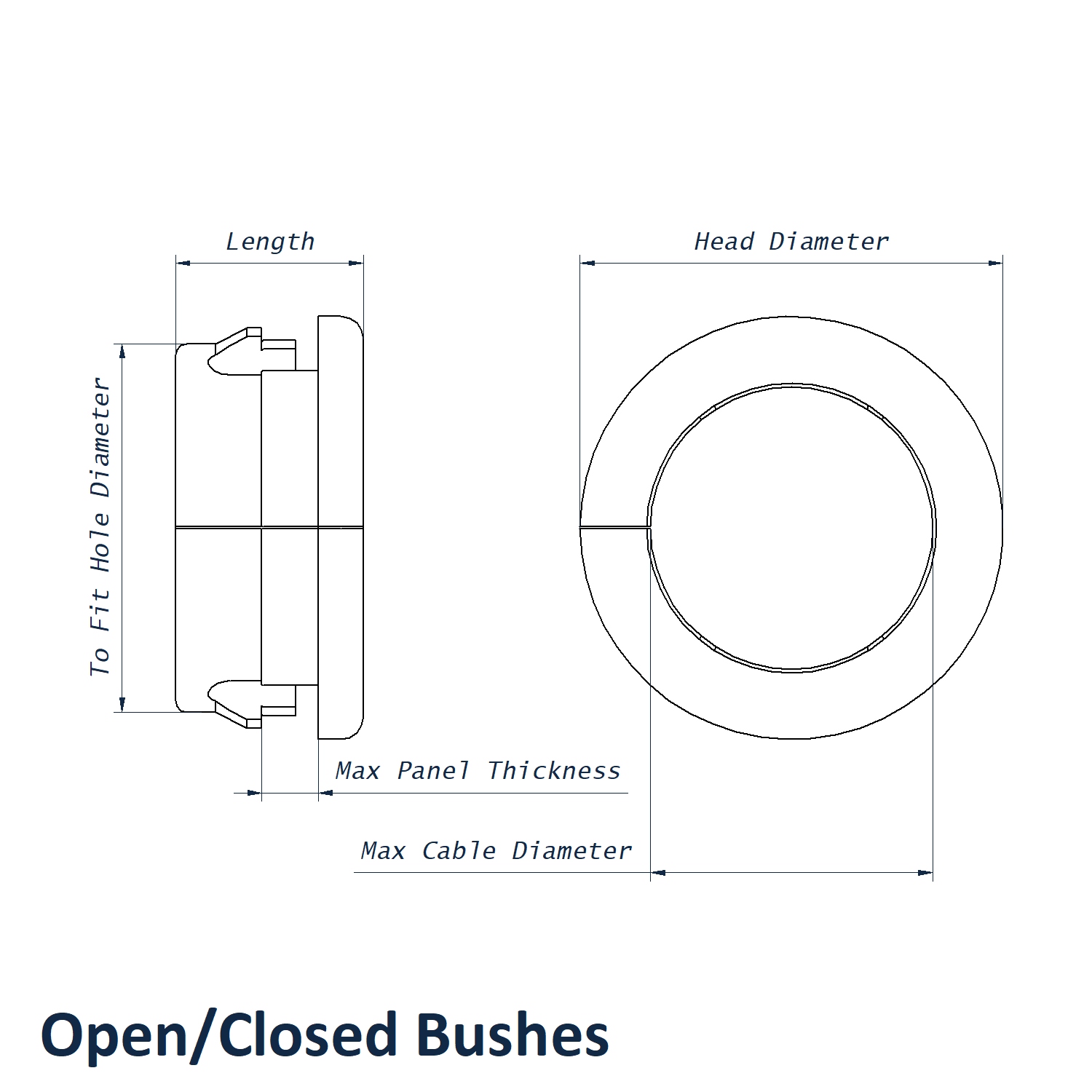

19mm x 10.3mm Black Open/Closed Bush Dimensions
- To Fit Hole Diameter: 19.0mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 13.9mm
- Head Diameter: 20.2mm
- Length: 10.3mm
- Material: Nylon
- Colour: Black
Open/Closed Bush Range
View our full Open/Closed Bushes range for split cable bushing options across different hole diameters, cable sizes and panel thicknesses.
Product Support and Trade Orders
If the cable diameter, mounting hole or panel thickness needs checking, speak with Vital Parts on 01233 713581. We can advise on fitment and support trade customers with repeat supply.
