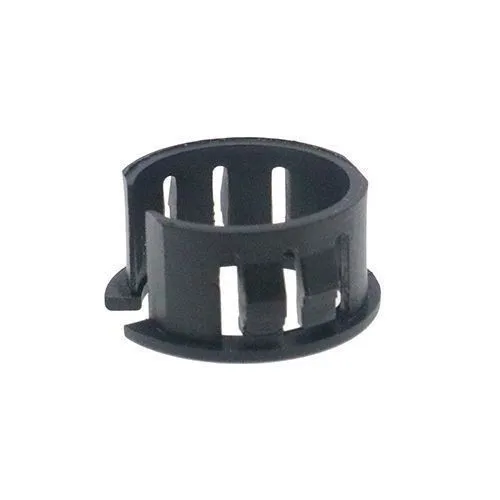

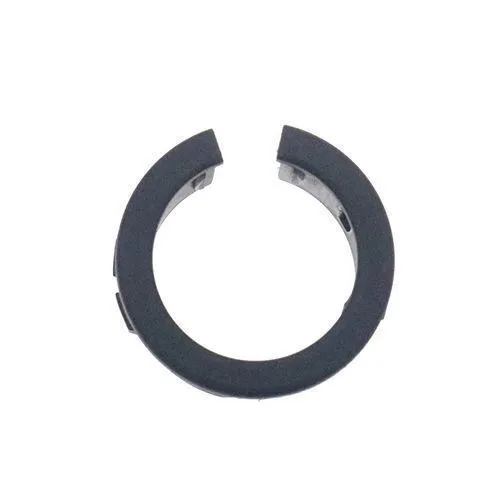

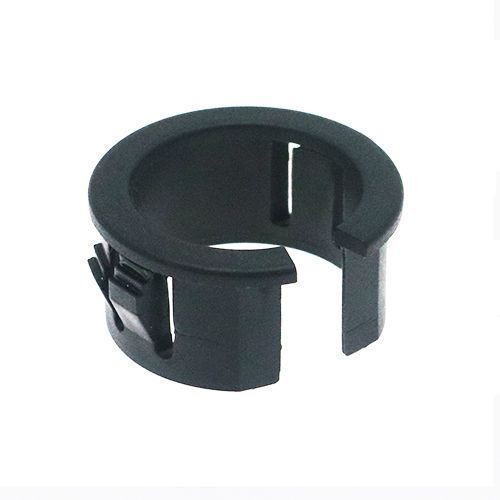

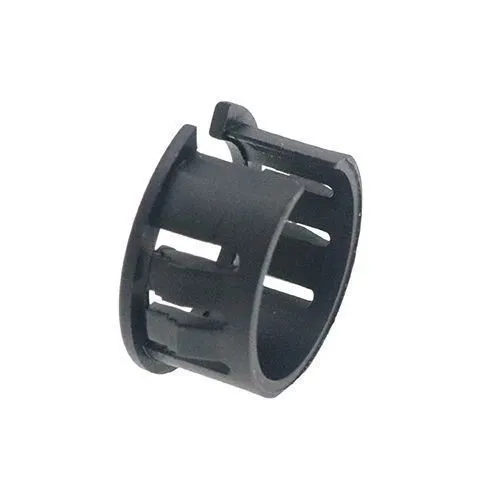

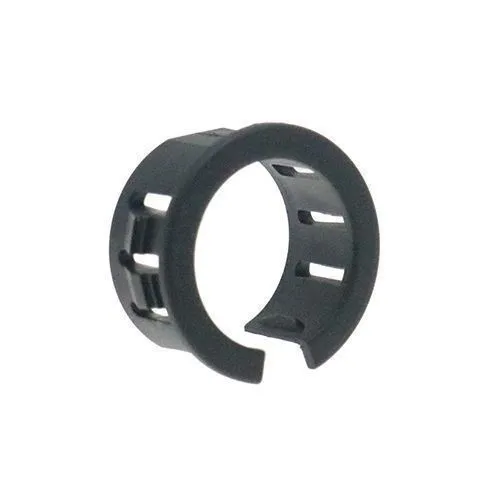

22mm Split Cable Bushing - 3.5mm Panel (17.3mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £0.65 | £0.78 |
| 2 - 50 | £0.65 | £0.78 |
| 51 - 100 | £0.42 | £0.50 |
| 101 - 250 | £0.33 | £0.40 |
| 251 - 500 | £0.27 | £0.32 |
| 501 + | £0.22 | £0.26 |
Product Specification
| To Fit Hole Diameter | 22.0mm |
| Max Panel Thickness | 3.5mm |
| Max Cable Diameter | 17.3mm |
| Head Diameter | 24.8mm |
| Length | 11.5mm |
Frequently Bought Together
Total Price: £0.00
22mm Open/Closed Bush | 17.3mm Max Cable | Black Nylon
For service work, panel building and OEM cable routing, this 22mm openable cable bushing clips into place around the cable and supports panel thicknesses up to 3.5mm.
This style is especially useful where the cable cannot be disconnected, as the split opening allows the bush to be installed without reworking the harness. As a split-body panel bush, it gives a simple way to finish the aperture and protect wiring during regular service access or equipment upgrades.
What Are Open/Closed Bushes?
An open/closed bushing acts as a removable cable entry protector, combining a split body with a snap-fit edge. It is commonly used where different cable sizes share one mounting hole size.
Common Applications
- Laboratory equipment cable entry points
- Packaging machinery control wiring
- Electronic enclosure panel protection
- Serviceable installations where cable removal is not practical

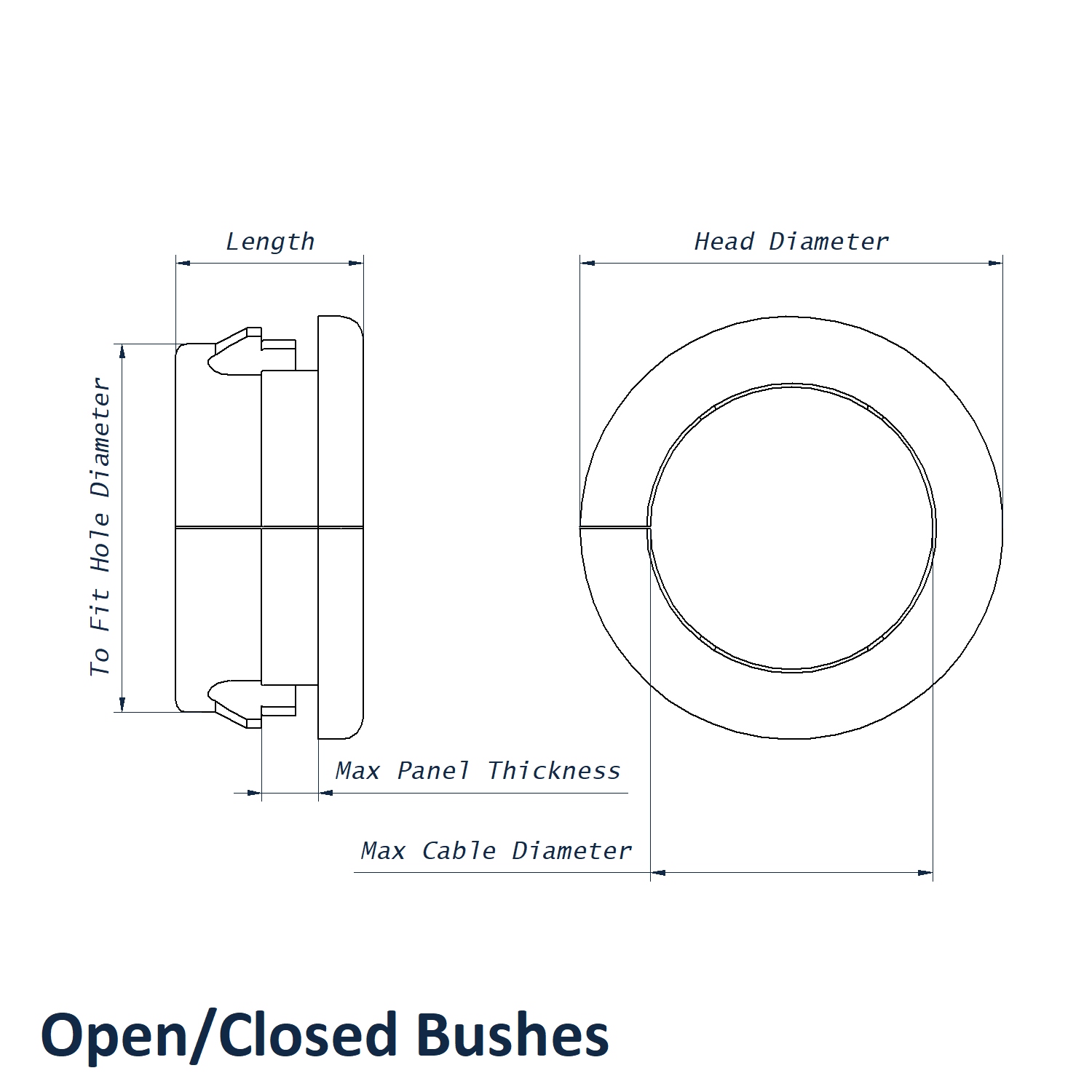

22mm x 11.5mm Black Open/Closed Bush Dimensions
- To Fit Hole Diameter: 22.0mm
- Max Panel Thickness: 3.5mm
- Max Cable Diameter: 17.3mm
- Head Diameter: 24.8mm
- Length: 11.5mm
- Material: Nylon
- Colour: Black
Open/Closed Bush Range
View our full Open/Closed Bushes range for split cable bushing options across different hole diameters, cable sizes and panel thicknesses.
Product Support and Trade Orders
If the cable diameter, mounting hole or panel thickness needs checking, speak with Vital Parts on 01233 713581. We can advise on fitment and support trade customers with repeat supply.
