Open Grommets - OPG019

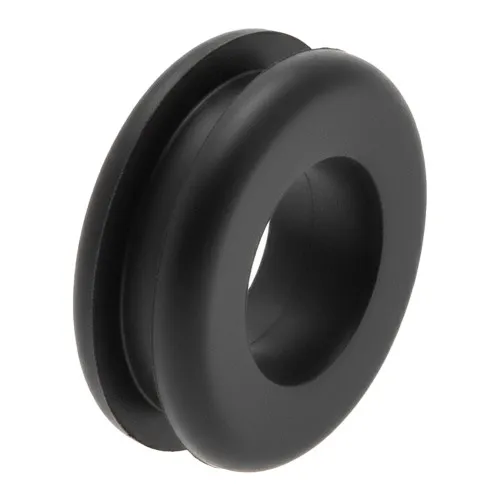

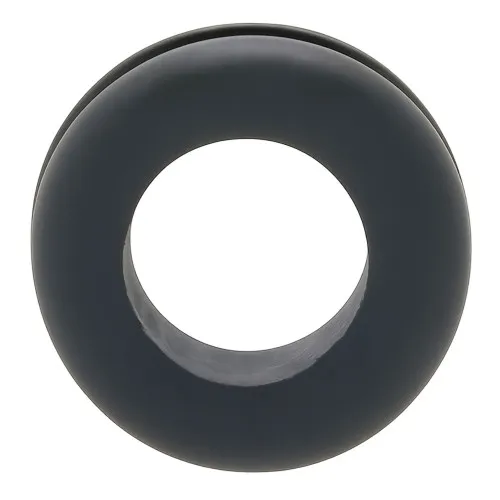

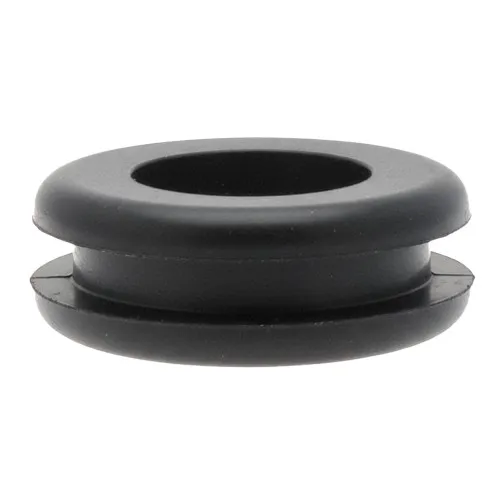

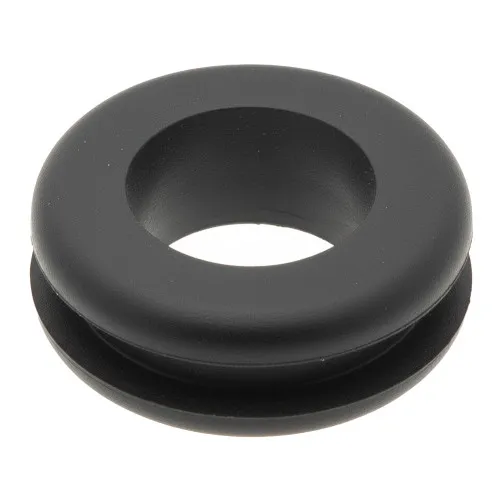

Open Rubber Grommets - 10mm Mounting Hole Diameter - 6mm Internal Diameter - 6.5mm Height - Black EPDM | Vital Parts - OPG019

Our Open Rubber Grommets are an ideal solution for cable protection and management, offering a flexible yet durable seal around wiring systems. Designed with an open-top centre, these grommets allow cables and wires to be pushed directly through while safeguarding them from abrasion, sharp panel edges, and environmental factors.

What are Open Rubber Grommets?

Open Rubber Grommets are ring-shaped components used to protect cables and wires where they pass through panels or enclosures. Unlike closed or blind grommets, these feature an open internal hole that permits the threading of known cable diameters directly through the grommet. Manufactured from high-quality EPDM, they provide excellent resistance to weathering, UV, ozone, and a range of chemicals. These grommets are designed to absorb vibration, prevent damage, and extend the lifespan of electrical systems.

Key Features:

• Open design allows direct cable pass-through
• Excellent resistance to heat, chemicals, weather, and ageing
• Flame retardant properties for added safety
• Air-tight fit to prevent ingress of dust and moisture
• Available in sizes to fit panel thicknesses from 1mm to 9.5mm
• Cable diameter support from 5mm up to 63.5mm

Key Applications and Industries

Our Open Rubber Grommets are widely used across the UK electronics industry, electrical installation sectors, and general manufacturing. They are essential in any application where cables or wires must pass through metal or plastic panels, such as in electrical cabinets, automotive dashboards, industrial equipment, and machinery panels. Their air-tight and vibration-resistant design makes them a dependable option for both indoor and outdoor environments.

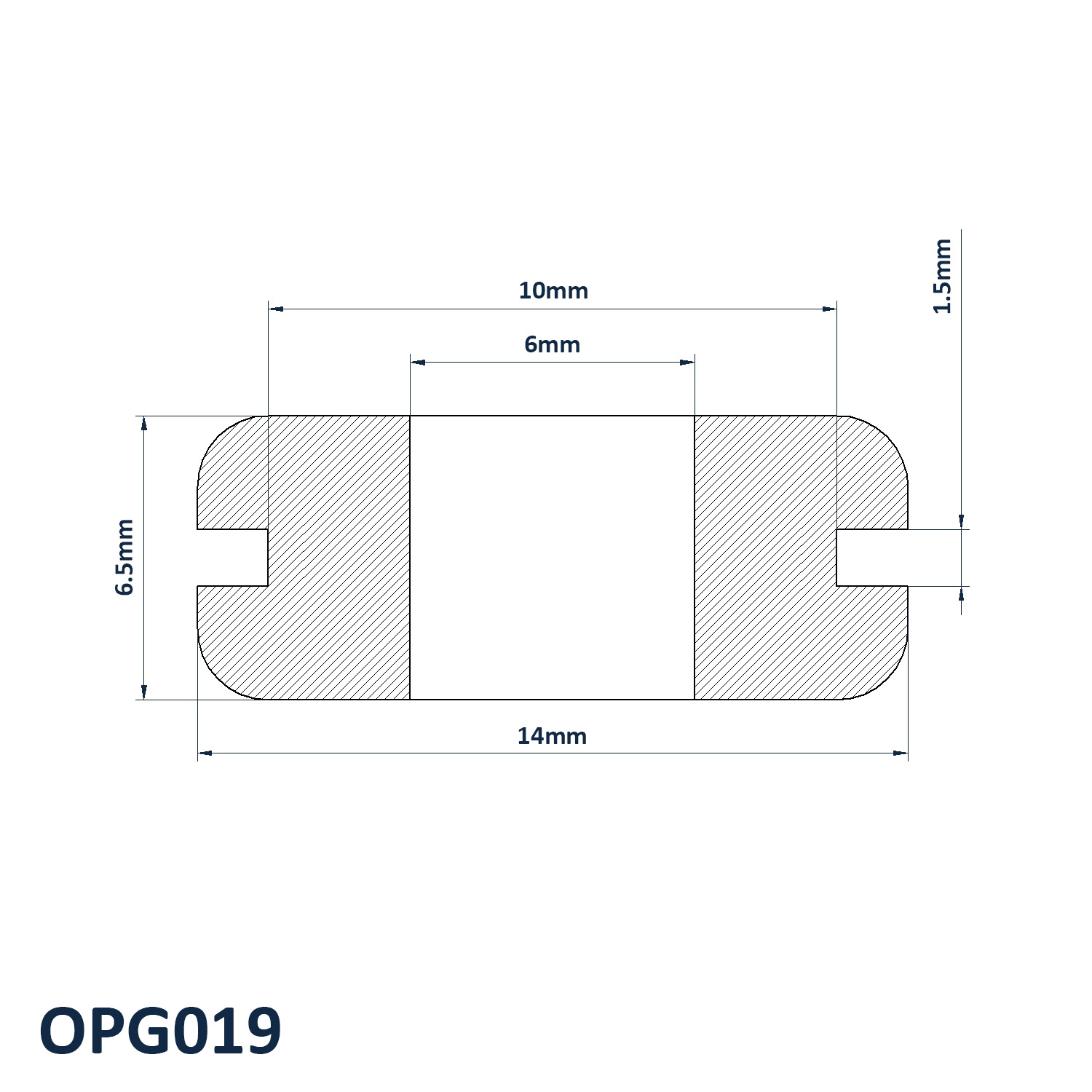

Technical Specifications

• Mounting Hole Diameter : 10mm
• Panel Thickness : 1.5mm
• Internal Diameter : 6mm
• Height : 6.5mm
• Outside Diameter : 14mm
• Material: EPDM
• Colour: Black (standard)
• Design: Open-centre ring grommet
• Compliance: Meets applicable UK electrical guidelines and building regulations

Our Open Rubber Grommets are ideal for:

• Threading cables and wires through metal or plastic panels
• Reducing vibration and wear on wiring systems
• Sealing holes while maintaining cable accessibility
• Electrical panel and junction box cable entry points

Benefits:

• Protects cables from sharp edges and reduces wear
• Improves cable management and panel aesthetics
• Quick and easy installation into pre-cut panel holes
• Ensures compliance with safety and fire standards
• Helps maintain the integrity of electrical systems

Why Buy from Vital Parts?

As a trusted UK supplier of high-quality fasteners and industrial components, Vital Parts offers a customer-first experience with benefits that include:

• Same-Day Dispatch: Fast and reliable shipping to keep your projects on track.
• Competitive Trade Pricing: Enjoy bulk discounts on larger orders to save more.
• Expert Technical Support: Our knowledgeable team is here to help with product selection and application advice.

Click here to view our full Guide to Rubber Grommets

Open Rubber Grommets provide a practical and protective solution for cable and wire management in demanding environments. If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
