6.3mm x 19mm Phillips Pan Head AB Self Tapping Screw (DIN 7981CH) | A2 Stainless Steel
Product code:
ST7981CH-6.3-19-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.82 | £0.98 |
| 100 - 499 | £0.39 | £0.47 |
| 500 - 999 | £0.33 | £0.39 |
| 1000 + | £0.28 | £0.33 |
£0.98
£0.98 / each
Up to 2,907 units
Available
.png)
Order now for dispatch within 2 days.
Up to 146,407 units
Available
Order now for dispatch within 5 days.
146,407 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.
Product Specification
| Thread Size | 6.3mm |
| Length | 19.0mm |
| Material | A2 Stainless Steel |
| Head Diameter | 12.5mm |
| Head Height | 4.55mm |
| End Type | AB |
| Drive Type | Phillips |
| Drive | PH3 |
| Standard | DIN 7981CH |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00

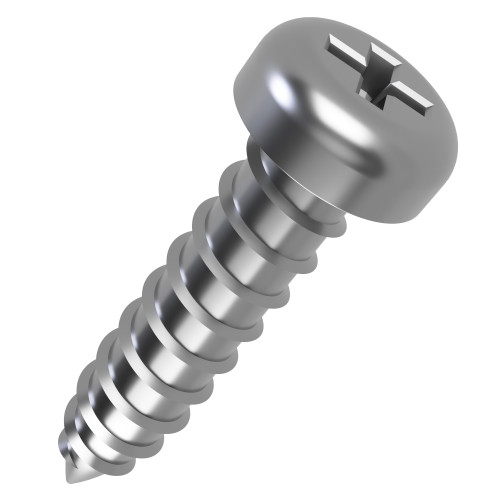

6.3mm x 19mm PH3 Phillips Pan Head AB Self Tapping Screw DIN 7981CH | A2 Stainless Steel
Designed for fixing formed metal sections, this 6.3mm x 19mm bracket fixing screw uses an AB thread to form its own mating thread in prepared holes and deliver accurate alignment.
The shallow rounded head sits neatly on the surface while the AB thread cuts its own path into compatible materials. Manufactured from A2 stainless steel for dependable corrosion resistance in general industrial and workshop environments.
Common Applications
- Attaching brackets
- Retail display installing ventilation guards
- Fitting steel side panels
- Mounting light steel framework

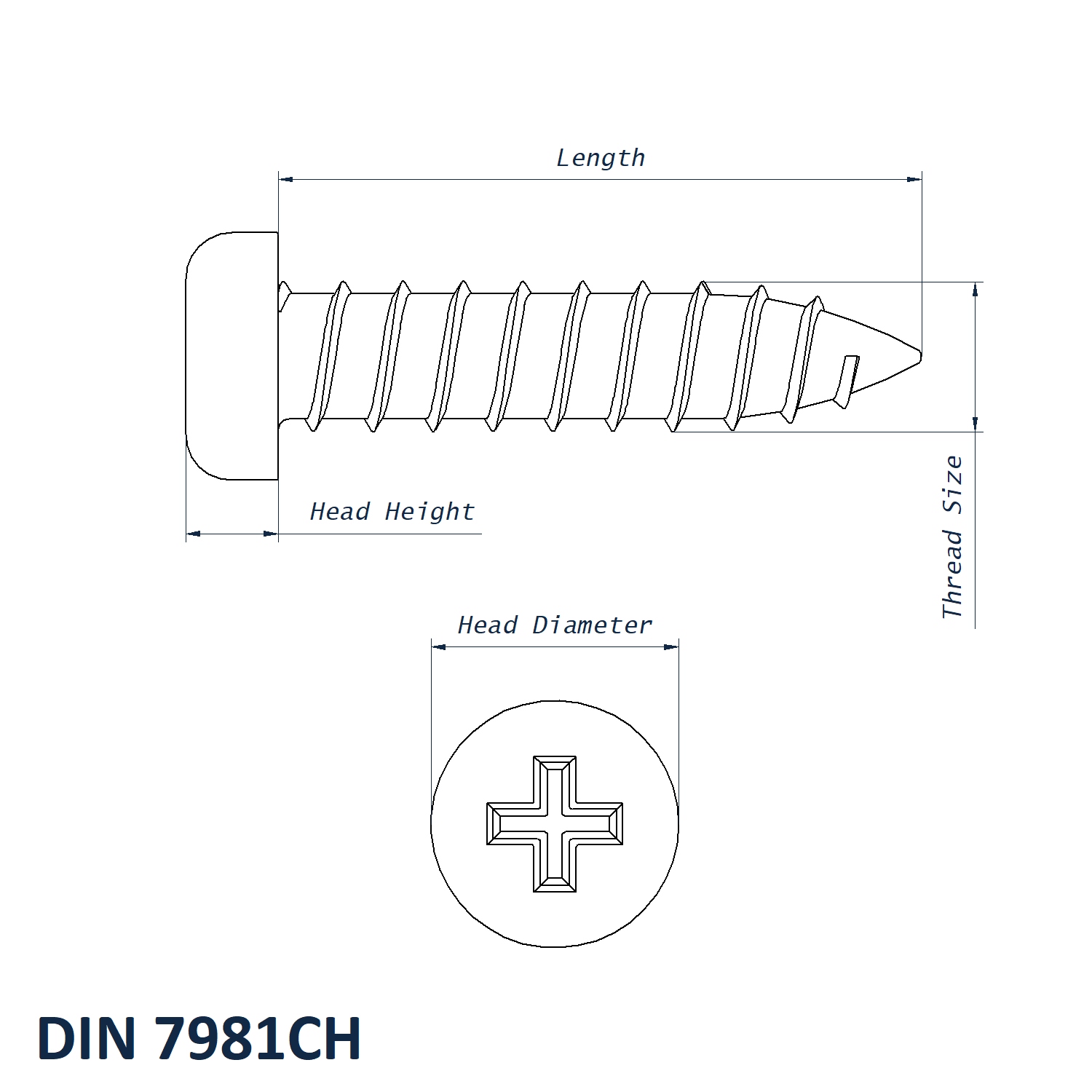

6.3mm x 19mm Phillips Pan Head Self Tapping Screw Dimensions
- Thread Size: 6.3mm
- Length: 19mm
- Head Diameter: 12.5mm
- Head Height: 4.55mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7981CH
- Material: A2 Stainless Steel
View our full Pan Head AB Self Tapping Screws Range or browse the wider Self Tapping Screws Collection.
