3.5mm x 9.5mm Phillips Pan AB Self Tapping Screw DIN 7981CH - Black Zinc
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.09 | £0.11 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.05 | £0.06 |
| 1000 + | £0.02 | £0.02 |

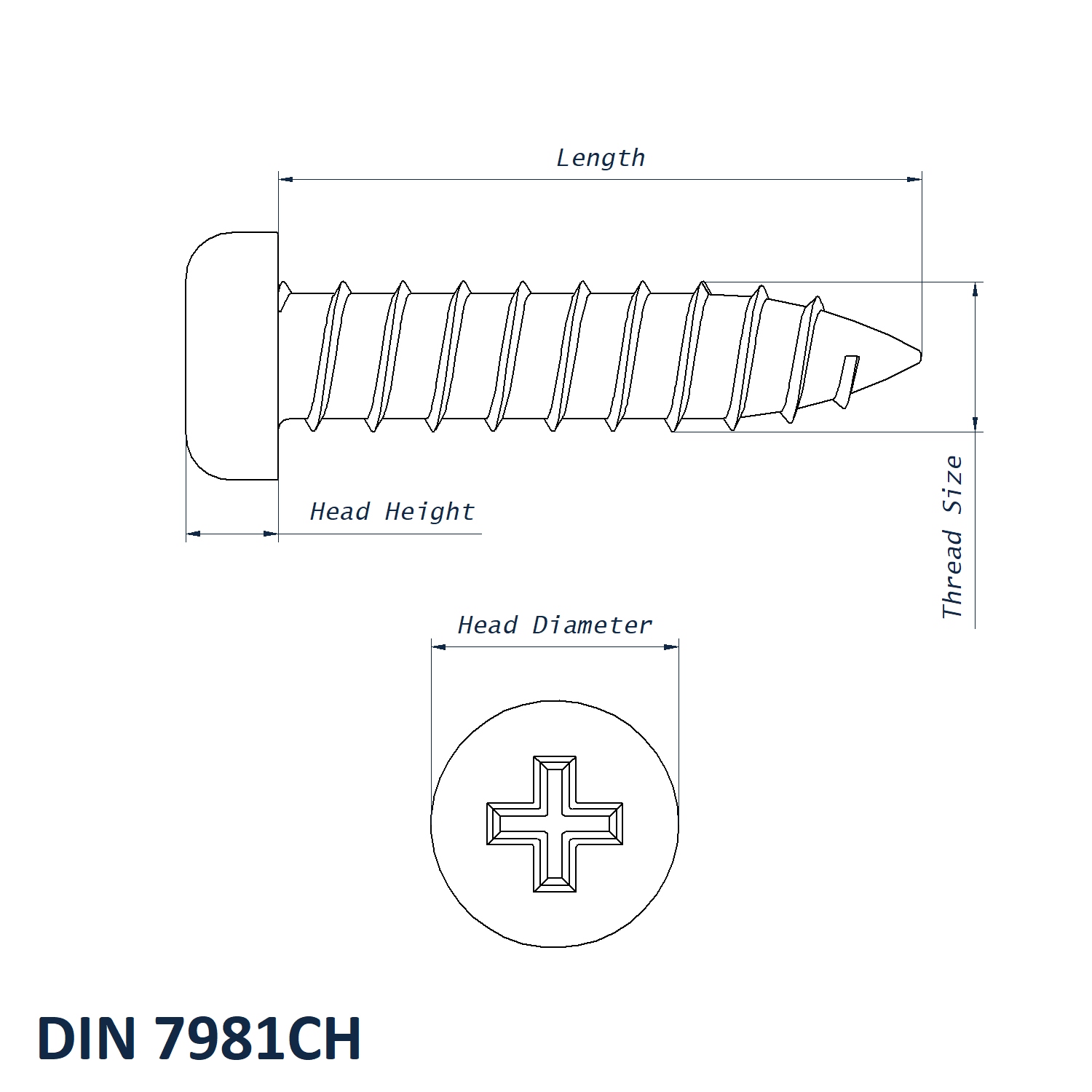

Product Specification
| Thread Size | 3.5mm |
| Length | 9.5mm |
| Material | Steel Black Zinc |
| Head Diameter | 6.9mm |
| Head Height | 2.60mm |
| End Type | AB |
| Drive | PH2 |
| Standard | DIN 7981CH |
| Drive Type | Phillips |
Frequently Bought Together
Total Price: £0.00

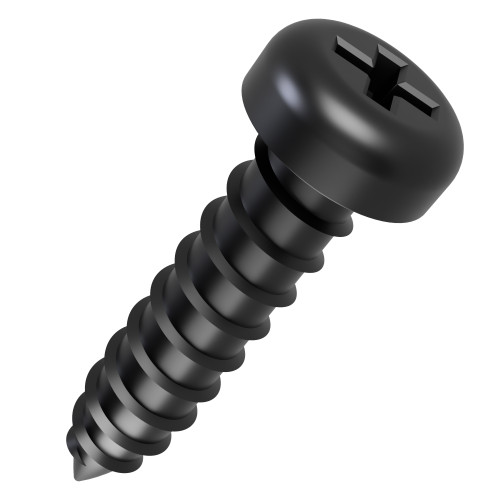

3.5mm x 9.5mm Phillips Pan Self Tapping Screw DIN 7981CH - Black Zinc Steel - ST7981CH-3.5-9.5-BLZN
Our 3.5mm x 9.5mm Phillips Pan Self Tapping Screw is manufactured from Black Zinc Steel for dependable strength and corrosion resistance. Designed to create its own thread during installation, it delivers a secure hold in sheet metal, plastics, and timber.
What are Phillips Pan Self Tapping Screws?
These screws have a rounded pan head with a Phillips drive for fast, controlled installation. Their self-tapping thread forms mating threads in the base material, removing the need to pre-tap holes.
Key Features:
- Material: Black Zinc Steel
- Head Type: Pan head with Phillips drive
- Thread Size: 3.5mm
- Length: 9.5mm
- Head Diameter: 6.9mm
- Head Height: 2.6mm
- Drive Size: PH2
- End Type: AB
Key Applications and Industries
Widely used across UK construction, manufacturing, and automotive sectors for general-purpose fastening of sheet metal, electrical housings, brackets, and trims.
Technical Specifications
- Standard: DIN 7981CH
- Material: Black Zinc Steel
- Thread Size: 3.5mm
- Length: 9.5mm
- Head Diameter: 6.9mm
- Head Height: 2.6mm
- Drive Size: PH2
- End Type: AB
Benefits:
- Quick installation using a Phillips drive
- Corrosion-resistant finish for long service life
- Strong, reliable hold in multiple base materials
- Neat, low-profile pan head appearance
