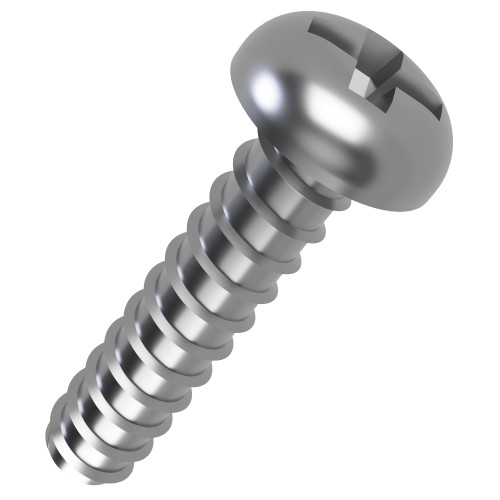

4.8mm x 22mm Phillips Pan Head B Self Tapping Screw (DIN 7981FH) | A2 Stainless Steel
Product code:
ST7981FH-4.8-22-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.76 | £0.91 |
| 100 - 499 | £0.45 | £0.54 |
| 500 - 999 | £0.38 | £0.45 |
| 1000 + | £0.28 | £0.34 |
£0.91
/ each
Quantity:
Product Specification
| Thread Size | 4.8mm |
| Length | 22.0mm |
| Material | A2 Stainless Steel |
| Head Diameter | 9.5mm |
| Head Height | 3.00mm |
| Drive | PH2 |
| End Type | B |
| Standard | DIN 7981FH |
| Drive Type | Phillips |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
4.8mm x 22mm Phillips Pan B Self Tapping Screw DIN 7981FH | A2 Stainless Steel
Built around the DIN 7981FH format, this 4.8mm Control Cabinet Screw is used for attaching light gauge brackets where automotive assemblies needs a secure self tapping fixing. The size and head style make it relevant for DIN pan head screw work, component fastener jobs and securing signage rails.
The 3.00mm pan head height gives a raised but compact finish. Its a2 Stainless Steel specification is suited to engineering, enclosure and light external applications.
Common Applications
- Securing pump covers in automotive assemblies
- Fastening machine guards
- Building fabricated assemblies
- Joining support plates for control cabinet builds

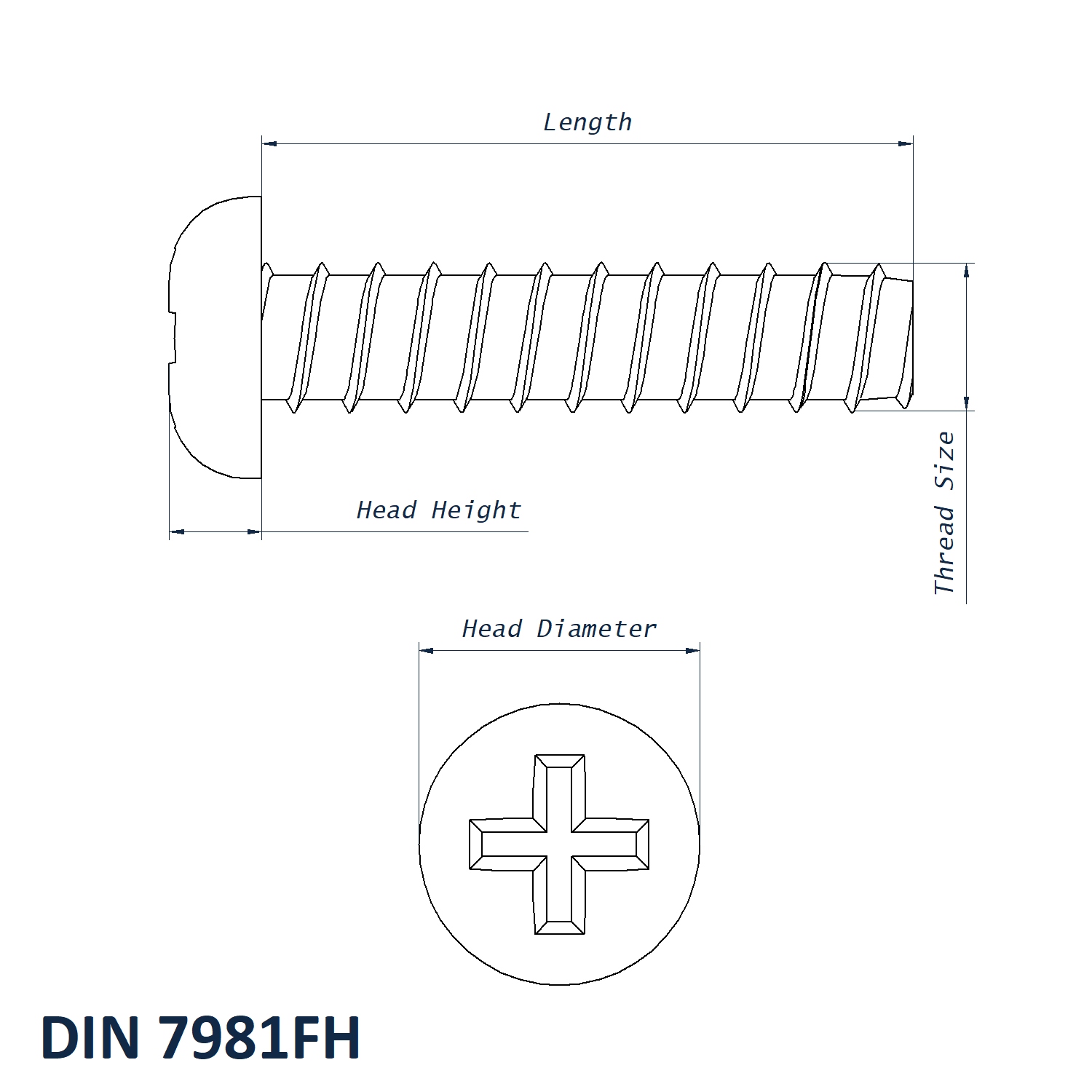

4.8mm x 22mm Pan Self Tapping Screw Dimensions
- Thread Size: 4.8mm
- Length: 22mm
- Head Diameter: 9.5mm
- Head Height: 3.00mm
- Drive: PH2
- End Type: B
- Drive Type: Phillips
- Standard: DIN 7981FH
- Material: A2 Stainless Steel
View our full Self Tapping Screw Range.
