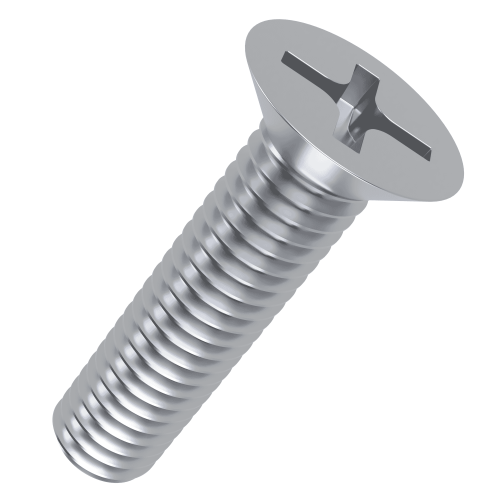

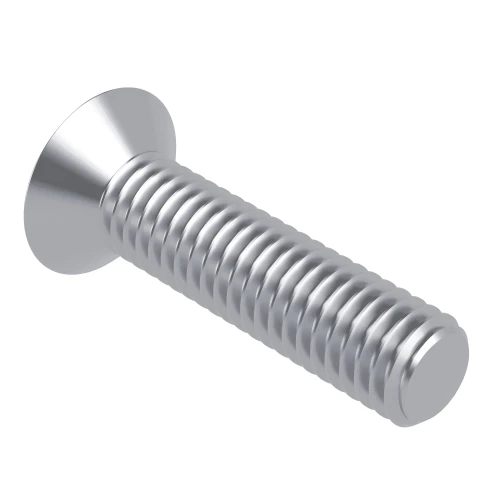

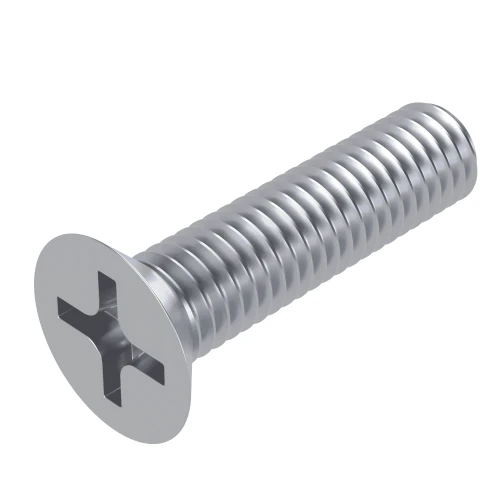

M5 x 25mm Phillips (PH2) Countersunk Screw (DIN 965H) | BZP Steel
Product code:
PCMS965H-M5-25-BZP
View All Specifications
CAD Viewer
Loading...
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.05 | £0.06 |
| 100 - 499 | £0.04 | £0.05 |
| 500 - 999 | £0.03 | £0.04 |
| 1000 + | £0.03 | £0.03 |
£0.06
£0.06 / each
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

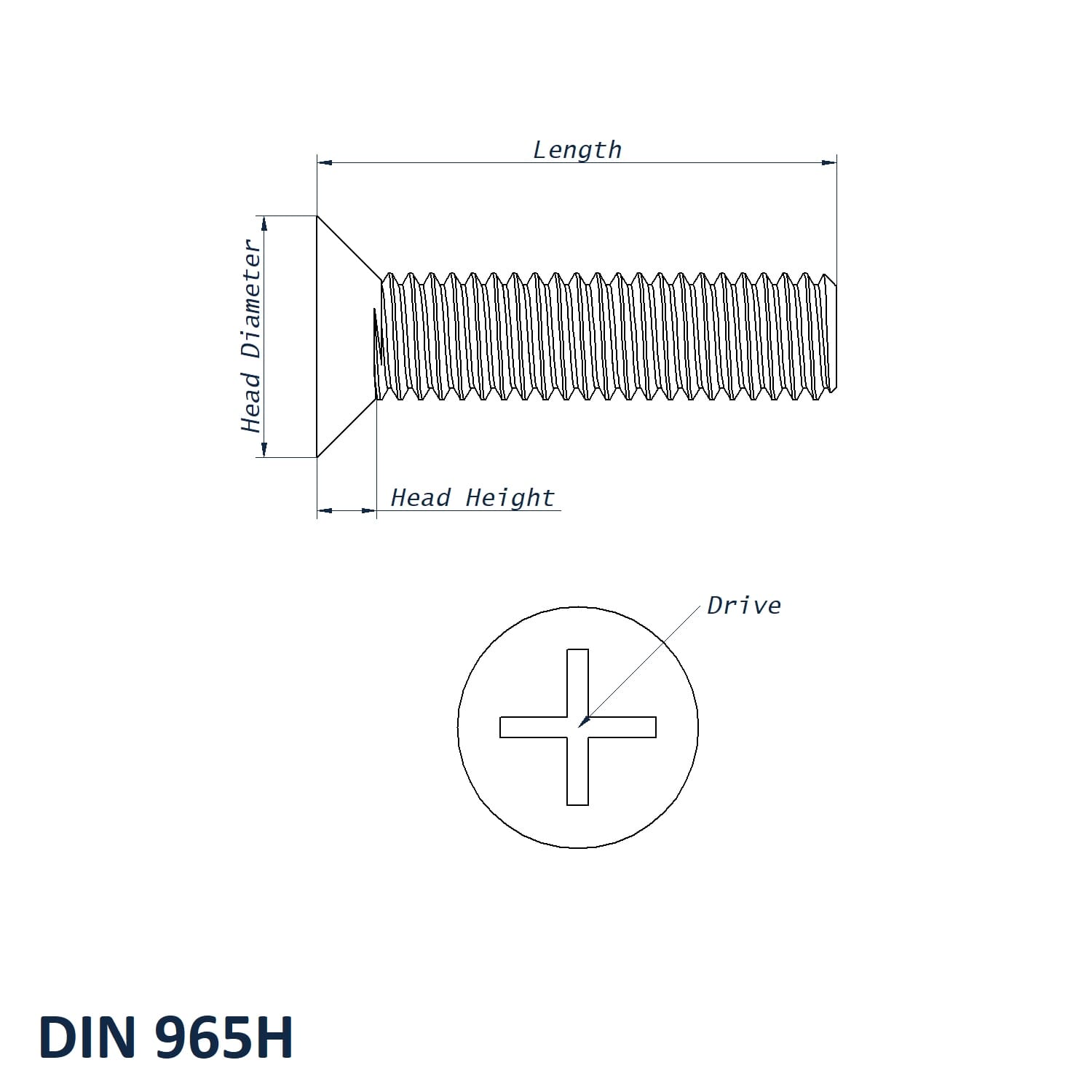

Product Specification
| Thread Size | M5 |
| Length | 25mm |
| Pitch | 0.80mm |
| Material | Steel BZP |
| Head Diameter | 9.3mm |
| Head Height | 2.70mm |
| Drive | #2 |
| Standard | DIN 965H |
| Head Style | Countersunk |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
- Thread Size M5
- Material A2-70 Stainless Steel
- Height 4.00mm
- Thread Pitch 0.80mm
- Across Flats 8.0mm
- Standard DIN 934
- Thread Size M5
- Material A2 Stainless Steel
- Head Diameter 9.3mm
- Length 25mm
- Drive #2
- Standard DIN 965H
- Pitch 0.80mm
- Head Height 2.70mm
- Head Style Countersunk
- Material A2 Stainless Steel
- Thickness 1.00mm
- Internal Diameter 5.3mm
- Outside Diameter 10.0mm
- Standard DIN 125A
- Size M5
Total Price: £0.00
This Phillips Countersunk Machine Screw DIN 965H is made from BZP which provides applications with strength and corrosion resistance. This Screw has a Thread Size of M5, a Length of 25mm, a Pitch of 0.8mm, a Head Diameter of 9.30mm, a Head Height of 2.7mm and a Drive of #2. Phillips Countersunk Machine Screws, commonly known in the UK as Phillips Flat Head Screws, are distinguished by their cross-shaped indentation, allowing for significant torque application without slipping. As machine screws, they are designed to be secured in place through the use of a nut or threaded holes, often in standard coarse thread variants. They are usually installed and removed using a screwdriver or a power tool compatible with the Phillips head design.
These screws are frequently used as alternatives to other screw types like self-tapping or wood screws due to their distinct threading and installation method. In the UK, they are extensively utilised in various industries, including those involving computer equipment, automotive sectors, household electricals, and large industrial machinery. They are suitable for both commercial and personal projects due to their versatility and strength in fastening two items together.
| Code | Thread Size | Material | Head Diameter | Length | Drive | Standard | Pitch | Head Height | Head Style | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PCMS965H-M5-25-BZP | M5 | Steel BZP | 9.3mm | 25mm | #2 | DIN 965H | 0.80mm | 2.70mm | Countersunk |
Checking...
|
|
| PCMS965H-M5-30-BZP | M5 | Steel BZP | 9.3mm | 30mm | #2 | DIN 965H | 0.80mm | 2.70mm | Countersunk |
Checking...
|
|
| PCMS965H-M5-35-BZP | M5 | Steel BZP | 9.3mm | 35mm | #2 | DIN 965H | 0.80mm | 2.70mm | Countersunk |
Checking...
|
|
| PCMS965H-M5-45-BZP | M5 | Steel BZP | 9.3mm | 45mm | #2 | DIN 965H | 0.80mm | 2.70mm | Countersunk |
Checking...
|
|
| PCMS965H-M5-50-BZP | M5 | Steel BZP | 9.3mm | 50mm | #2 | DIN 965H | 0.80mm | 2.70mm | Countersunk |
Checking...
|
|
| PCMS965H-M5-60-BZP | M5 | Steel BZP | 9.3mm | 60mm | #2 | DIN 965H | 0.80mm | 2.70mm | Countersunk |
Checking...
|
|
| PCMS965H-M5-6-BZP | M5 | Steel BZP | 9.3mm | 6mm | #2 | DIN 965H | 0.80mm | 2.70mm | Countersunk |
Checking...
|
|
| PCMS965H-M5-8-BZP | M5 | Steel BZP | 9.3mm | 8mm | #2 | DIN 965H | 0.80mm | 2.70mm | Countersunk |
Checking...
|
|
| PCMS965H-M6-10-BZP | M6 | Steel BZP | 11.3mm | 10mm | #3 | DIN 965H | 1.00mm | 3.30mm | Countersunk |
Checking...
|
|
| PCMS965H-M6-12-BZP | M6 | Steel BZP | 11.3mm | 12mm | #3 | DIN 965H | 1.00mm | 3.30mm | Countersunk |
Checking...
|
|
| PCMS965H-M6-16-BZP | M6 | Steel BZP | 11.3mm | 16mm | #3 | DIN 965H | 1.00mm | 3.30mm | Countersunk |
Checking...
|
|
| PCMS965H-M6-20-BZP | M6 | Steel BZP | 11.3mm | 20mm | #3 | DIN 965H | 1.00mm | 3.30mm | Countersunk |
Checking...
|
|
