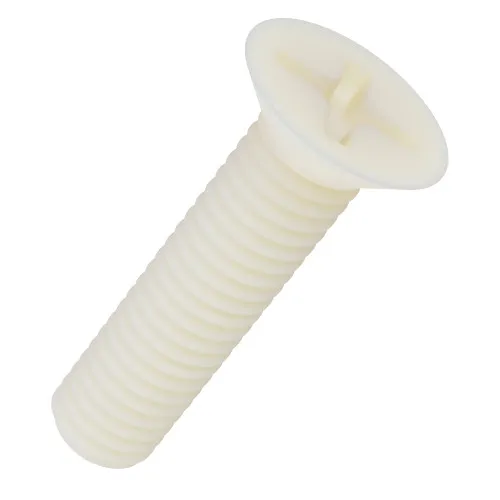

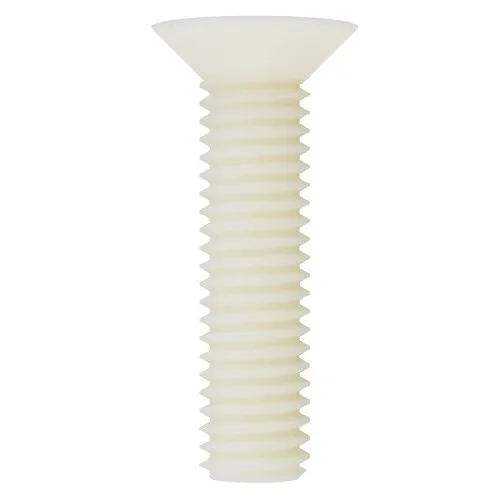

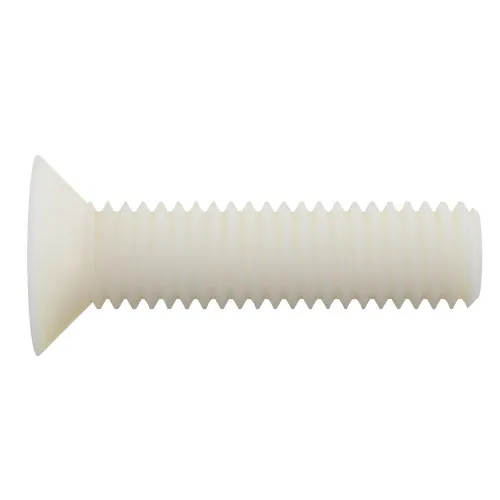

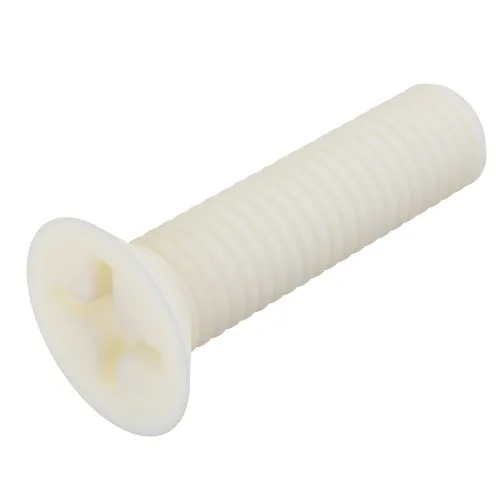

M4 x 16mm Nylon Phillips Countersunk Machine Screw (DIN 965H) | Natural
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.11 | £0.13 |
| 100 - 499 | £0.09 | £0.11 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.04 | £0.05 |
Product Specification
| Thread Size | M4 |
| Length | 16mm |
| Pitch | 0.70mm |
| Head Diameter | 7.5mm |
| Material | Nylon - Natural |
| Head Height | 2.20mm |
| Standard | DIN 965H |
| Drive | Phillips |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
M4 Phillips Head Countersunk Nylon Screw DIN 965H - 16mm Length
Built for clean finishing fastening applications, this M4 phillips head countersunk nylon screw uses a 16mm thread length with a 7.5mm countersunk head diameter and 2.2mm head height. The medium reach configuration is suited to standard diameter recessed fixing positions where a flush finish is required.
Manufactured to DIN 965H from nylon, this fixing is supplied in a natural finish for lightweight assembly work. Its lightweight thermoplastic construction helps minimise vibration transfer, while the Phillips recess supports controlled installation into pre-threaded holes, inserts and machine threads.
Common Applications
- Non-metallic fastening points
- Countersunk mounting applications
- Panel fixing installations
- Electrical and laboratory equipment
M4 Phillips Head Countersunk Nylon Screw Dimensions
- Thread Size: M4
- Length: 16mm
- Pitch: 0.7mm
- Head Diameter: 7.5mm
- Head Height: 2.2mm
- Drive: Phillips
- Material: Nylon - Natural
- Standard: DIN 965H
- Head Style: Countersunk
View our full Nylon Countersunk Screw range or browse our Nylon Screws collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
