M5 x 15mm Nylon Phillips Countersunk Machine Screw (DIN 965H) | Natural
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.12 | £0.14 |
| 100 - 499 | £0.09 | £0.11 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.05 | £0.06 |
Product Specification
| Thread Size | M5 |
| Length | 15mm |
| Pitch | 0.80mm |
| Head Diameter | 9.2mm |
| Material | Nylon - Natural |
| Head Height | 2.50mm |
| Standard | DIN 965H |
| Drive | Phillips |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00

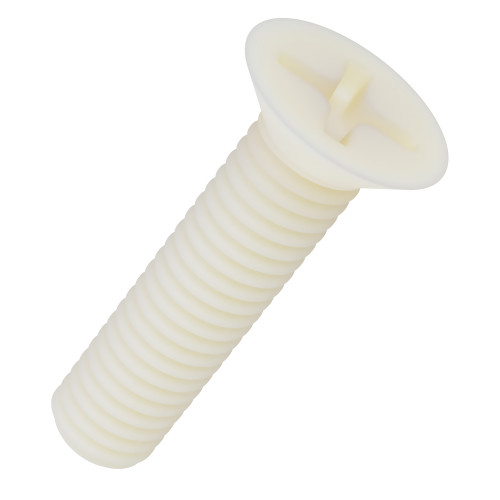

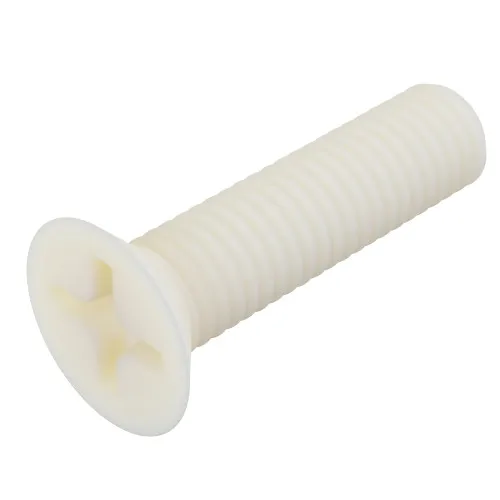

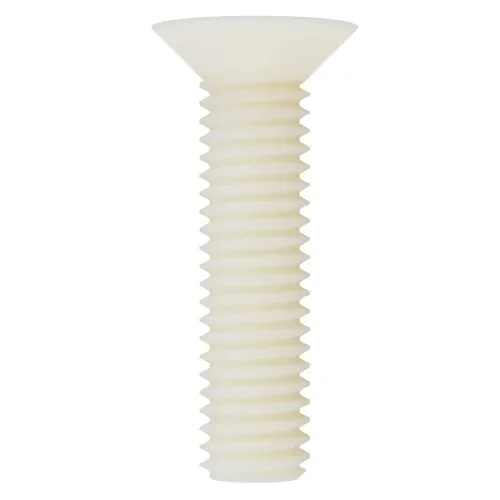

M5 Phillips Head Countersunk Nylon Screw DIN 965H - 15mm Length
Commonly selected for low profile panel fastening, this M5 phillips head countersunk nylon screw uses a 15mm thread length with a 9.2mm countersunk head diameter and 2.5mm head height. The medium reach configuration is suited to standard diameter recessed fixing positions where a flush finish is required.
Manufactured to DIN 965H from nylon, this fixing is supplied in a natural finish for lightweight assembly work. The non-corrosive body suits indoor and outdoor fitting locations, while the Phillips recess supports controlled installation into pre-threaded holes, inserts and machine threads.
Common Applications
- Display systems and exhibition fixtures
- Control boxes and low voltage enclosures
- Lightweight fabricated products
- Prototype engineering builds
M5 Phillips Head Countersunk Nylon Screw Dimensions
- Thread Size: M5
- Length: 15mm
- Pitch: 0.8mm
- Head Diameter: 9.2mm
- Head Height: 2.5mm
- Drive: Phillips
- Material: Nylon - Natural
- Standard: DIN 965H
- Head Style: Countersunk
View our full Nylon Countersunk Screw range or browse our Nylon Screws collection.
