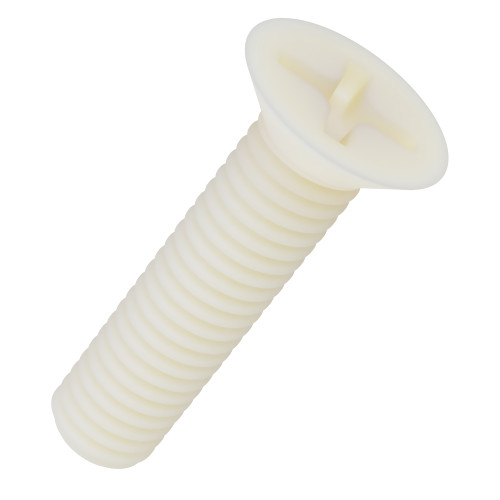

M8 x 17mm Nylon Phillips Countersunk Machine Screw (DIN 965H) | Natural
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.17 | £0.21 |
| 100 - 499 | £0.14 | £0.17 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.10 | £0.12 |
| 5000 + | £0.07 | £0.09 |
Product Specification
| Thread Size | M8 |
| Length | 17mm |
| Pitch | 1.25mm |
| Head Diameter | 14.5mm |
| Material | Nylon - Natural |
| Head Height | 4.00mm |
| Standard | DIN 965H |
| Drive | Phillips |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
M8 Phillips Head Countersunk Nylon Screw DIN 965H - 17mm Length
Commonly selected for low profile panel fastening, this M8 phillips head countersunk nylon screw uses a 17mm thread length with a 14.5mm countersunk head diameter and 4mm head height. The medium reach configuration is suited to large diameter recessed fixing positions where a flush finish is required.
Manufactured to DIN 965H from nylon, this fixing is supplied in a natural finish for lightweight assembly work. The non-corrosive body suits indoor and outdoor fitting locations, while the Phillips recess supports controlled installation into pre-threaded holes, inserts and machine threads.
Common Applications
- Non-metallic fastening points
- Countersunk mounting applications
- Panel fixing installations
- Electrical and laboratory equipment
M8 Phillips Head Countersunk Nylon Screw Dimensions
- Thread Size: M8
- Length: 17mm
- Pitch: 1.25mm
- Head Diameter: 14.5mm
- Head Height: 4mm
- Drive: Phillips
- Material: Nylon - Natural
- Standard: DIN 965H
- Head Style: Countersunk
