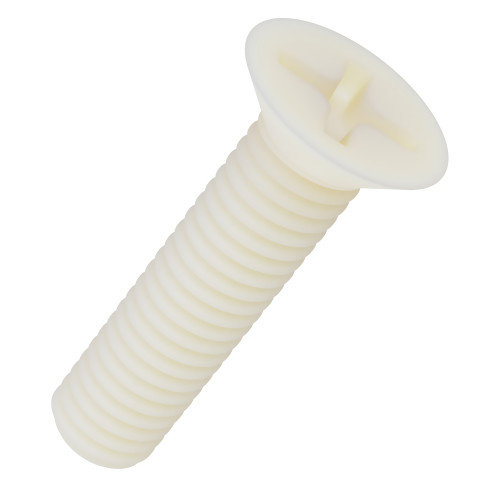

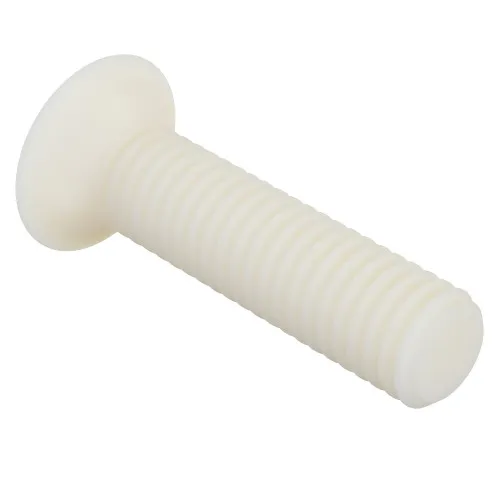

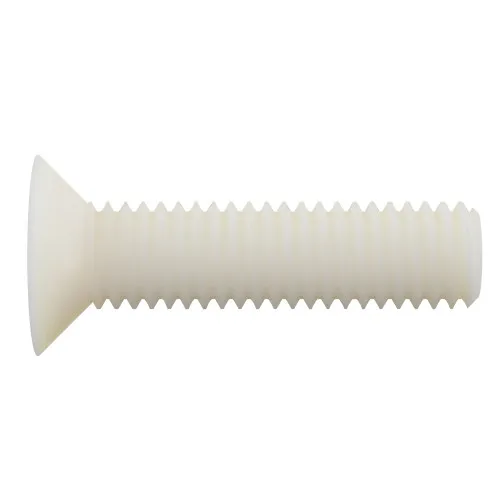

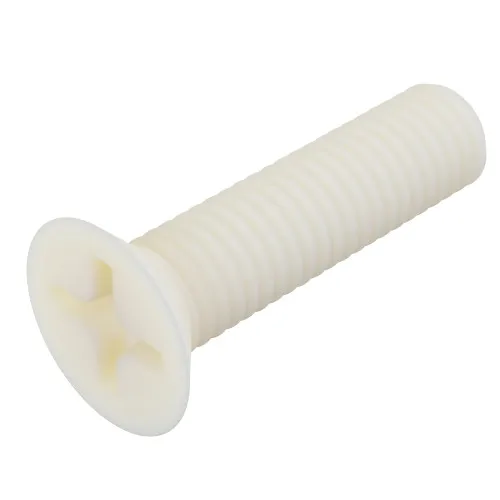

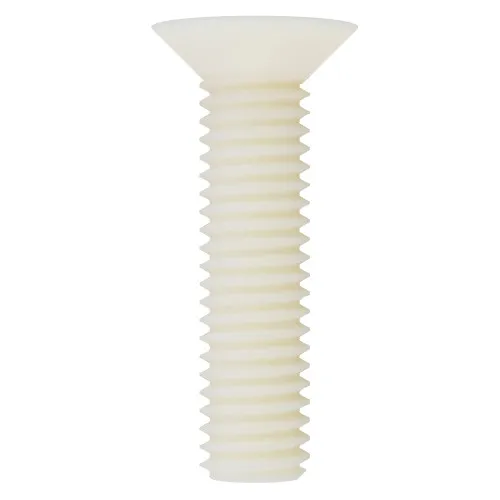

M10 x 45mm Nylon Phillips Countersunk Machine Screw (DIN 965H) | Natural
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.38 | £0.45 |
| 100 - 499 | £0.30 | £0.36 |
| 500 - 999 | £0.25 | £0.30 |
| 1000 - 4999 | £0.21 | £0.25 |
| 5000 + | £0.16 | £0.19 |
Product Specification
| Thread Size | M10 |
| Length | 45mm |
| Pitch | 1.50mm |
| Head Diameter | 20.0mm |
| Material | Nylon - Natural |
| Head Height | 5.00mm |
| Standard | DIN 965H |
| Drive | Phillips |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
M10 Phillips Head Countersunk Nylon Screw DIN 965H - 45mm Length
Specified for non-metallic machine screw applications, this M10 phillips head countersunk nylon screw uses a 45mm thread length with a 20mm countersunk head diameter and 5mm head height. The extended reach configuration is suited to large diameter recessed fixing positions where a flush finish is required.
Manufactured to DIN 965H from nylon, this fixing is supplied in a natural finish for lightweight assembly work. The corrosion resistant nylon material avoids surface rusting in damp environments, while the Phillips recess supports controlled installation into pre-threaded holes, inserts and machine threads.
Common Applications
- Instrument covers and electrical housings
- Plastic and composite fabrication work
- Flush mounted access panels
- Light engineering assemblies
M10 Phillips Head Countersunk Nylon Screw Dimensions
- Thread Size: M10
- Length: 45mm
- Pitch: 1.5mm
- Head Diameter: 20mm
- Head Height: 5mm
- Drive: Phillips
- Material: Nylon - Natural
- Standard: DIN 965H
- Head Style: Countersunk
View our full Nylon Countersunk Screw range or browse our Nylon Screws collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
