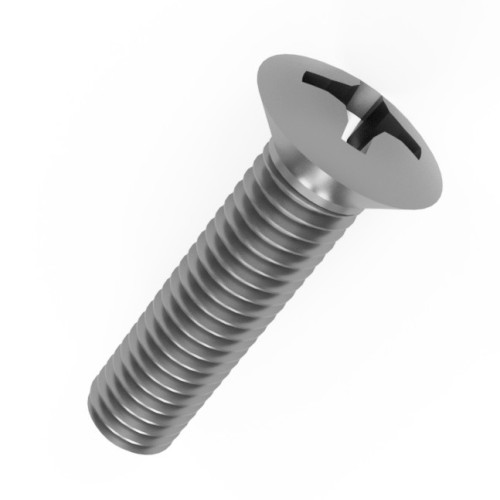

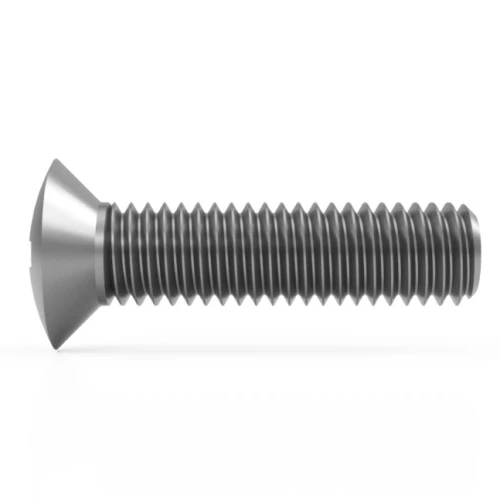

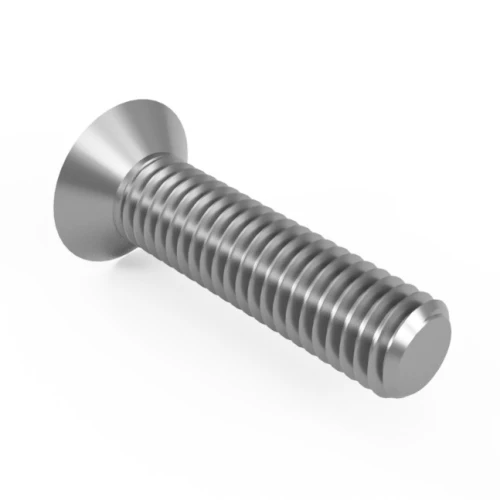

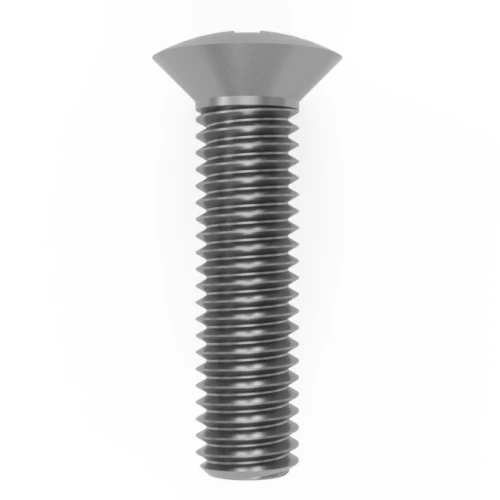

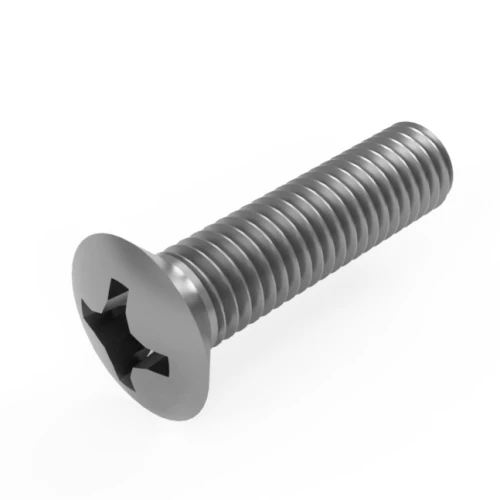

M5 x 100mm Phillips Raised Countersunk Screw (DIN 966H) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.57 | £1.89 |
| 10 - 24 | £1.26 | £1.51 |
| 25 - 49 | £0.94 | £1.13 |
| 50 - 99 | £0.78 | £0.94 |
| 100 - 499 | £0.71 | £0.85 |
| 500 - 999 | £0.63 | £0.76 |
| 1000 + | £0.47 | £0.57 |
Product Specification
| Thread Size | M5 |
| Length | 100mm |
| Drive | #2 |
| Pitch | 0.80mm |
| Head Diameter | 9.30mm |
| Head Height | 2.50mm |
| Standard | DIN 966H |
| Head Style | Raised Countersunk |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M5 x 100mm Phillips Raised Countersunk Screw DIN 966H | A2 Stainless Steel
Designed around DIN 966H machine screw installations, this extended reach machine screw combines a M5 thread size with a 100mm thread length and 0.8mm thread pitch for industrial machinery installations. The raised countersunk head profile allows the screw to seat within a countersunk hole while retaining a subtly domed appearance above the surface.
Manufactured to DIN 966H from a2 stainless steel, this screw features a 9.30mm head diameter, 2.50mm head height and PH2 Phillips drive for straightforward installation using standard cross-head tools. It is commonly used with threaded holes, inserts and mating nuts across fabrication, engineering and assembly applications.
Common Applications
- Engineering and fabrication assemblies
- Machine and equipment manufacture
- Panel and bracket installations
- Maintenance and repair operations

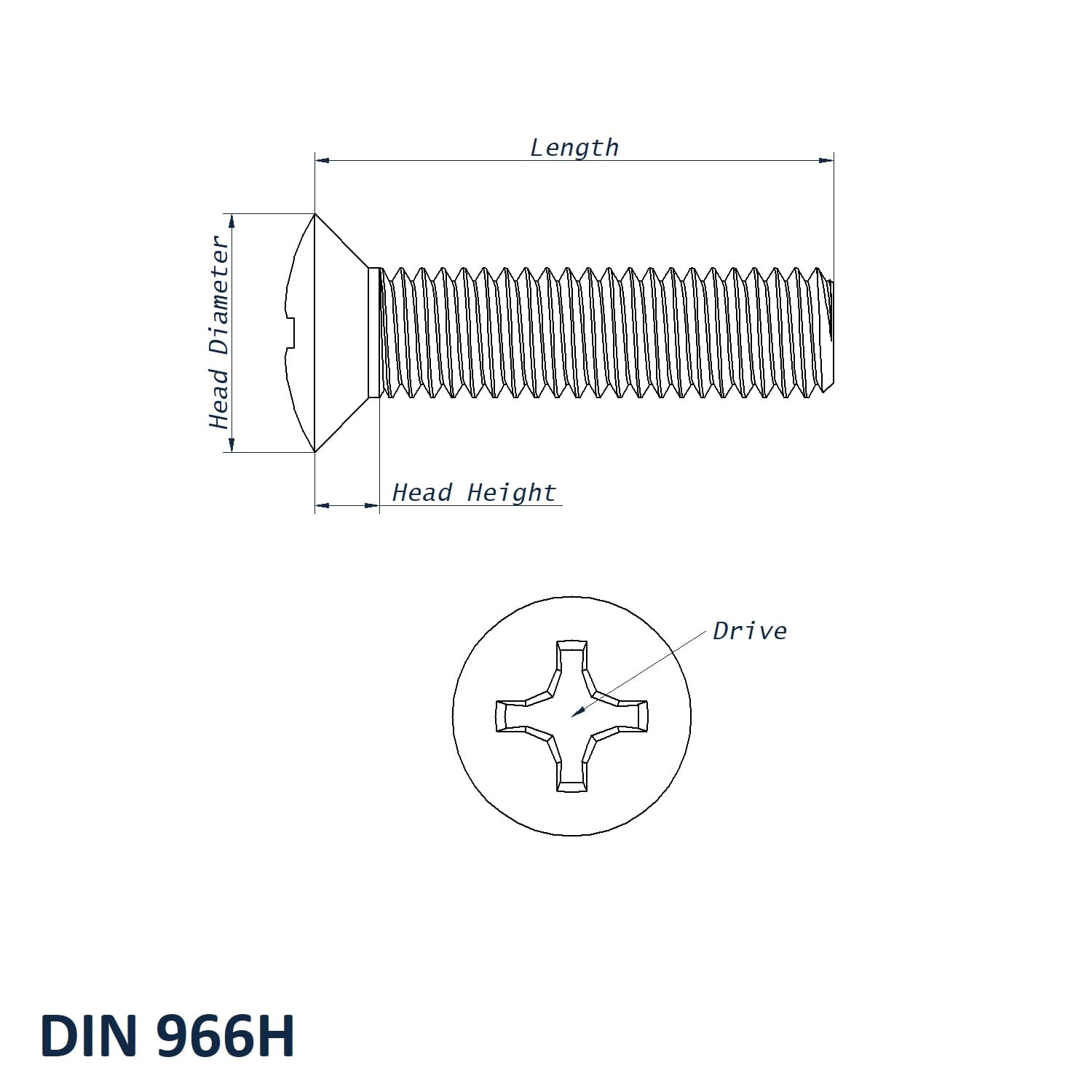

M5 Phillips Raised Countersunk Screw Dimensions
- Thread Size: M5
- Length: 100mm
- Pitch: 0.8mm
- Head Diameter: 9.30mm
- Head Height: 2.50mm
- Drive: PH2
- Material: A2 Stainless Steel
- Standard: DIN 966H
- Head Style: Raised Countersunk
View our full Raised Countersunk Screw range or browse our Countersunk Screw collection.
