M3 x 4mm Phillips Raised Countersunk Screw (DIN 966H) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.07 | £1.28 |
| 10 - 24 | £0.85 | £1.02 |
| 25 - 49 | £0.68 | £0.82 |
| 50 - 99 | £0.51 | £0.61 |
| 100 - 499 | £0.34 | £0.41 |
| 500 - 999 | £0.26 | £0.31 |
| 1000 + | £0.17 | £0.20 |
Product Specification
| Thread Size | M3 |
| Length | 4mm |
| Drive | #1 |
| Pitch | 0.50mm |
| Head Diameter | 5.60mm |
| Head Height | 1.65mm |
| Standard | DIN 966H |
| Head Style | Raised Countersunk |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M3 x 4mm Phillips Raised Countersunk Screw DIN 966H | A4 Stainless Steel
Manufactured for machine screw installations requiring a decorative head finish, this short reach machine screw combines a M3 thread size with a 4mm thread length and 0.5mm thread pitch for visible fabricated products. The raised countersunk head profile allows the screw to seat within a countersunk hole while retaining a subtly domed appearance above the surface.
Manufactured to DIN 966H from a4 stainless steel, this screw features a 5.60mm head diameter, 1.65mm head height and PH1 Phillips drive for straightforward installation using standard cross-head tools. It is commonly used with threaded holes, inserts and mating nuts across fabrication, engineering and assembly applications.
Common Applications
- Engineering and fabrication assemblies
- Machine and equipment manufacture
- Panel and bracket installations
- Maintenance and repair operations

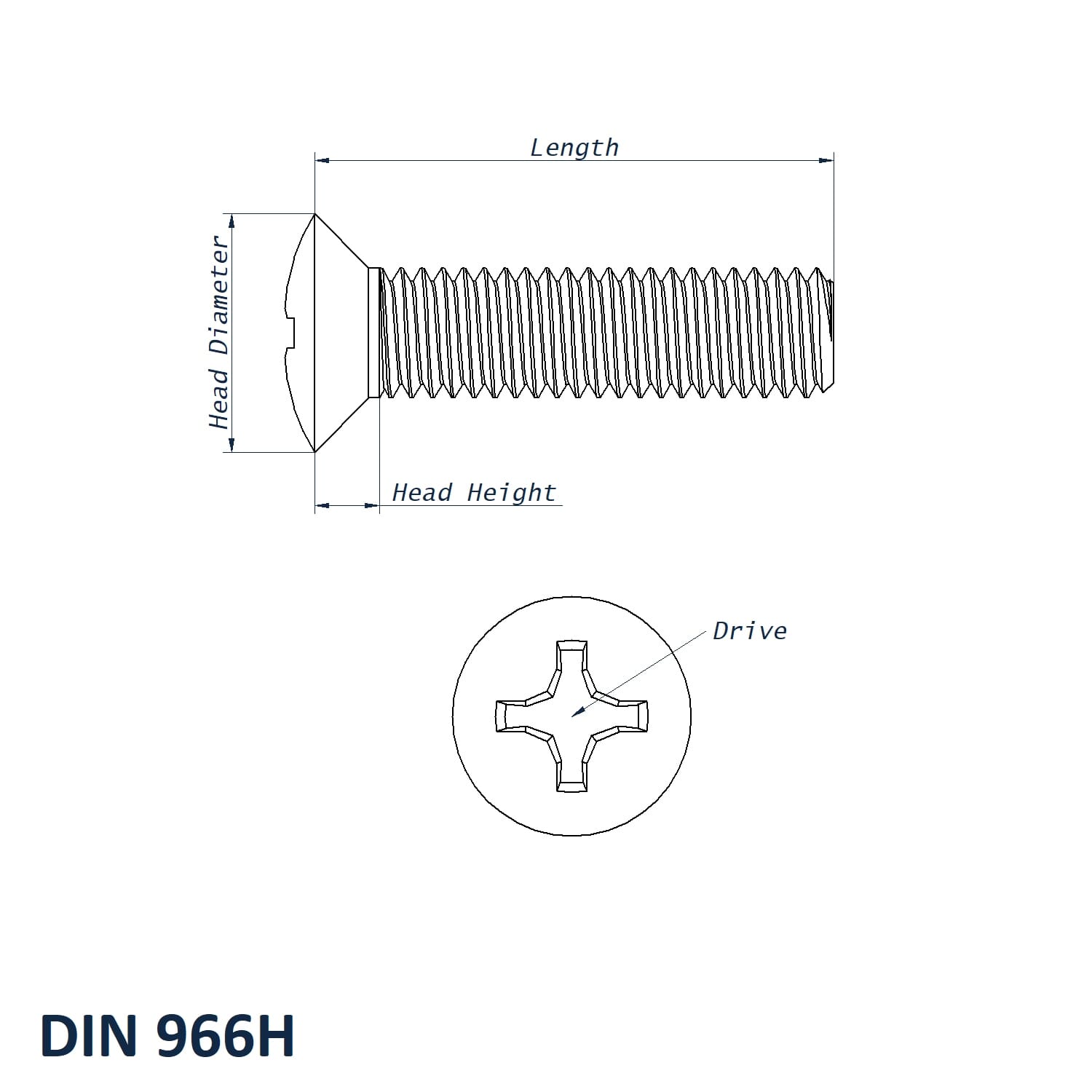

M3 Phillips Raised Countersunk Screw Dimensions
- Thread Size: M3
- Length: 4mm
- Pitch: 0.5mm
- Head Diameter: 5.60mm
- Head Height: 1.65mm
- Drive: PH1
- Material: A4 Stainless Steel
- Standard: DIN 966H
- Head Style: Raised Countersunk
View our full Raised Countersunk Screw range or browse our Countersunk Screw collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
