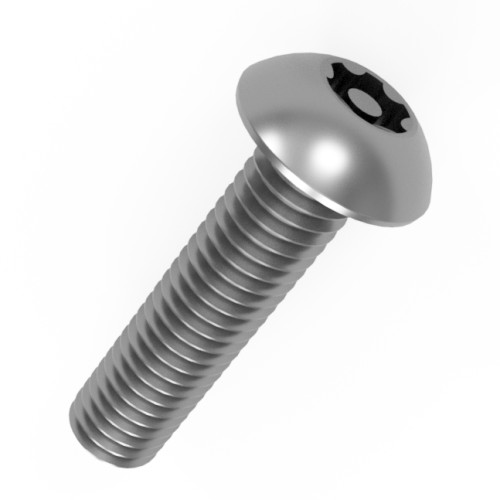

M3 x 20mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel

Product code: PTBS7380-M3-20-A2
View All Specifications
M3 x 20mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 20mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 20mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 20mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 20mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
M3 x 20mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.23 £0.27
10 - 24 £0.18 £0.22
25 - 49 £0.13 £0.16
50 - 99 £0.12 £0.14
100 - 499 £0.09 £0.11
500 - 999 £0.07 £0.09
1000 + £0.07 £0.08

£0.27 / each


Up to 92 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 36,092 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
36,092 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M3
Pitch 0.50mm
Head Diameter 5.7mm
Head Height 1.65mm
Drive Security T10
Standard ISO 7380-1
Head Style Button Head
Material A2 Stainless Steel
Length 20mm

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M3 x 20mm Pin Torx Button Head Screw (T10) – A2 Stainless Steel

The M3 x 20mm Security Pin Torx Button Head Screw combines a M3 machine thread with a Security T10 drive and a button head. Its centre pin restricts engagement by an ordinary Torx tool while allowing servicing with the correct security bit.

What Are Pin Torx Button Head Screws?

A security Pin Torx button head screw uses a central pin inside its Torx recess to stop normal Torx drivers seating fully. This M3 x 20mm fixing can be removed for planned maintenance using the matching Security T10 tool. Its Level 1 entry-level security classification indicates a deterrent to casual vandalism and opportunistic interference rather than absolute protection.

Common Applications

  • Building fixtures: Hold exposed metal fittings in place with a low-profile rounded screw head.
  • Equipment cabinets: Attach cabinet panels to matching threaded components in accessible areas.
  • Retail installations: Fix displays and brackets where additional resistance to opportunistic interference is useful.
  • Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.

M3 x 20mm Pin Torx Button Head Screw Dimensions

  • Thread Size: M3
  • Length: 20mm
  • Pitch: 0.50mm
  • Head Diameter: 5.7mm
  • Head Height: 1.65mm
  • Drive: Security T10
  • Material: A2 Stainless Steel
  • Standard: ISO 7380-1
  • Head Style: Button Head

Key Benefits

  • A clearly specified security drive size helps identify the correct installation tool.
  • The specified thread pitch supports selection for compatible tapped components.
  • Defined head dimensions help assess the clearance around the assembled fixing.
  • The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.

Explore more tamper-resistant button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
