M3 x 25mm Security Pin Torx Button Head Screw (T10) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.26 | £0.31 |
| 10 - 24 | £0.21 | £0.25 |
| 25 - 49 | £0.16 | £0.19 |
| 50 - 99 | £0.13 | £0.16 |
| 100 - 499 | £0.11 | £0.13 |
| 500 - 999 | £0.09 | £0.11 |
| 1000 + | £0.07 | £0.09 |
£0.31 / each
.png)
Product Specification
| Thread Size | M3 |
| Pitch | 0.50mm |
| Head Diameter | 5.7mm |
| Head Height | 1.65mm |
| Drive | Security T10 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 25mm |
Frequently Bought Together
Total Price: £0.00
M3 x 25mm Pin Torx Button Head Screw (T10) – A2 Stainless Steel
Designed for exposed fixings, this M3 x 25mm tamper-resistant Pin Torx Button Head Screw uses A2 Stainless Steel and a recessed Security T10 profile. Use the matching security driver to tighten it into a compatible threaded component.
What Are Pin Torx Button Head Screws?
The button head sits above the mounting surface with a rounded profile and a recessed centre-pin Torx drive. The M3 x 25mm screw must be matched to the female thread and driven with a Security T10 security bit. At Level 1 entry-level security it helps discourage casual tampering and opportunistic misuse; authorised removal remains possible.
Common Applications
- Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.
- Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.
- Public access equipment: Secure removable access panels on equipment installed in shared or public areas.
- Electrical enclosures: Fix covers to suitably threaded housings where a standard Torx driver should not operate the fastener.

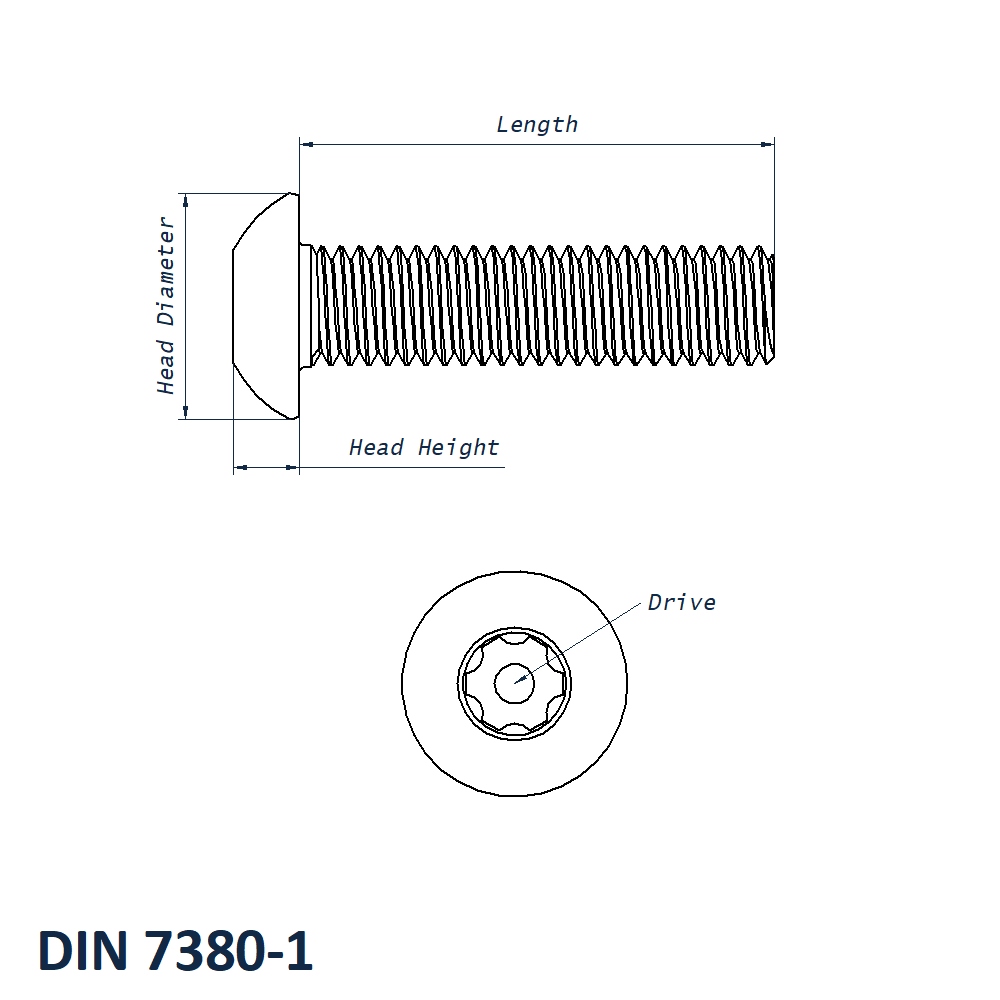

M3 x 25mm Pin Torx Button Head Screw Dimensions
- Thread Size: M3
- Length: 25mm
- Pitch: 0.50mm
- Head Diameter: 5.7mm
- Head Height: 1.65mm
- Drive: Security T10
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- A matching security Torx tool permits planned adjustment and removal.
- A2 stainless steel construction is suited to general-purpose corrosion-resistant fastenings.
- The machine thread can engage a matching female thread or be used with an appropriate nut.
- A clearly specified security drive size helps identify the correct installation tool.
Explore more centre-pin Torx screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
