M8 x 25mm Security Pin Torx Button Head Screw (T40) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.28 | £0.34 |
| 100 - 499 | £0.25 | £0.30 |
| 500 - 999 | £0.23 | £0.28 |
| 1000 + | £0.18 | £0.22 |
£0.34 / each
.png)
Product Specification
| Thread Size | M8 |
| Thread Length | 25mm |
| Pitch | 1.25mm |
| Head Diameter | 14.0mm |
| Head Height | 4.00mm |
| Drive | Security T40 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M8 x Pin Torx Button Head Screw (T40) – A2 Stainless Steel
This M8 x Pin Torx Button Head Screw is manufactured from A2 Stainless Steel with a Security T40 recess and rounded button head. It is installed into a compatible threaded hole or with a matching nut using a centre-pin security Torx driver.
What Are Pin Torx Button Head Screws?
Pin Torx button head screws are machine-thread fasteners with a six-lobe socket and central security pin. This M8 version needs a corresponding Security T40 bit rather than a standard Torx bit. The product is described as Level 1 entry-level security: it offers protection against opportunistic vandalism and interference but is not a guarantee against deliberate removal.
Common Applications
- Equipment cabinets: Attach cabinet panels to matching threaded components in accessible areas.
- Retail installations: Fix displays and brackets where additional resistance to opportunistic interference is useful.
- Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.
- Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.

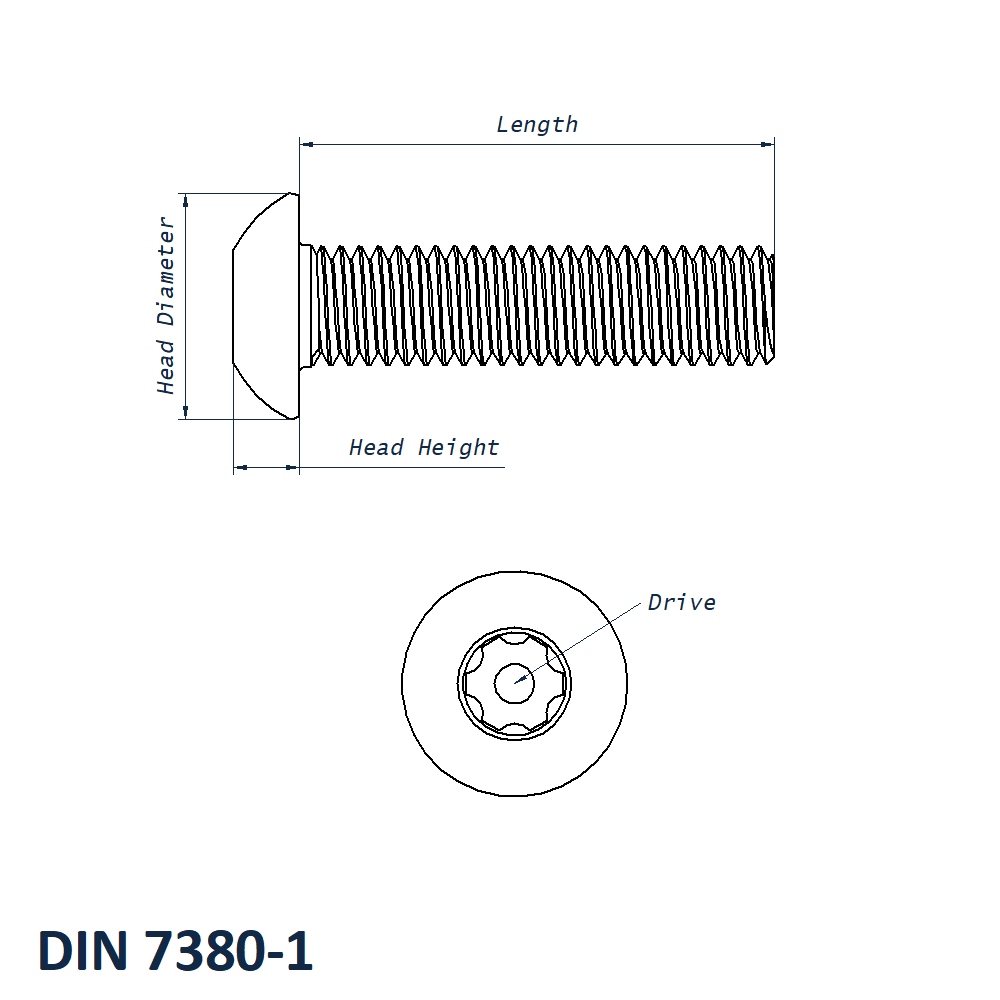

M8 x Pin Torx Button Head Screw Dimensions
- Thread Size: M8
- Thread Length: 25mm
- Pitch: 1.25mm
- Head Diameter: 14.0mm
- Head Height: 4.00mm
- Drive: Security T40
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
- The rounded button head gives the assembled fixing a relatively low-profile finish.
- A matching security Torx tool permits planned adjustment and removal.
- A2 stainless steel construction is suited to general-purpose corrosion-resistant fastenings.
Explore more security Pin Torx button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
