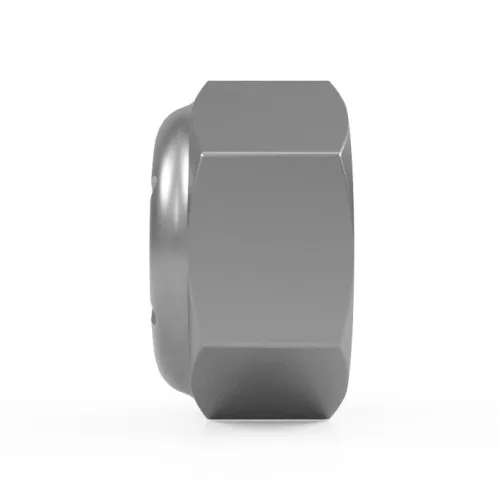

M8 Nyloc Nut (DIN 985) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.06 | £0.07 |
| 100 - 999 | £0.05 | £0.06 |
| 1000 - 9999 | £0.04 | £0.05 |
| 10000 + | £0.03 | £0.04 |
£0.07 / each
.png)
Product Specification
| Thread Size | M8 |
| Thread Pitch | 1.25mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 13mm |
| Height | 8mm |
| Standard | DIN 985 |
Frequently Bought Together
Total Price: £0.00
M8 Thin Nyloc Hex Nut | 1.25mm Pitch | DIN 985 | A2-70 Stainless Steel
Made to DIN 985, this M8 nylon lock nut uses a nylon locking ring to add resistance to rotation after installation. The 13mm across-flats dimension allows standard tool engagement while the 8mm height provides a compact alternative to taller nylon lock nut formats. The A2 stainless steel construction provides good corrosion resistance for general engineering, machinery and suitably exposed fastening applications.
What Are DIN 985 Nyloc Nuts?
Nyloc Nuts are metal hex nuts fitted with a nylon insert that grips the mating thread as the bolt passes through. This added friction creates a prevailing torque which helps the nut resist loosening under vibration, movement and repeated service conditions.
The same locking principle is available across our DIN 985 locknuts. For a taller body design, see the related DIN 982 locknuts range.
Common Applications
- Pumps and Motors: Helps maintain bolted joints on suitable equipment exposed to vibration and repeated operation.
- Furniture and Frames: Provides a compact locking nut for metal frames, brackets and adjustable furniture components.
- Transport Equipment: Supports secure fastening on suitable panels, brackets and serviceable mechanical assemblies.
- Workshop Repairs: Provides a straightforward replacement locknut for compatible metric bolted joints.
M8 DIN 985 Thin Nyloc Hex Nut Dimensions
- Thread Size: M8
- Thread Pitch: 1.25mm
- Across Flats: 13mm
- Height: 8mm
- Material: A2-70 Stainless Steel
- Standard: DIN 985
Key Benefits
- DIN 985 manufacture provides a recognised dimensional standard for thin nylon insert locknuts.
- Compact body height suits assemblies where a taller locknut may create clearance issues.
- M8 metric thread provides the specified fastening size.
- 13mm across-flats dimension provides the stated hex body width for tool engagement.
If you need help matching the thread size, pitch or material grade to your application, call us on 01233 713581.
