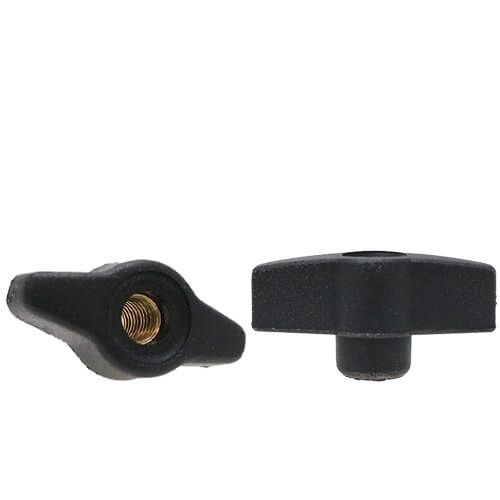

M6 Butterfly Wing Knob (Through Thread)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £1.02 | £1.23 |
| 25 - 49 | £0.89 | £1.07 |
| 50 - 99 | £0.75 | £0.90 |
| 100 - 499 | £0.66 | £0.79 |
| 500 + | £0.60 | £0.72 |
£1.23 / each
.png)
Product Specification
| Head Size | 28mm x 13mm |
| Step Size | 11mm x 3mm |
| Thread Size | M6 |
| Thread Material | Brass |
| Thread Type | Through |
Frequently Bought Together
Total Price: £0.00
M6 Style 1 Butterfly Wing Nut - 28mm x 13mm | Brass Through Thread
Ideal for compact tubular frames and small adjustable fixtures, this M6 Through Thread Butterfly Wing Nut provides quick manual adjustment through its broad 28mm x 13mm ergonomic head. The Brass thread passes through the body which allows the nut to travel further along a compatible threaded stud.
What Are Style 1 Butterfly Wing Nuts?
These through-thread Butterfly Wing Nuts use a Brass thread within a Black Thermoplastic butterfly grip. They are designed for repeated manual fastening where stud projection through the nut is acceptable or beneficial.
Common Applications
- Machinery Guards: Allows protective panels and guards to be secured or released without routine tool use.
- Display Equipment: Provides a reusable fastening point for stands and fixtures that are assembled or repositioned regularly.
- Access Panels: Allows panels or covers to be removed and refitted where regular access is required.
- OEM Assemblies: Provides a consistent tool-free fastening component for manufactured products and hardware systems.
M6 28mm x 13mm Brass Through Thread Butterfly Wing Nut Dimensions
- Head Size: 28mm x 13mm
- Step Size: 11mm x 3mm
- Thread Size: M6
- Thread Material: Brass
- Thread Type: Through
- Colour: Black
Key Benefits
- M6 metric thread gives a clear compatibility specification.
- 11mm x 3mm step size defines the lower locating section of the nut.
- Through thread format suits the specified fastening arrangement.
- Suitable for frames, guards, fixtures, stands and adjustable equipment.
View the complete Style 1 Butterfly Wing Nuts range to compare other thread sizes, head sizes and Female or Through Thread options. For help matching a wing nut to your threaded stud or application, contact the Vital Parts technical sales team on 01233 713581.
