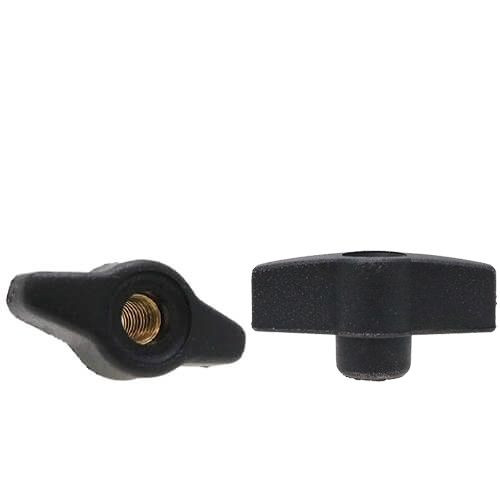

M10 Butterfly Wing Knob (Through Thread)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £2.33 | £2.79 |
| 25 - 49 | £2.02 | £2.42 |
| 50 - 99 | £1.71 | £2.05 |
| 100 - 499 | £1.49 | £1.79 |
| 500 + | £1.37 | £1.64 |
£2.79 / each
.png)
Product Specification
| Head Size | 16mm x 30mm |
| Step Size | 19mm x 12mm |
| Thread Size | M10 |
| Thread Material | Brass |
| Thread Type | Through |
Frequently Bought Together
Total Price: £0.00
M10 Style 1 Butterfly Wing Nut - 16mm x 30mm | Brass Through Thread
Designed for display hardware and compact workshop fixtures, this M10 Style 1 Butterfly Wing Nut combines an ergonomic Black Thermoplastic head with a Brass through thread. The open threaded path allows a compatible stud to continue through the nut while the 16mm x 30mm butterfly profile provides a strong hand grip.
What Are Style 1 Butterfly Wing Nuts?
These through-thread Butterfly Wing Nuts use a Brass thread within a Black Thermoplastic butterfly grip. They are designed for repeated manual fastening where stud projection through the nut is acceptable or beneficial.
Common Applications
- Clamping Assemblies: Provides hand tightening for light clamping and positioning applications on compatible threads.
- OEM Assemblies: Provides a consistent tool-free fastening component for manufactured products and hardware systems.
- Tubular Frames: Provides a hand-adjustable fixing on stands, frames and tubular equipment assemblies.
- Display Equipment: Provides a reusable fastening point for stands and fixtures that are assembled or repositioned regularly.
M10 16mm x 30mm Brass Through Thread Butterfly Wing Nut Dimensions
- Head Size: 16mm x 30mm
- Step Size: 19mm x 12mm
- Thread Size: M10
- Thread Material: Brass
- Thread Type: Through
- Colour: Black
Key Benefits
- Ergonomic butterfly shape supports regular tightening and release by hand.
- Suitable for frames, guards, fixtures, stands and adjustable equipment.
- 16mm x 30mm butterfly head provides increased finger grip for tool-free adjustment.
- Black Thermoplastic head provides a durable non-metallic hand grip.
Further variants are available through the Vital Parts Butterfly Wing Nuts category. For assistance checking thread size, head dimensions or thread type, speak with our team on 01233 713581.
