30mm x 39mm Black Plastic Countersunk Hinge for Aluminium Extrusions
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.93 | £1.12 |
| 10 - 24 | £0.87 | £1.04 |
| 25 - 49 | £0.80 | £0.96 |
| 50 - 99 | £0.69 | £0.83 |
| 100 - 499 | £0.56 | £0.67 |
| 500 + | £0.48 | £0.58 |
£1.12 / each
.png)

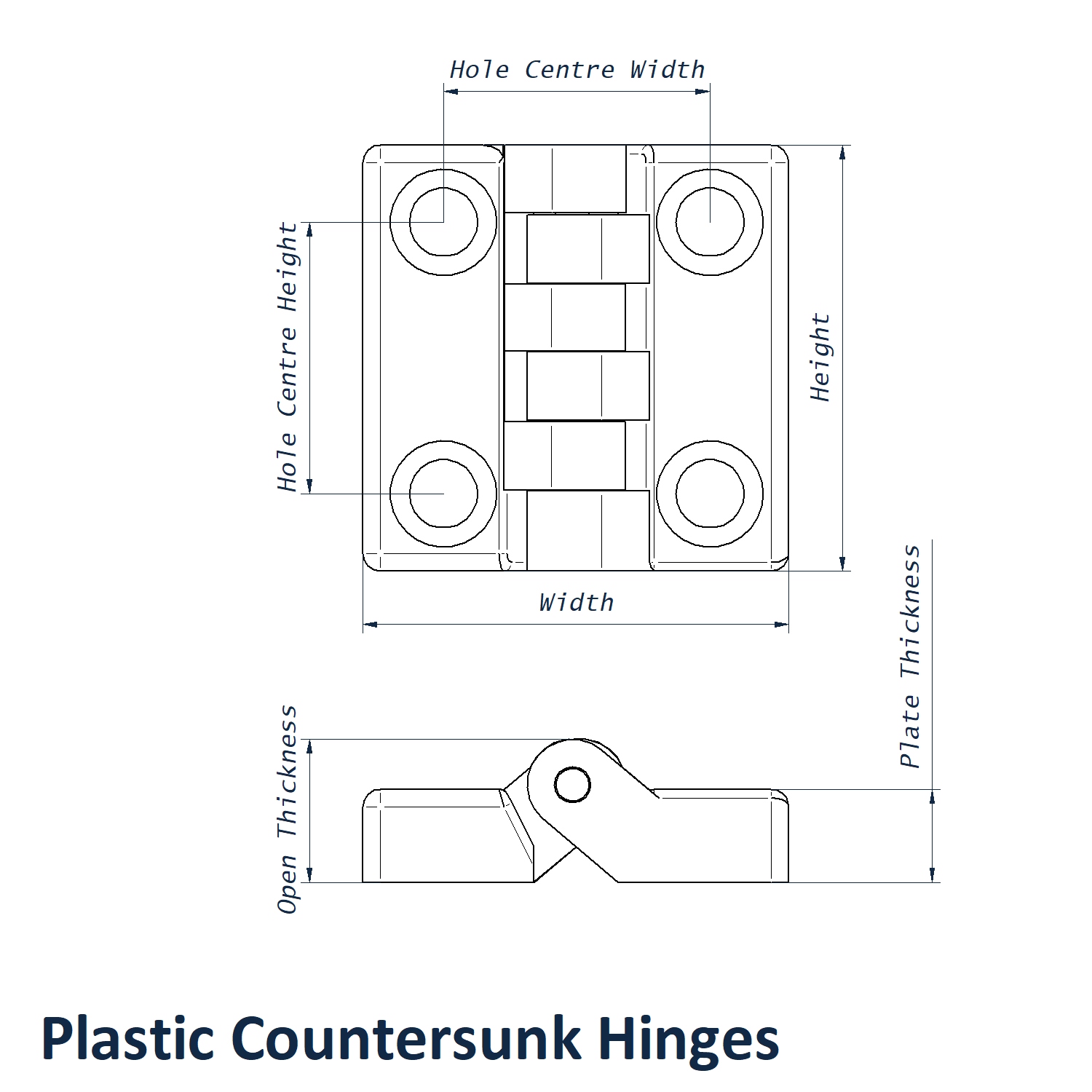

Product Specification
| Height | 30mm |
| Open Width | 39mm |
| Hole Centre Height | 23mm |
| Hole Centre Width | 14mm |
| Hole Size | 4.5mm |
| Plate Thickness | 5mm |
| Open Thickness | 9mm |
| Colour | Black |
| Material | Nylon |
Frequently Bought Together
Total Price: £0.00
30mm x 39mm Plastic Countersunk Hinge | 4.5mm Holes | Aluminium Extrusions
This 30mm x 39mm black plastic countersunk hinge is designed for aluminium extrusion assemblies, giving framework doors and access flaps a neat flush-mounted pivot point. The 4.5mm holes and narrower 14mm hole centre width make it suitable for profile-based guarding, modular frames and machine enclosure builds.
With a 5mm plate thickness and 9mm open thickness, this compact hinge is ideal where space around the extrusion face is limited but a reliable opening panel is still required. It is a useful choice for automation frames, 30mm profile systems, bench guarding and inspection windows.
Common Applications
- Aluminium extrusion doors, guards and modular machine frames
- Automation cells, conveyor covers and inspection access panels
- Laboratory benches, test rigs and lightweight framed enclosures
- OEM profile builds where countersunk fasteners provide a flush finish
30mm x 39mm 4.5mm Hole Plastic Countersunk Hinge for Aluminium Extrusions Dimensions
- Height: 30mm
- Open Width: 39mm
- Hole Centre Height: 23mm
- Hole Centre Width: 14mm
- Plate Thickness: 5mm
- Open Thickness: 9mm
- Hole Size: 4.5mm
- Material: Nylon
- Colour: Black
Choosing Plastic Countersunk Hinges
Check the hole centres against the extrusion slot position before fitting. A countersunk screw and suitable insert nut combination helps the hinge sit securely against the profile face without leaving raised fixing heads.
Commonly Paired Fixings
For aluminium profile installations, pair this hinge with compatible countersunk screws and insert nuts selected for the extrusion system. This helps create a firm fixing point on framed doors, access covers and removable guards.
View our full range of plastic countersunk hinges.
