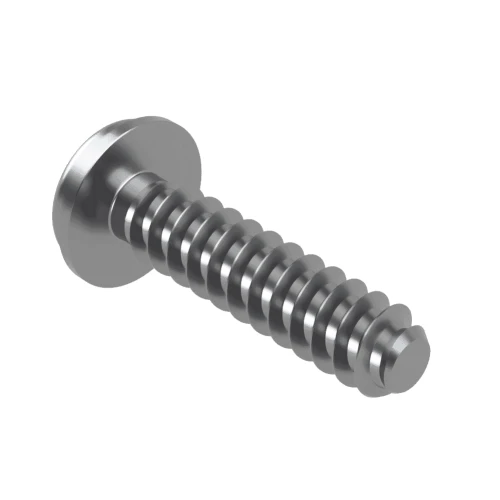

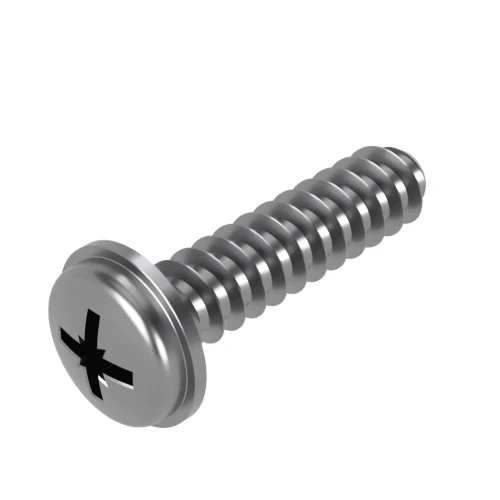

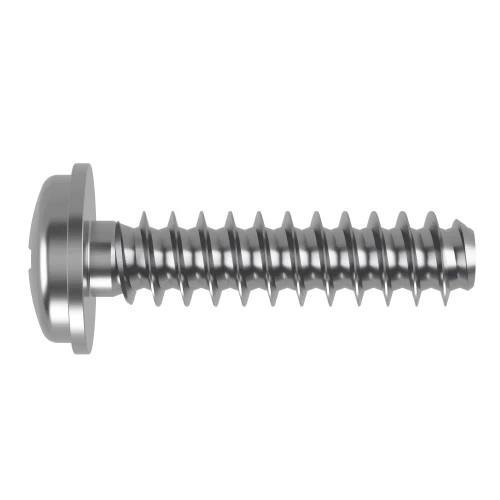

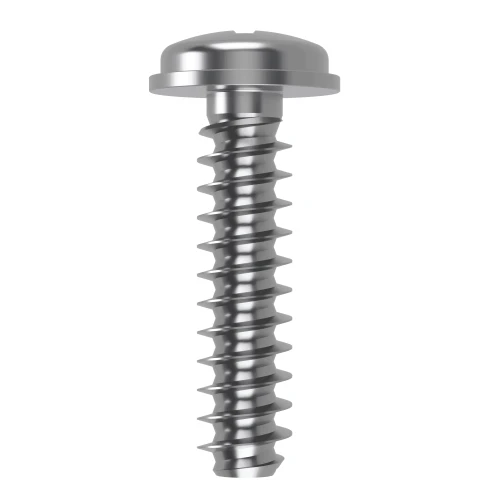

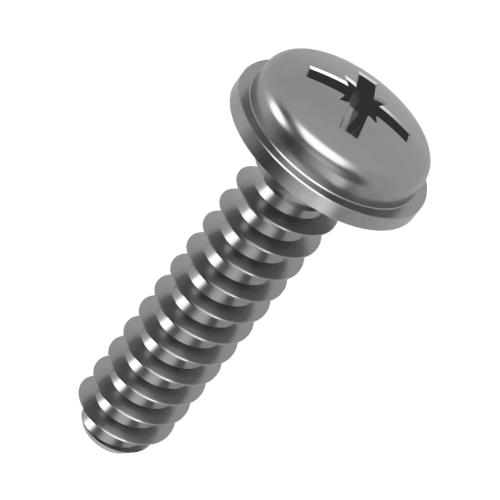

4mm x 20mm Pozi Flanged Screw for Soft Plastics (PT30) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.47 | £0.57 |
| 50 - 99 | £0.28 | £0.34 |
| 100 - 249 | £0.19 | £0.23 |
| 250 - 499 | £0.14 | £0.17 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.09 |
£0.57 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 20mm |
| Material | A2 Stainless Steel |
| Head Diameter | 8.0mm |
| Head Height | 2.50mm |
| Drive | PZ2 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00
4mm x 20mm Pozi Flanged PT30 Screw for Soft Plastics | A2 Stainless Steel
Suitable for lighting housings and plastic bezels, this 4mm x 20mm Pozi Flanged screw uses the PT30 thread profile developed for plastics. The narrow 30° flank angle helps limit outward boss stress while the 8.0mm head diameter provides a broad bearing surface over the assembly.
What Are Pozi Flanged PT30 Screws?
Pozi Flanged PT30 screws are designed for moulded or predrilled pilot holes in softer plastics such as polypropylene, ABS, LDPE and Nylon. The PZ2 drive uses a widely available tool format while the larger head diameter spreads clamping force over more of the component surface.
Common Applications
- Manufactured Plastic Parts: Supports repeatable assembly of injection-moulded components with correctly designed pilot holes.
- Plastic Enclosures: Fastens covers and panels while the wide flange spreads bearing pressure over the enclosure surface.
- Appliance Housings: Provides a dedicated plastic fastening method for covers, panels and moulded appliance components.
- Furniture Components: Secures suitable moulded plastic fittings and panels used in furniture manufacture.

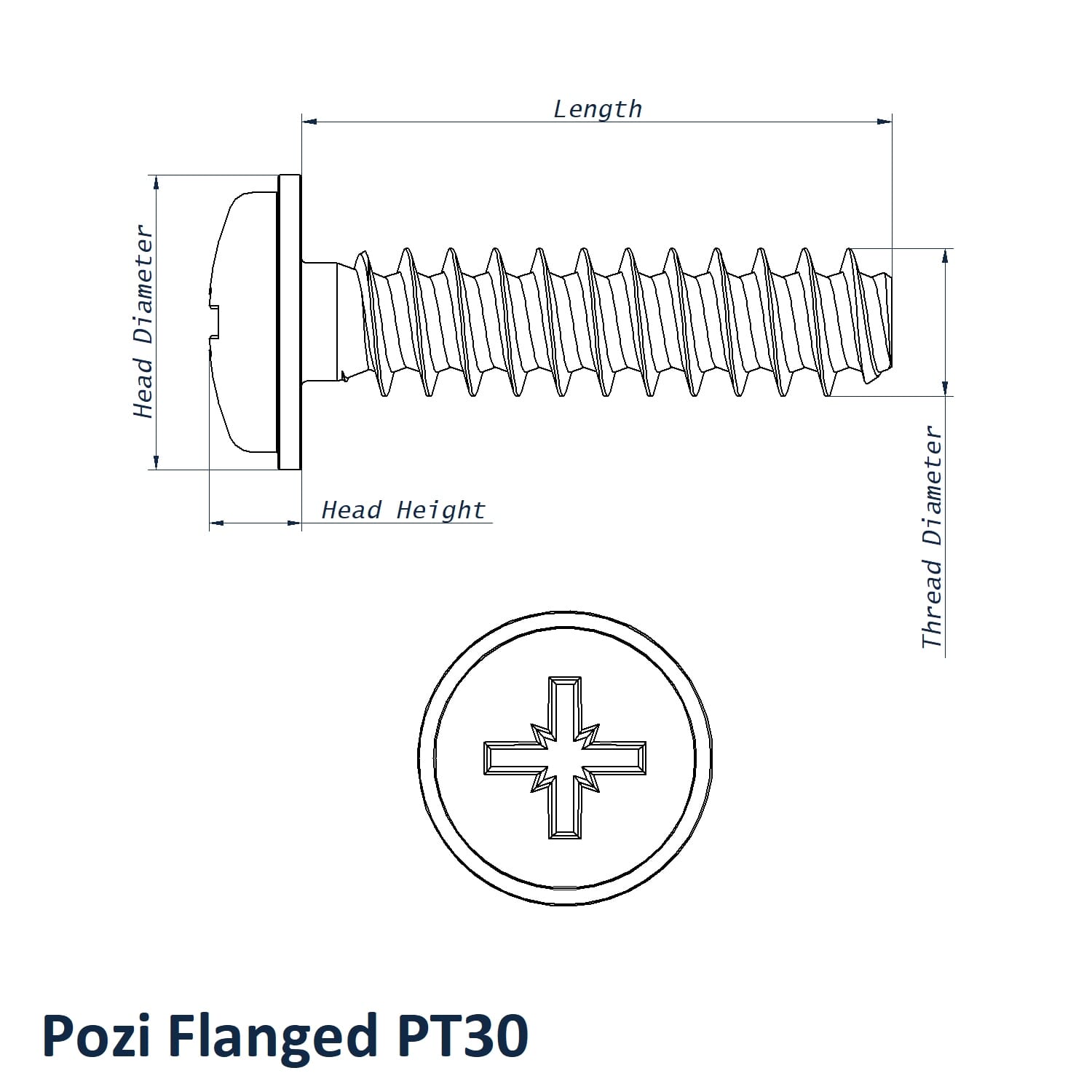

4mm x 20mm Pozi Flanged PT30 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 20mm
- Head Diameter: 8.0mm
- Head Height: 2.50mm
- Drive: PZ2
- Material: A2 Stainless Steel
- Head Style: Flanged
Key Benefits
- 2.50mm head height matches the uploaded SKU specification.
- 30° PT30 thread form helps reduce radial stress in compatible soft-plastic bosses.
- Correct pilot-hole diameter, boss size and engagement length should be selected for the plastic being assembled.
- 4mm thread size and 20mm thread length provide the primary fastening dimensions.
View the complete Pozi Flanged PT30 Screws for Soft Plastics range for alternative sizes. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
