M27 x 120mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £15.44 | £18.53 |
| 100 - 999 | £13.90 | £16.68 |
| 1000 + | £11.74 | £14.09 |
Product Specification
| Thread Size | M27 |
| Pitch | 3.00mm |
| Length | 120mm |
| Threaded Length | 60mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 41mm |
| Head Height | 17.4mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M27 x 120mm Hex Head Bolt DIN 931 | A4-70 Stainless Steel
For repair, production and installation work in outdoor equipment projects, this M27 x 120mm DIN 931 hex head bolt gives a consistent metric fixing with 60mm of thread. It is selected where a secure mechanical joint needs regular inspection or removal. Choose this long reach fastening where a part threaded shank is preferred for location and clamping.
The metric coarse thread supports dependable nut engagement, helping installers create repeatable joints across production or repair work. With a 3.00mm pitch and 41mm across flats head, it is easy to specify for heavy engineering, structural equipment and specialist plant assemblies.
Common Applications
- Replacing external steelwork in outdoor equipment projects
- Fixing weather-exposed brackets using M27 metric hardware
- Upgrading service gates where A4-70 Stainless Steel is specified
- Securing equipment housings requiring DIN 931 part threaded bolts

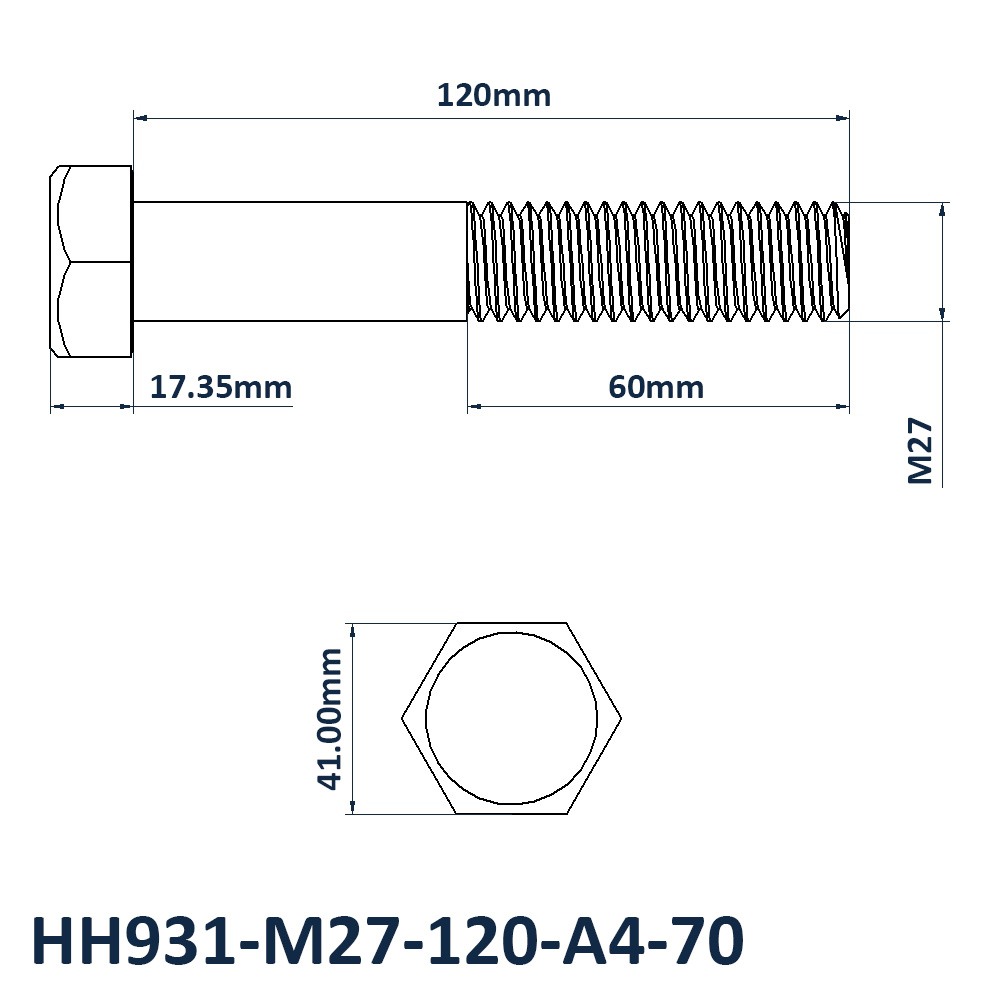

M27 x 120mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M27
- Length: 120mm
- Threaded Length: 60mm
- Pitch: 3.00mm
- Across Flats: 41mm
- Head Height: 17.4mm
- Material: A4-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
