5mm x 10mm Pozi Flanged Screw for Hard Plastics (PT45) - PZ2 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.17 | £0.21 |
| 50 - 99 | £0.11 | £0.13 |
| 100 - 249 | £0.07 | £0.09 |
| 250 - 499 | £0.05 | £0.06 |
| 500 - 999 | £0.04 | £0.05 |
| 1000 - 4999 | £0.03 | £0.04 |
| 5000 + | £0.03 | £0.03 |
£0.21 / each
.png)
Product Specification
| Thread Size | 5.0mm |
| Thread Length | 10mm |
| Material | Steel BZP |
| Head Diameter | 9.60mm |
| Head Height | 2.30mm |
| Drive | PZ2 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00

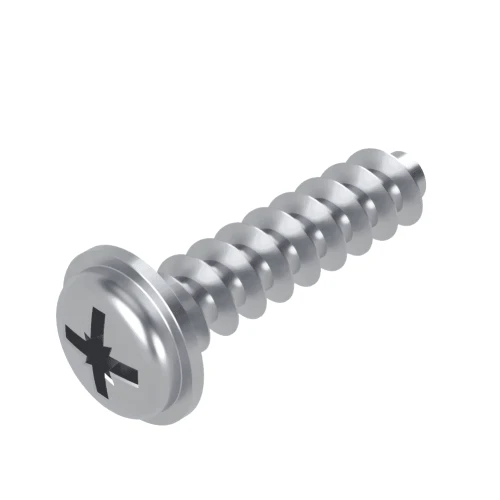

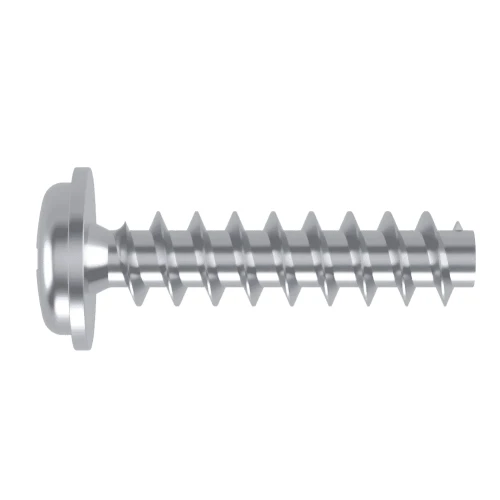

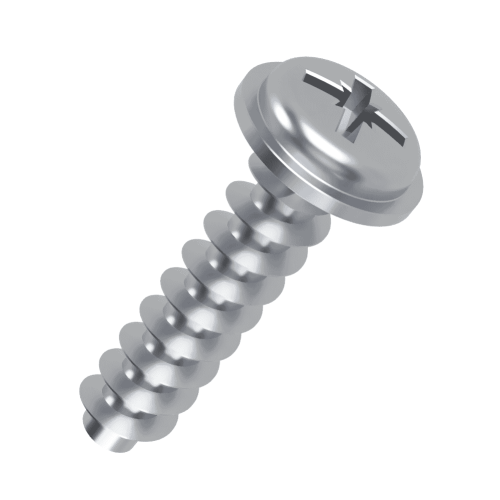

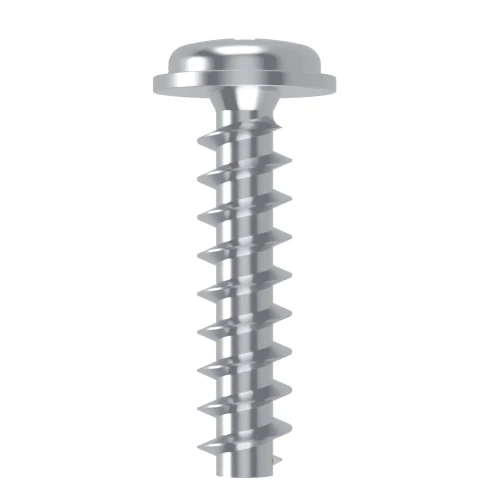

5mm x 10mm Pozi Flanged PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Offering a thread-forming solution for office equipment and plastic casings, this 5mm x 10mm PT45 Screw combines a wide Flanged head with a PZ2 Pozi recess. The Bright Zinc Plated Steel fastener uses a shorter 45° thread and trilobular body to suit compatible hard plastics and reinforced materials.
What Are Pozi Flanged PT45 Screws?
Pozi Flanged PT45 screws are designed for moulded or predrilled pilot holes in hard plastics and reinforced materials. The Pozi recess uses a widely available drive format while the wide head diameter distributes clamping pressure across more of the component surface.
Common Applications
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers and housings while the flange spreads bearing pressure over the surface.
- Consumer Electronics: Secures hard-plastic casings and panels while distributing pressure over a larger local area.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
5mm x 10mm Pozi Flanged PT45 Screw Dimensions
- Thread Size: 5.0mm
- Thread Length: 10mm
- Head Diameter: 9.60mm
- Head Height: 2.30mm
- Drive: PZ2
- Material: Steel BZP
- Head Style: Flanged
Key Benefits
- 9.60mm head diameter gives the Flanged head a broad bearing surface.
- PZ2 Pozi drive uses a widely available drive format for production and maintenance.
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor hard-plastic assemblies.
- 5mm thread size and 10mm thread length provide the primary fastening dimensions.
Compare other sizes in the Vital Parts Pozi Flanged PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
