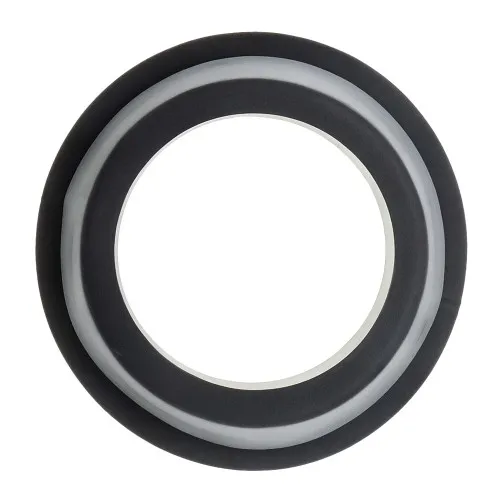

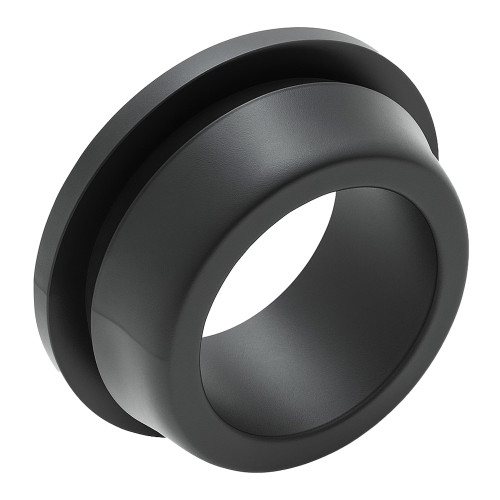

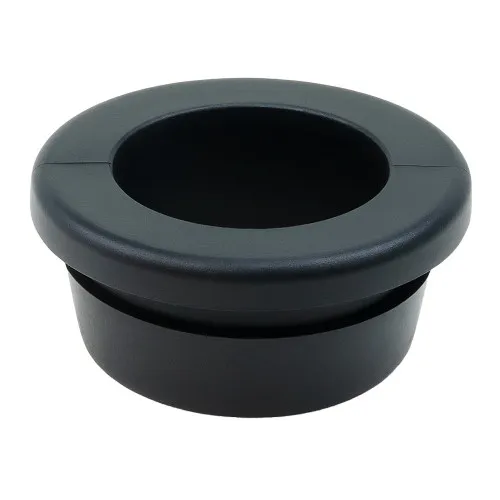

9.5mm Quick Fit Grommet - 14mm Mounting Hole (3mm Panel Thickness) | Black PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.29 | £0.35 |
| 1000 - 2499 | £0.19 | £0.23 |
| 2500 - 4999 | £0.17 | £0.20 |
| 5000 + | £0.09 | £0.11 |
£0.35 / each
.png)

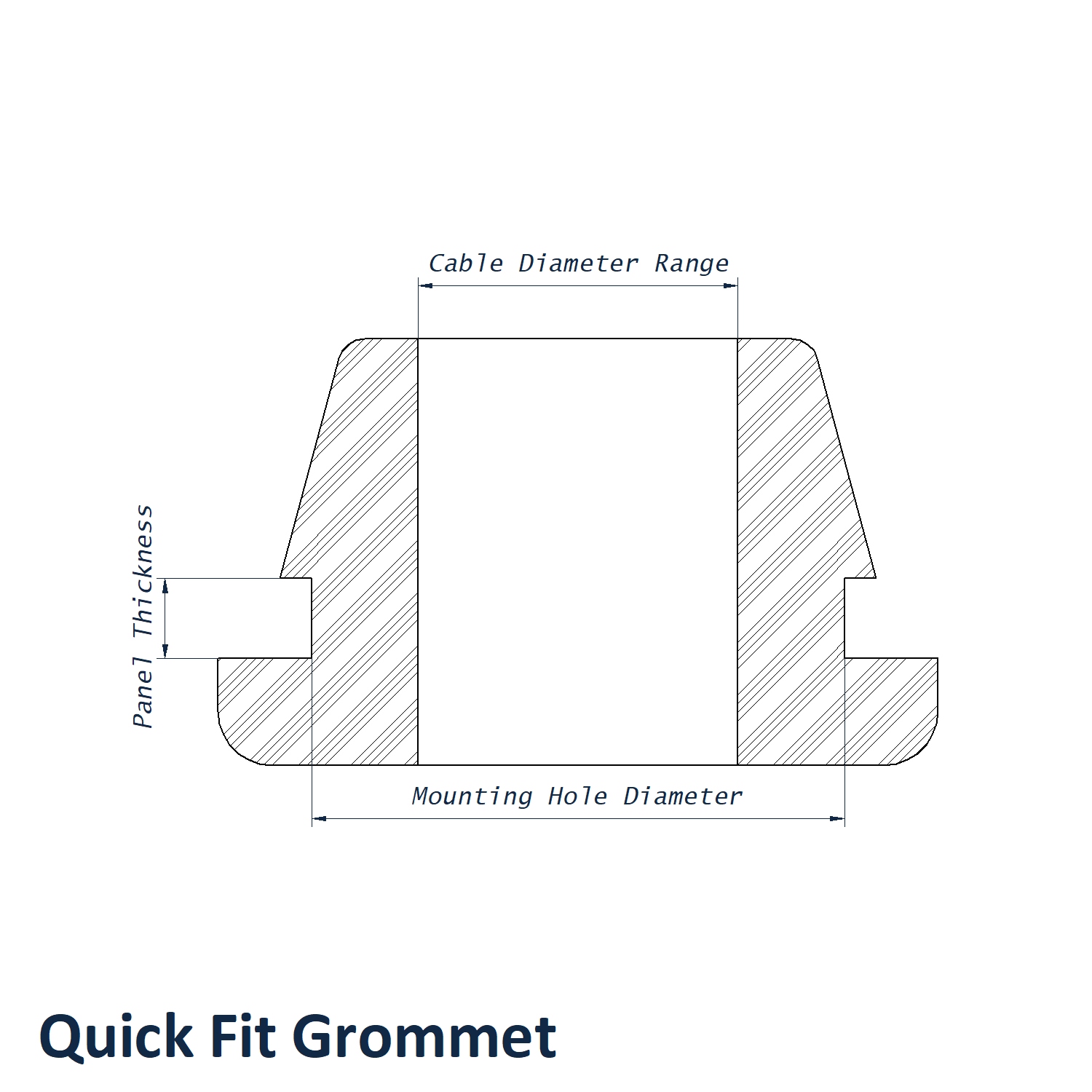

Product Specification
| Mounting Hole Diameter | 14mm |
| Panel Thickness | 3.0mm |
| Colour | Black |
| Head Height | 2mm |
| Internal Diameter | 10mm |
| Material | PVC |
| Total Height | 9.5mm |
Frequently Bought Together
Total Price: £0.00
14mm Quick Fit Rubber Grommet | 10mm Internal | 3mm Panel | Black PVC

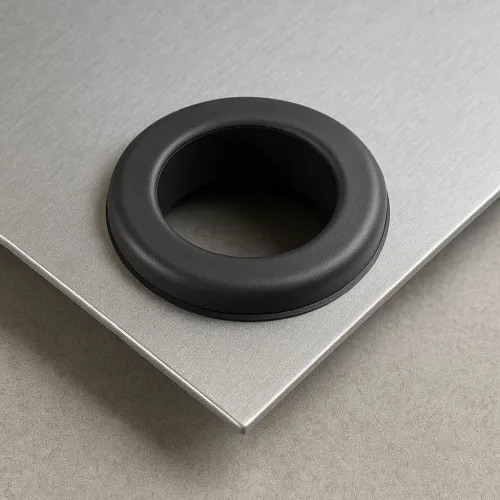

This 14mm rubber hole grommet is designed to snap into a compatible panel opening and provide a protected passage for cables or wires. The 10mm internal diameter accommodates the routed cable while the 3mm panel-thickness specification identifies the intended sheet thickness for consumer electronics and appliance assemblies.
What Are Quick Fit Rubber Grommets?
Quick Fit Rubber Grommets are push-in cable-protection components designed to locate in prepared panel holes. Their snap-fit profile allows rapid installation while the central opening provides a protected route for cables and wires through sheet material.
Our broader cable grommets selection provides alternative profiles for cable protection, blanking and panel-entry applications.
Common Applications
- Workshop Equipment: Protects routed cables passing through guards, covers and machine panels during installation or repair.
- Data Equipment: Provides cable-edge protection through suitable network, communications and electronics enclosures.
- Equipment Covers: Creates a defined cable passage through removable panels and service covers.
- General Manufacturing: Supports repeatable cable routing through pre-cut panel openings during assembly.
14mm Quick Fit Rubber Grommet Dimensions
- Mounting Hole Diameter: 14mm
- Panel Thickness: 3.0mm
- Internal Diameter: 10mm
- Total Height: 9.5mm
- Head Height: 2mm
- Material: PVC
- Colour: Black
Key Benefits
- Central opening helps keep cables away from exposed panel edges.
- 14mm mounting-hole diameter provides the required panel opening size.
- 9.5mm total height provides the complete grommet profile.
- PVC construction provides a flexible quick-fit body for suitable panel applications.
See more quick fit rubber grommets for compatible panel and cable-routing requirements. For sizing support, speak with our team on 01233 713581.
