6mm x 20mm Stainless Steel Quick Release Detent Pin

6mm x 20mm Quick Release Detent Pins - 304 Stainless Steel | Vital Parts - QRDP002

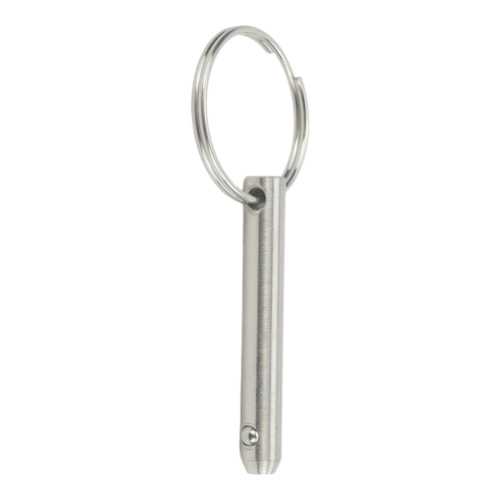

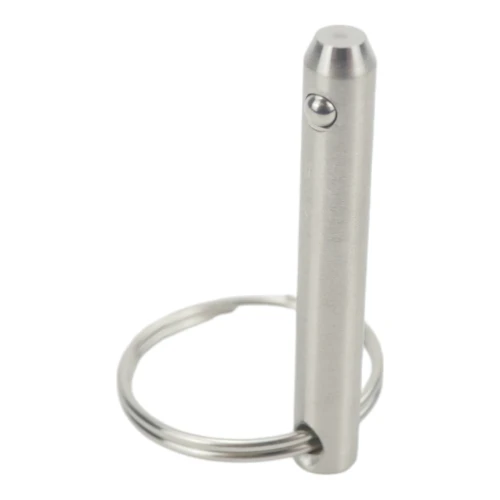

Our Quick Release Detent Pins are made up of a stainless steel shaft and two spring-loaded stainless steel ball bearings. To use this variation, tug at the pull ring to compress the springs which in turn retracts the ball bearings and allows the pin to be easily removed.

The pull ring offers two functions during use: it acts as an attachment point for a retaining chain to prevent loss and serves as a means of removal thanks to its smooth finish and compact design. Manufactured from 304 stainless steel, these detent pins are durable, corrosion resistant and designed for long-term use in demanding environments.

What Are Quick Release Detent Pins?

Quick Release Detent Pins are tool-free fasteners used to secure or position parts that need regular adjustment. Their self-springing design and simple pull-release operation make them ideal for high-traffic or serviceable areas. This variant is designed to be inserted into a hole 0.1mm larger than the body diameter for proper engagement.

Click here to view our full Guide to Detent Pins ,showcasing the different types, their functions and how to use them effectively across various applications.

Key Features:

• Corrosion-resistant 304 stainless steel body
• Easily removable with integrated pull ring
• Compact and adaptable design with smooth finish
• Self-springing ball detent mechanism for secure locking
• Compliant with RoHS, REACH, Conflict Materials and California Prop 65

Common Applications and Industries

• Fitness and gym equipment - adjustable weight stack pins for strength machines
• Aerospace and aviation - quick fastening for seats, panels and cargo systems
• Automotive and motorsport - removable race parts and body panel retention
• Marine and boating - detachable fittings and corrosion-resistant deck hardware
• Manufacturing and assembly - jigs, fixtures and quick-change tooling
• Construction and scaffolding - adjustable bracing or frame lockout applications
• Military and defence - modular kits and gear requiring rapid deployment
• Agriculture and farming equipment - fast connection of attachments and guards
• Medical and mobility equipment - tool-free locking for hospital or rehab gear
• Event staging and AV equipment - lighting rigs, speaker mounts and portable platforms

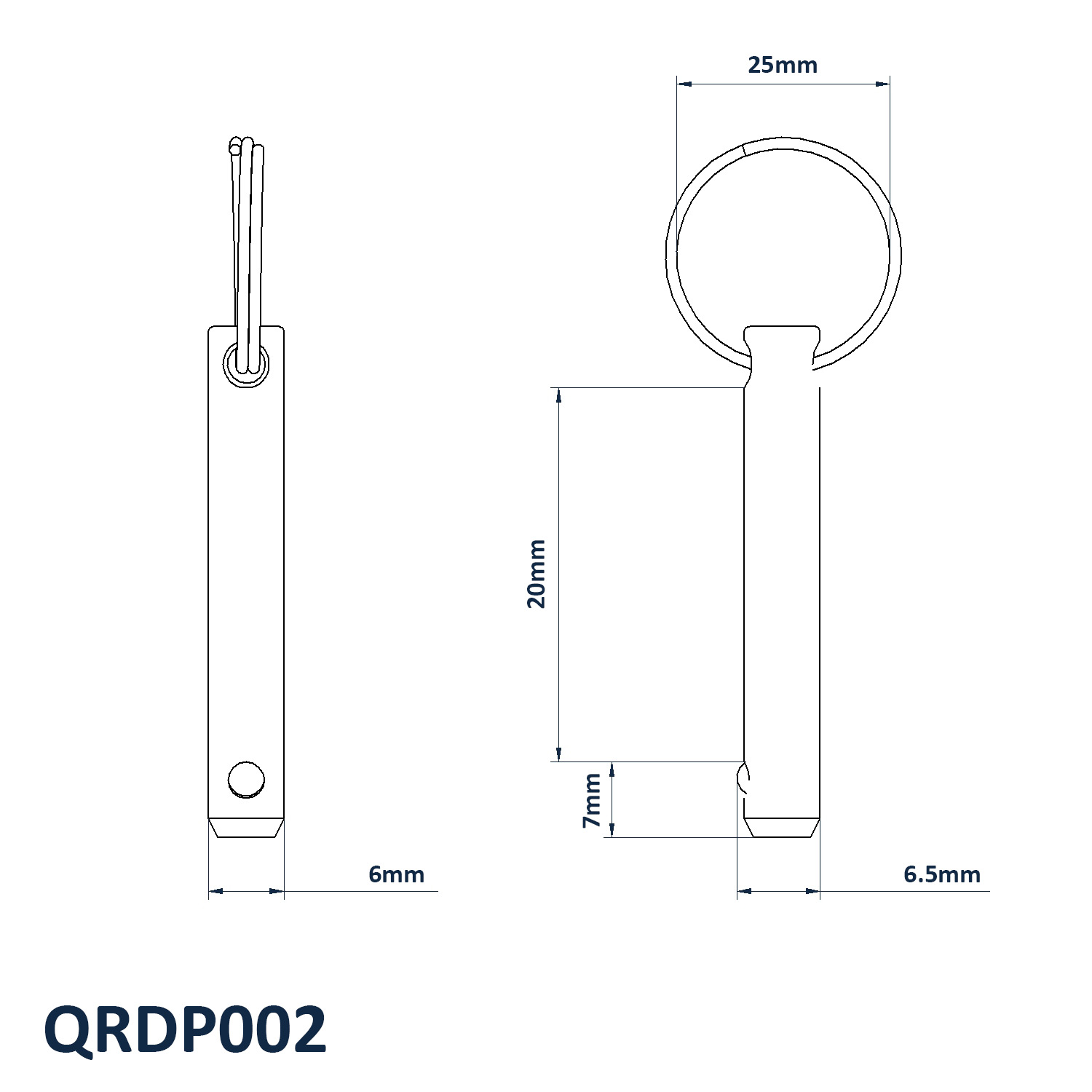

Technical Specifications:

• Pin Diameter : 6mm
• Grip Length : 20mm
• Exposed Length : 7mm
• Pull Ring Diameter : 25mm
• Extended Ball Diameter : 6.5mm

Installation Notes:

This variant is designed to be inserted into a hole 0.1mm larger than the diameter of the pin body to ensure a precise and secure fit.

Why Choose Quick Release Detent Pins?

• Fast, tool-free locking and removal
• Durable stainless steel construction for longevity
• Compact design ideal for tight or mobile assemblies
• Suited to high-use environments and adjustable systems

Cannot find the detent pin you are looking for? Give us a call on 01233 713581 to speak with our technical team.
