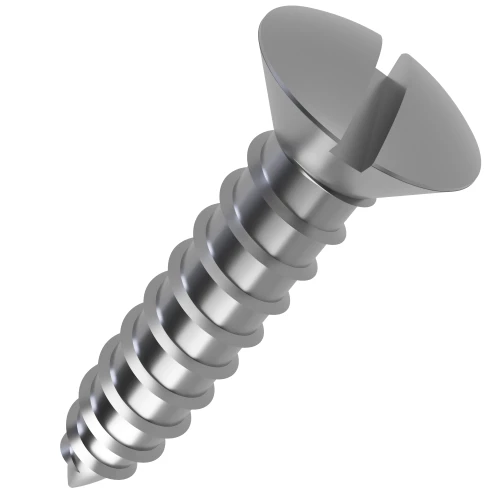

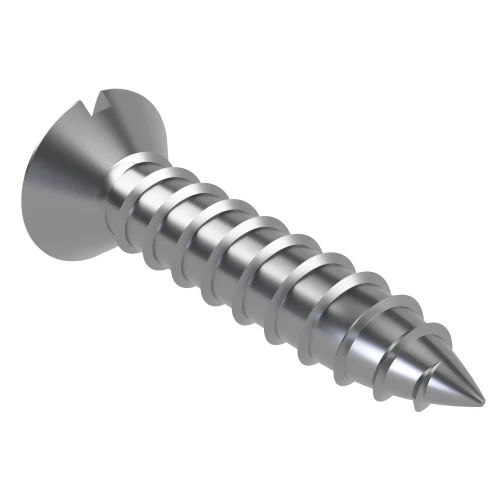

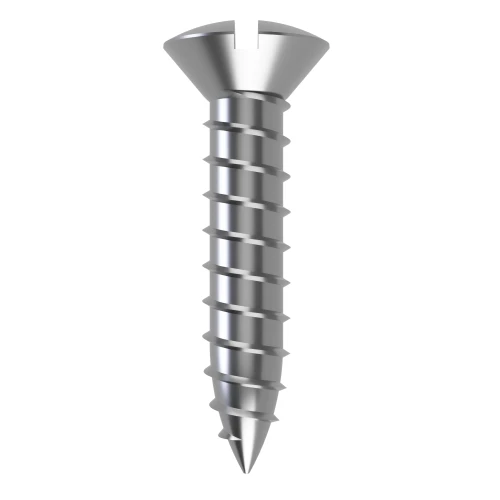

3.5mm x 22mm Slotted Raised Countersunk AB Self Tapping Screw (DIN 7973C) | A2 Stainless Steel
Product code:
ST7973C-3.5-22-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.17 | £0.20 |
| 100 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 + | £0.07 | £0.08 |
£0.20
/ each
Quantity:
Product Specification
| Thread Size | 3.5mm |
| Length | 22.0mm |
| Head Diameter | 6.8mm |
| Head Height | 2.10mm |
| Drive | Slotted |
| End Type | B |
| Standard | DIN 7973C |
| Material | A2 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
3.5mm x 22mm Slotted Raised Countersunk Self Tapping Screw | DIN 7973C | A2 Stainless Steel
Suitable for marine equipment maintenance and production use, this 3.5mm x 22mm raised countersunk access panel screw supports dependable panel retention when fitted into compatible sheet materials.
The B end type is suited to self tapping installation, helping the screw form its own mating thread when assembling control cabinets. For trailer manufacture teams, it provides a useful alternative to bulkier fixings when a raised countersunk finish is preferred.
Common Applications
- Workshop metal fabrication
- OEM equipment manufacture
- Trim and finishing panels
- Bracket and support fixing

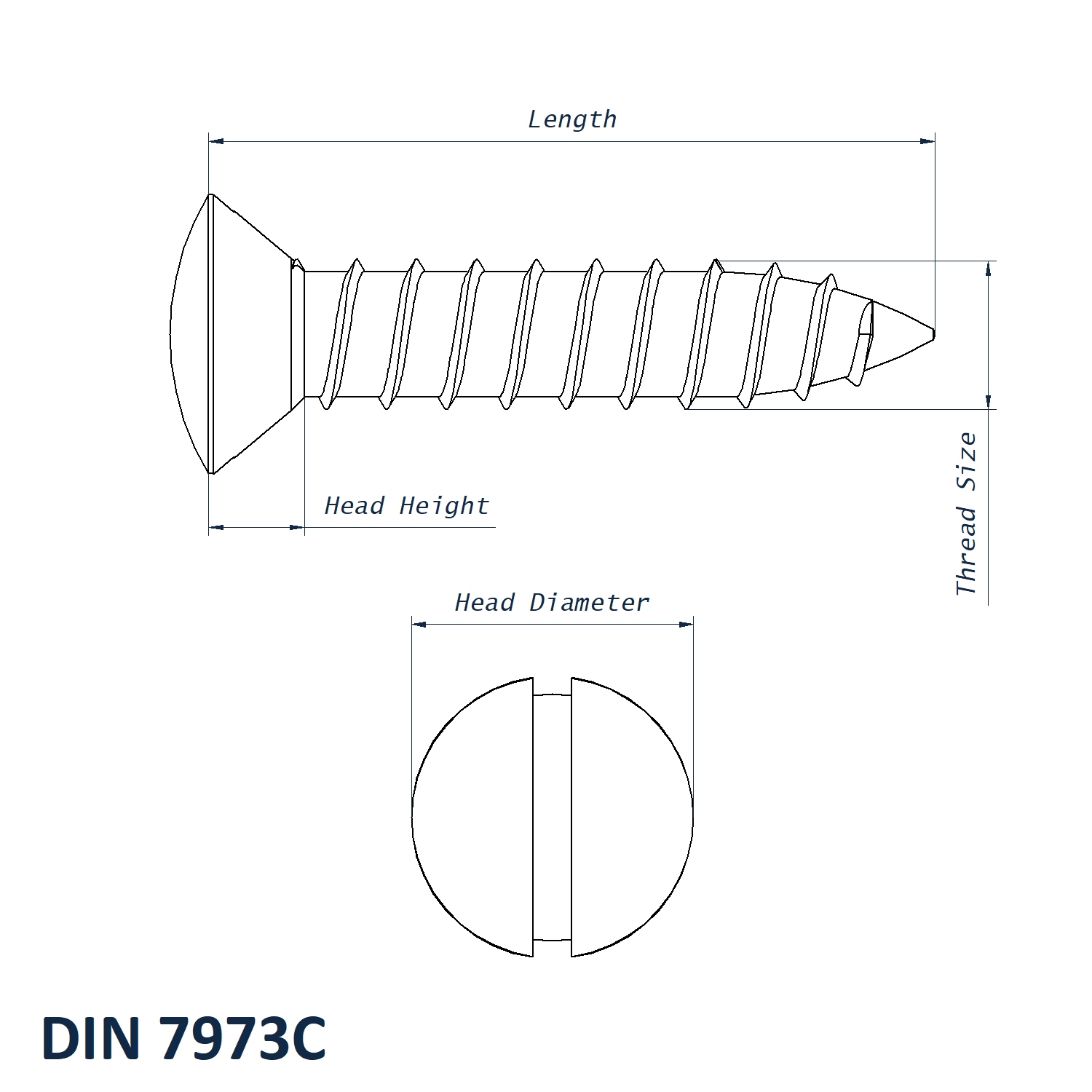

3.5mm x 22mm Slotted Raised Countersunk Screw Dimensions
- Thread Size: 3.5mm
- Length: 22mm
- Head Diameter: 6.8mm
- Head Height: 2.10mm
- Drive: Slotted
- End Type: B
- Standard: DIN 7973C
- Material: A2 Stainless Steel
View our full Raised Countersunk AB Self Tapping Screws Range.
