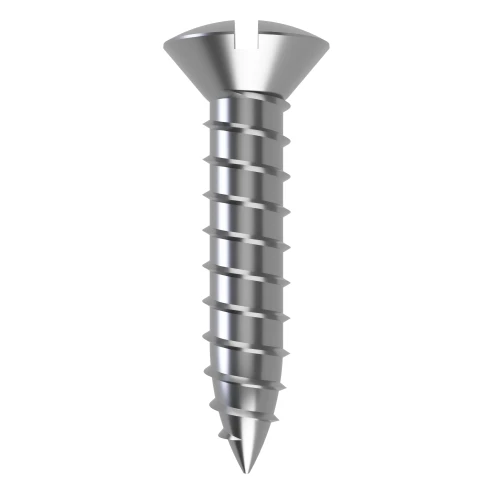

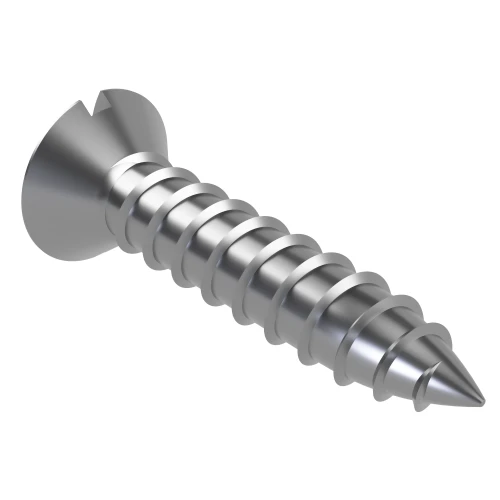

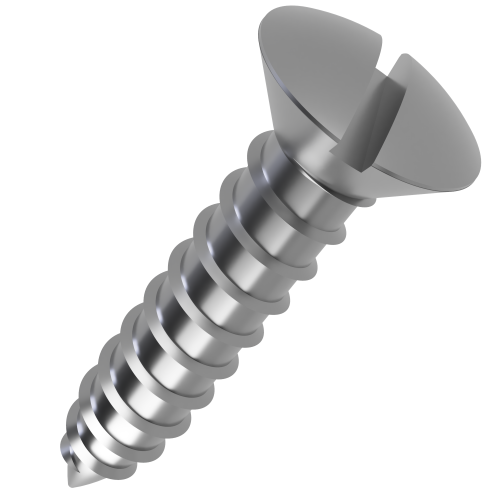

6.3mm x 22mm Slotted Raised Countersunk AB Self Tapping Screw (DIN 7973C) | A2 Stainless Steel
Product code:
ST7973C-6.3-22-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.57 | £0.68 |
| 100 - 499 | £0.34 | £0.41 |
| 500 - 999 | £0.29 | £0.35 |
| 1000 + | £0.23 | £0.27 |
£0.68
/ each
Quantity:
Product Specification
| Thread Size | 6.3mm |
| Length | 22.0mm |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Drive | Slotted |
| End Type | B |
| Standard | DIN 7973C |
| Material | A2 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
6.3mm x 22mm Slotted Raised Countersunk Self Tapping Screw | DIN 7973C | A2 Stainless Steel
Used where fitting access panels must be completed cleanly, this 6.3mm x 22mm Slotted raised countersunk control cabinet screw gives a self tapping fixing with a raised countersunk seat.
The combination of DIN 7973C, B end type and A2 stainless steel material makes this a consistent choice for repeat production use. It is often chosen for automotive because it can reduce fitting time while keeping a tidy visible head.
Common Applications
- Maintenance replacement fixings
- Equipment cover plates
- Display equipment fabrication
- Manufactured assembly lines

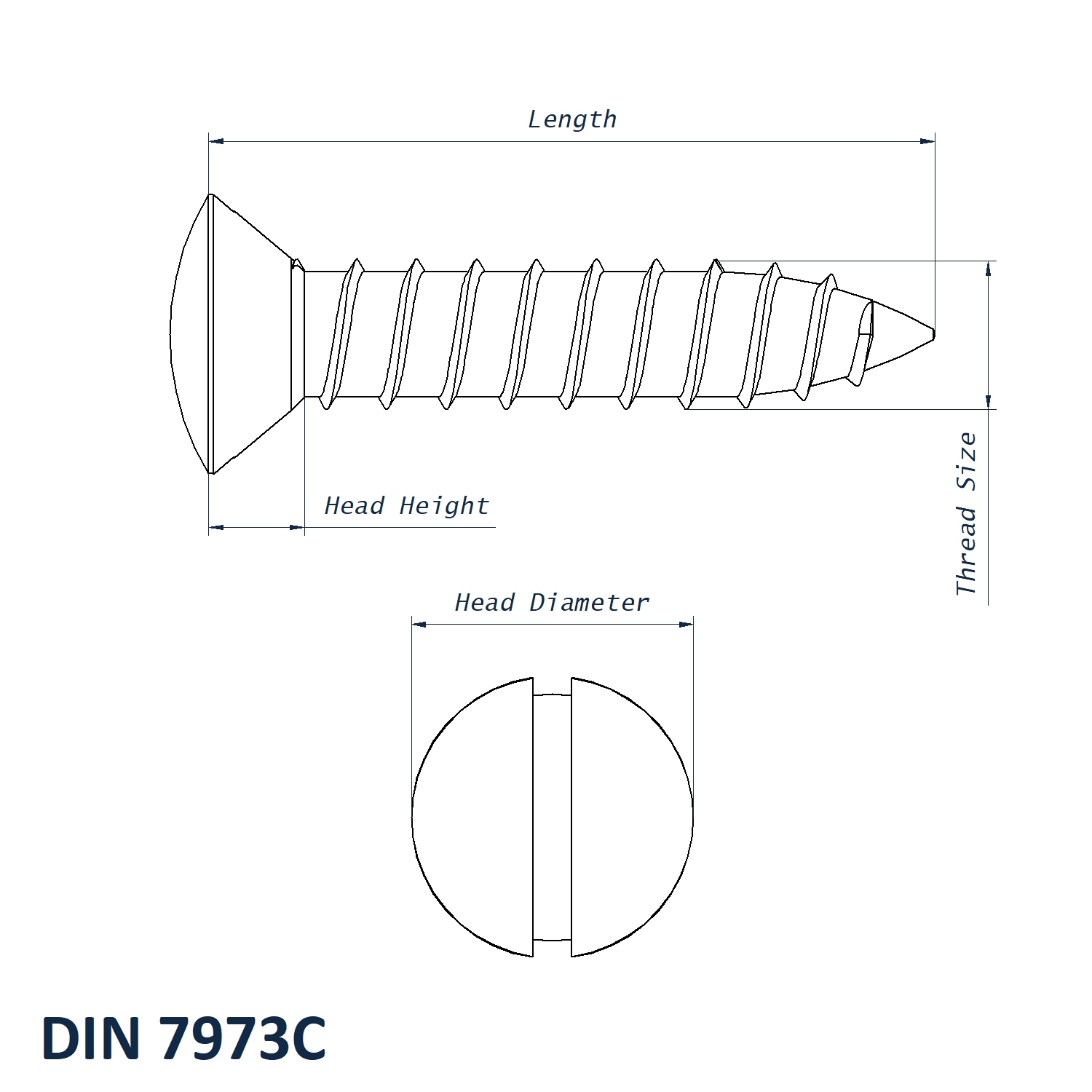

6.3mm x 22mm Slotted Raised Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 22mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- Drive: Slotted
- End Type: B
- Standard: DIN 7973C
- Material: A2 Stainless Steel
View our full Raised Countersunk AB Self Tapping Screws Range.
