Right Angle Strain Relief Bushings - STRB291R
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £2.72 | £3.26 |
| 2 - 249 | £2.59 | £3.11 |
| 250 - 499 | £2.35 | £2.82 |
| 500 - 999 | £2.10 | £2.52 |
| 1000 - 2499 | £1.85 | £2.22 |
| 2500 - 4999 | £1.61 | £1.93 |
| 5000 + | £1.36 | £1.63 |
Product Stock
| Product Specifications | STRB291R |
|---|---|
| Mounting Hole Diameter | 22.2mm |
| Prevent Rotation | 20.7mm |
| Panel Thickness | 3.2mm |
| Min Cable Diameter | 13.5mm |
| Max Cable Diameter | 14.2mm |
| Total Length | 34.5mm |
| Colour | White |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

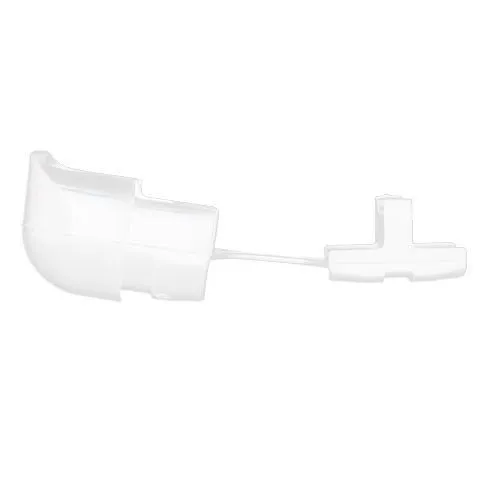

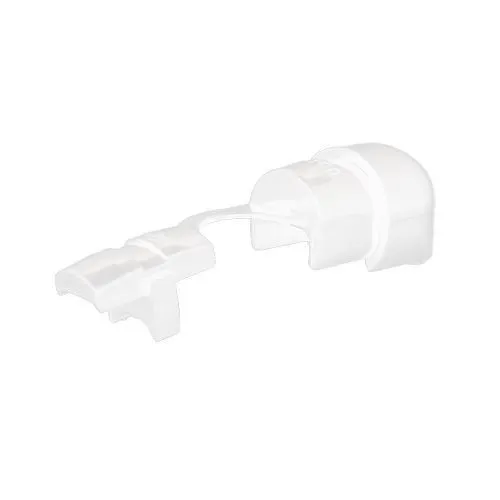

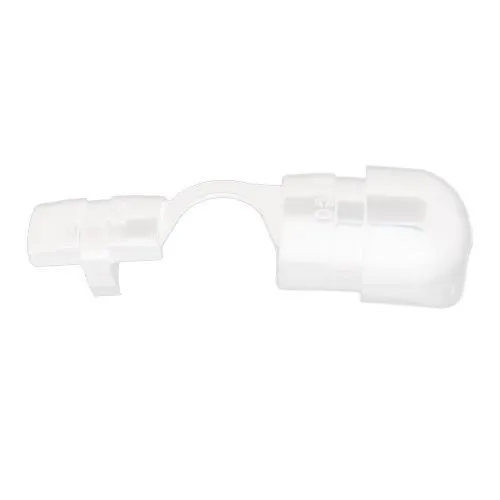

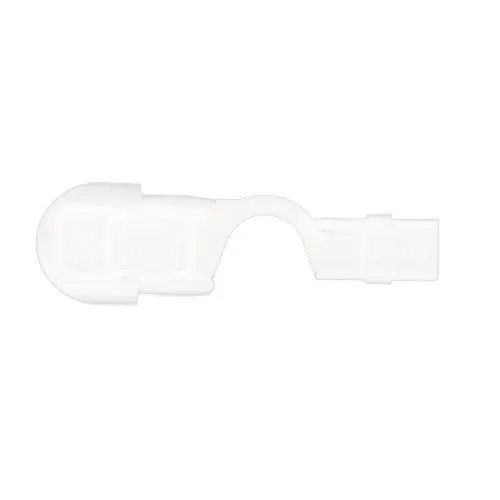

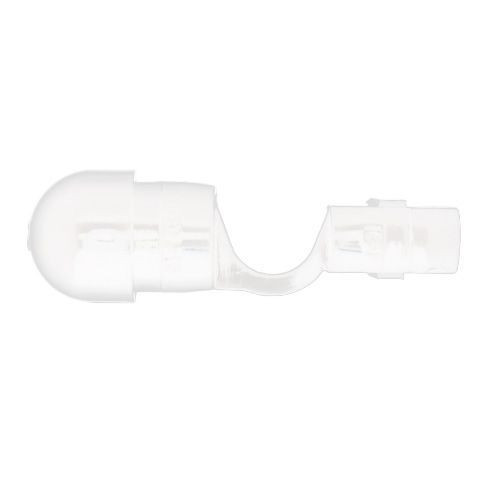

White Right Angle Strain Relief Bushings - 22.2mm Mounting Hole Diameter - 13.5mm Min to 14.2mm Max Cable Diameter - 34.5mm Length | Vital Parts - STRB291R
Right Angle Strain Relief Bushings are part of the original Heyco range and provide a cost-effective alternative to Lockit-style snap-fit bushings. Designed to be installed with pliers, these bushings offer a 90-degree cable exit, making them ideal for use in tight spaces where straight cable routing is impractical. Manufactured from UL94V-2 rated Nylon 6/6, they offer the same reliable cable support as straight thru versions, while conserving space behind panels and enclosures.
CLICK HERE - to check out our guide to Strain Relief!
What are Right Angle Strain Relief Bushings?
Right Angle Strain Relief Bushings are used to secure and protect cables that must exit a panel at a 90-degree angle. They help absorb push and pull forces, reduce strain on the cable entry point and prevent damage from flexing. These bushings are compatible with both round and flat cable profiles and are suited for a range of panel thicknesses down to 1mm. Commonly used in confined electrical or mechanical assemblies, they enhance both safety and product durability.
Key Features:
- Manufactured from UL94V-2 rated Nylon 6/6
- Provides strain relief with right angle cable routing
- Absorbs vibration, shock and pull forces on cable assemblies
- Requires pliers for installation into thicker panels
- Supports both round and flat cable configurations
Key Applications and Industries
- Electrical enclosures with limited depth clearance
- Cable routing in tight control panel spaces
- Appliances, lighting and power equipment
- Machinery and equipment requiring angled cable exits
- Cost-effective alternative to snap-fit Lockit bushings

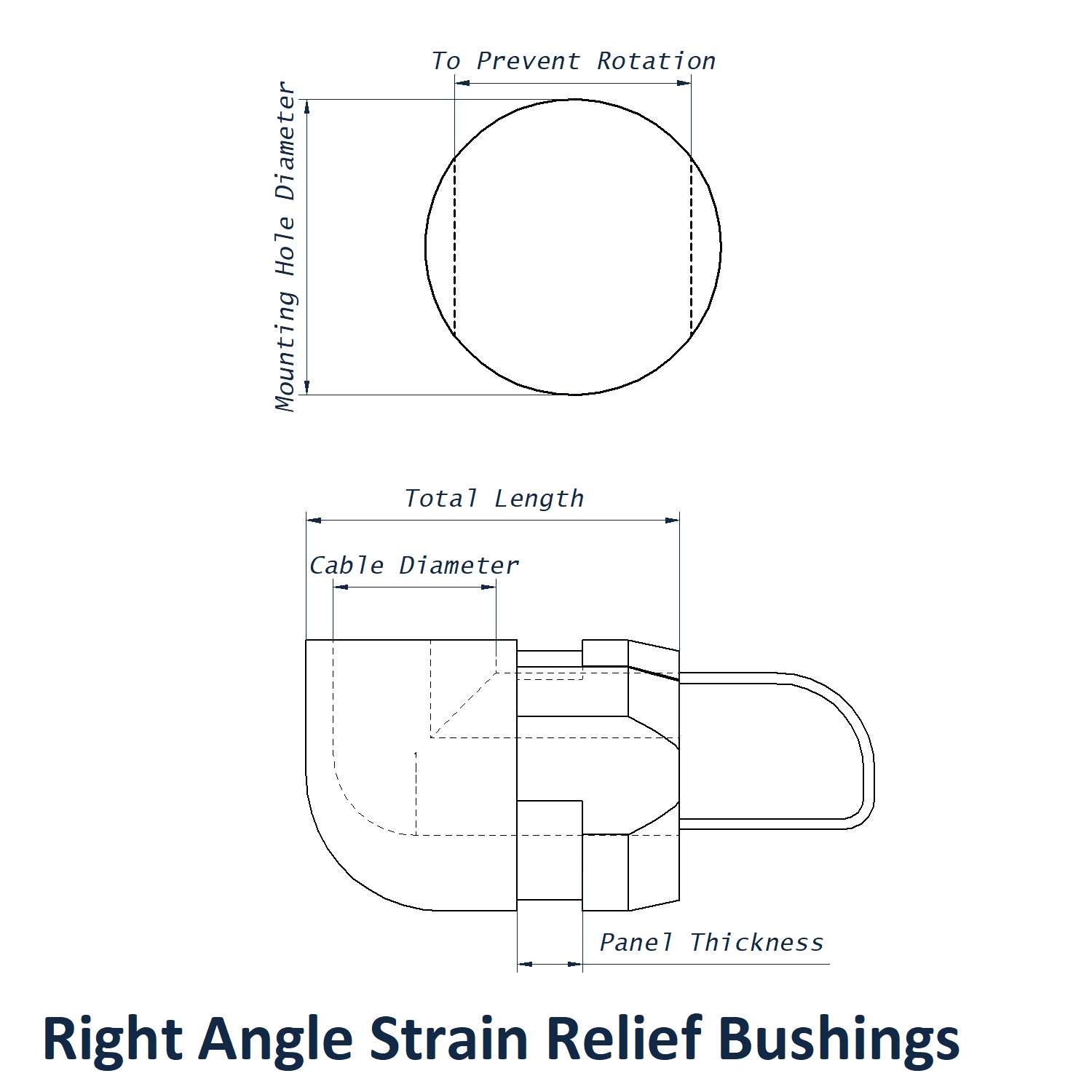

Technical Specifications :
- Mounting Hole Diameter: 22.2mm
- Prevent Rotation: 20.7mm
- Panel Thickness: 3.2mm
- Min Cable Diameter: 13.5mm
- Max Cable Diameter: 14.2mm
- Total Length: 34.5mm
- Material: Nylon 6/6 (UL94V-2 flame rating)
- Operating temperature: -18°C to +105°C
- Mounting style: Pliers required for secure fit
- Available for flat (F) and round (R) cable profiles
- Colour: White
Certifications:
- UL Recognised - File E15331
- Certified by CSA - File 8919
Installation Notes:
Install using pliers by compressing the bushing legs and pressing into the panel hole until secure. Select the correct part number based on cable shape - "R" for round cables and "F" for flat. Assembly tools are available separately via our tools section.
Why Choose Vital Parts?
- UK-based supplier with fast dispatch and expert support
- Bulk discounts and trade pricing for larger orders
- Full selection of strain relief bushings and cable accessories
If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
