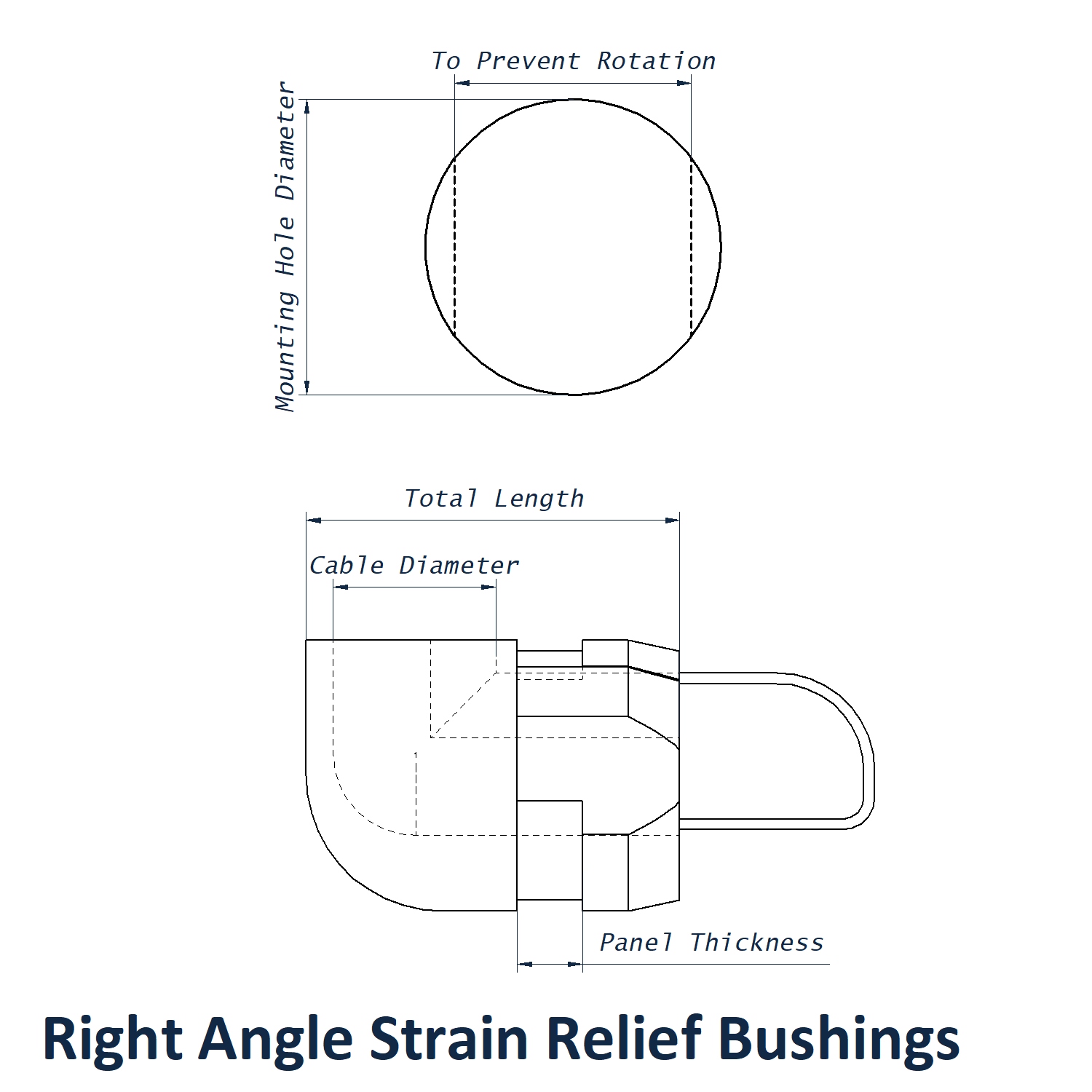

Right Angle Strain Relief Bushings

Right Angle Strain Relief Bushings, also known as right-angle cable bushings or right-angle cable grommets, are essential cable management solutions designed to guide cables exiting enclosures at a 90° angle. Manufactured from flame-retardant Nylon 6/6 with a UL94 V-2 rating, they effectively protect both flat and round cables from bending, abrasion, pull and twist forces. With an operational temperature range from –18 °C to +105 °C, these components are durable and suitable for a variety of UK industries including industrial control panels, machinery, LED lighting systems, telecom racks, and appliance manufacturing. Vital Parts offers a comprehensive range supporting panel hole diameters from 3 mm up to 22 mm, making them highly adaptable for space-saving installations and improved cable routing flexibility.

Available Materials & Style Options

• Black Nylon 6/6 – flame-retardant UL94 V-2
• Hole size variants – panel holes 3 mm to 22 mm (9.5 mm–22.2 mm in competitor ranges)
• Panel thickness compatibility – from approx. 0.8 mm to 3.2 mm
• Cable profiles – compatible with both flat and round cables
• Flat and round cable-specific part numbers and sizes available (e.g. Heyco sets range per AWG and dimensions)

Key Features & Benefits

• UL94 V-2 flame resistance meets safety and regulatory requirements in control and consumer equipment
• Temperature range −18°C to +105°C ensures reliability in diverse UK environments
• Right-angle exit saves panel depth and directs cable parallel to enclosure for efficient routing and strain reduction
• Shock and pull force absorption reduces cable fatigue and extends service life
• UL and CSA recognised component selection offers compliance assurance
• Cost-effective Original design requires pliers for installation, while competitor Lockit versions offer tool-free snap assembly
• Compatible with standard double-D and round panel holes, plus locking panels to prevent rotation

Common UK Use Cases

• Right-angled cable exits in LED signage and retail display enclosures
• Strain relief for power and control leads in PLC and industrial control panels
• Cable protection and organisation in domestic white-goods housings
• Routing cables neatly in telecom racks, data cabinets, and server rooms
• Factory automation wiring—safeguarding against wear in machinery and production equipment
• Light fittings and appliance cable terminations in domestic and commercial settings

Related Vital Parts Products

• Bell-mouth bushings for smooth cable entry
• Liquid-tight bushings (nylon/TPE hybrid) for moisture-resistant installations
• Cable glands and cord-grip bushings
