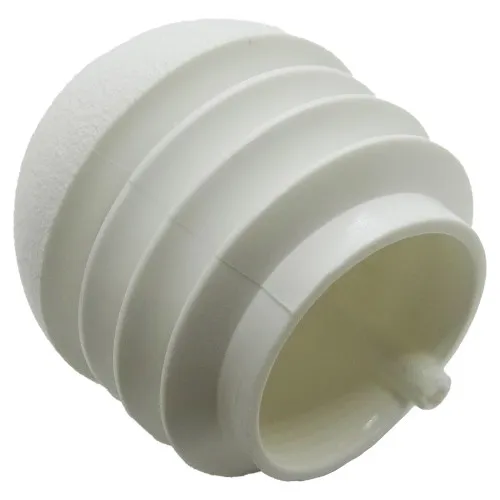

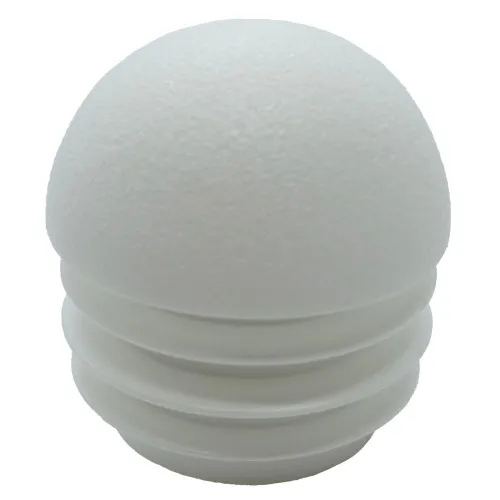

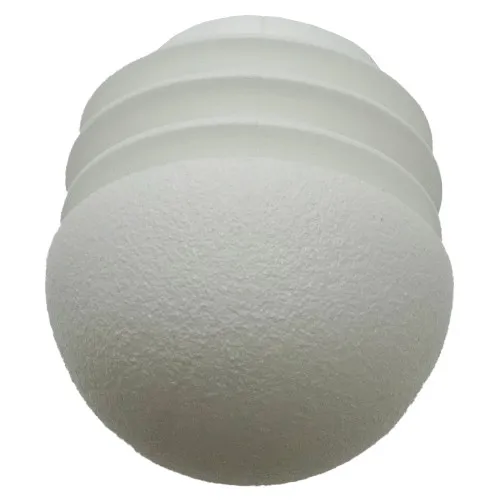

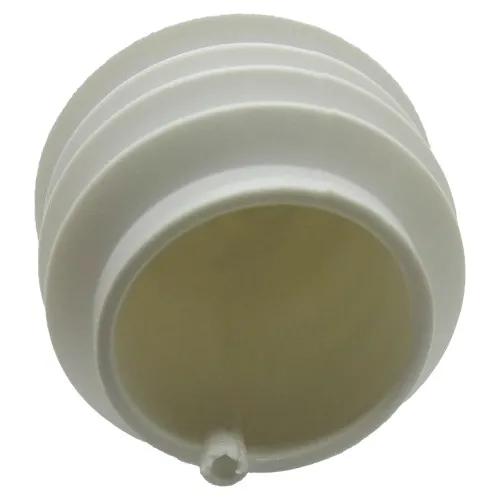

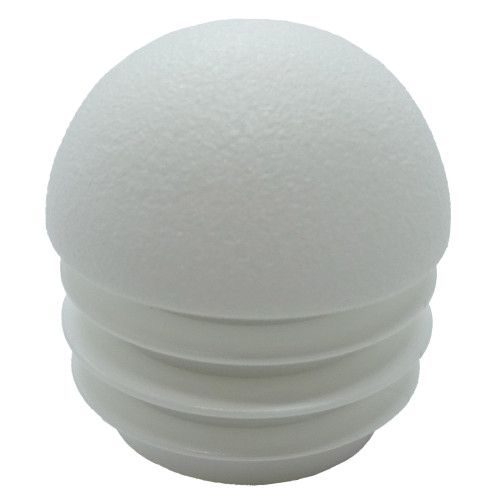

50.8mm White Round Domed Tube Insert (To Fit 45.8-47.8mm Tube) - 1.5-2.5mm Wall - 25.5mm Head Height | LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.72 | £2.06 |
| 100 - 249 | £1.62 | £1.95 |
| 250 - 499 | £1.45 | £1.74 |
| 500 - 999 | £1.20 | £1.44 |
| 1000 + | £0.67 | £0.80 |
£2.06 / each
Product Specification
| Outside Diameter | 50.8mm |
| Wall Thickness | 1.5-2.5mm |
| To Fit Tube Size | 45.8-47.8mm |
| Head Height | 25.5mm |
| Insert Length | 30.0mm |
| Colour | White |
| Material | LDPE |
Frequently Bought Together
Total Price: £0.00
50.8mm White Round Domed Tube Insert - To Fit 45.8-47.8mm | LDPE
Developed for retail display stands and shopfitting, this 50.8mm white domed insert provides both tube-end protection and a rounded visual finish. Its ribbed LDPE shank is specified for 1.5-2.5mm wall thickness. The visible dome is 25.5mm high and the insert section is 30.0mm long.
What Are Round Domed Tube Inserts?
Round domed tube inserts are push-fit components used to close the open ends of round tubing. Their ribbed shank grips inside the tube while the rounded head remains visible above the end, creating a smoother finish and helping prevent dirt, moisture and debris from entering the section.
Common Applications
- Machinery Protection: Helps stop dirt and debris entering open tubular sections on suitable equipment.
- General Maintenance: Replaces missing or damaged push-fit inserts on compatible round tube.
- Retail Displays: Creates a neat end detail on stands, racks and shopfitting frameworks.
- Railings: Covers open round tube ends on compatible internal or external railing assemblies.

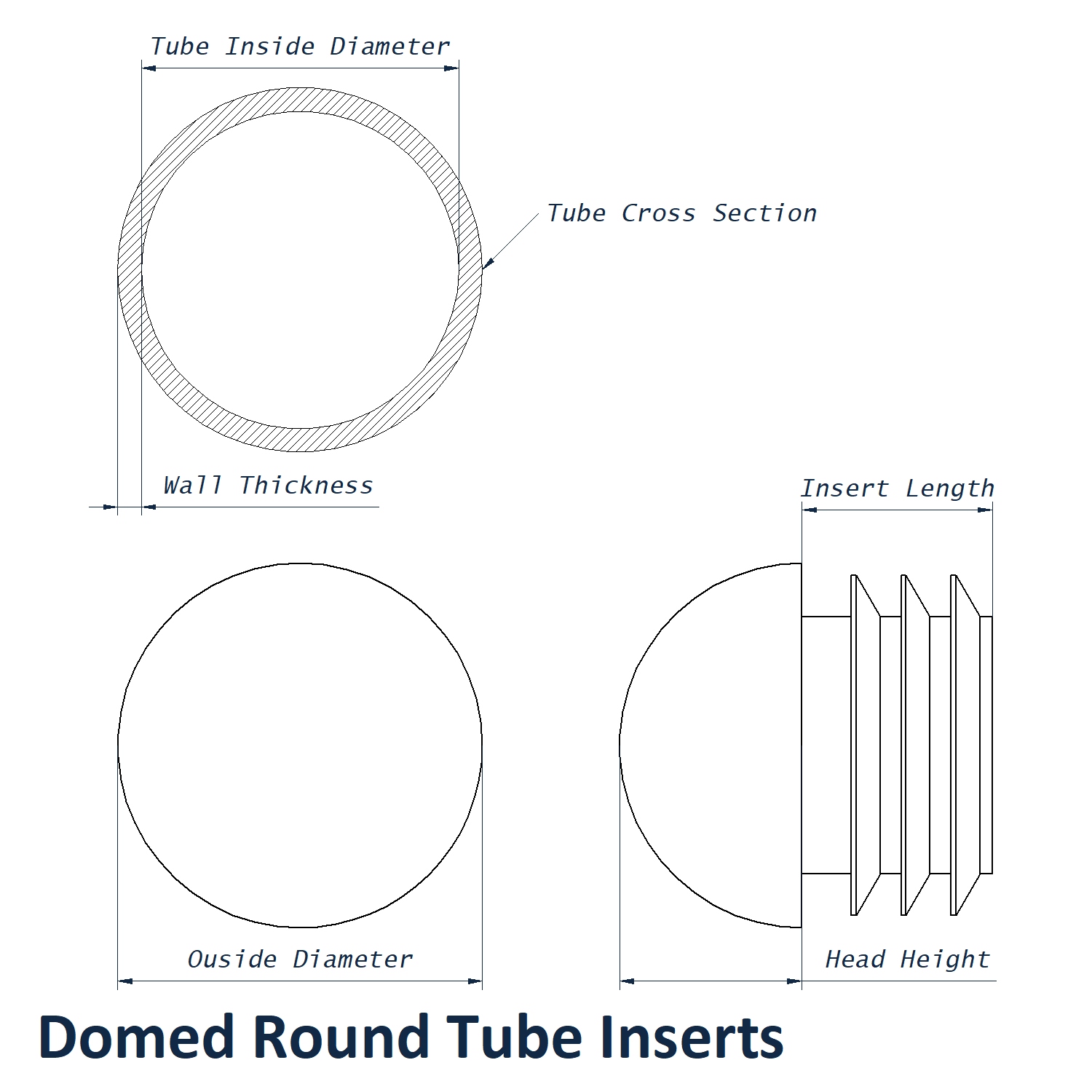

50.8mm White Round Domed Tube Insert Dimensions
- Outside Diameter: 50.8mm
- Wall Thickness: 1.5-2.5mm
- To Fit Tube Size: 45.8-47.8mm
- Head Height: 25.5mm
- Insert Length: 30.0mm
- Colour: White
- Material: LDPE
Key Benefits
- LDPE construction provides a resilient push-fit body.
- Domed head covers the open tube end with a smooth rounded finish.
- 50.8mm outside diameter provides a clear tube-size reference.
- 25.5mm head height creates the visible domed profile.
Review the full domed round tube insert selection for other tube sizes and finishes. Technical support with sizing and application suitability is available on 01233 713581.
