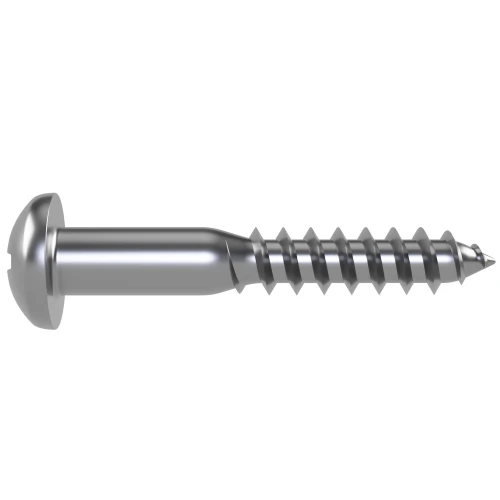

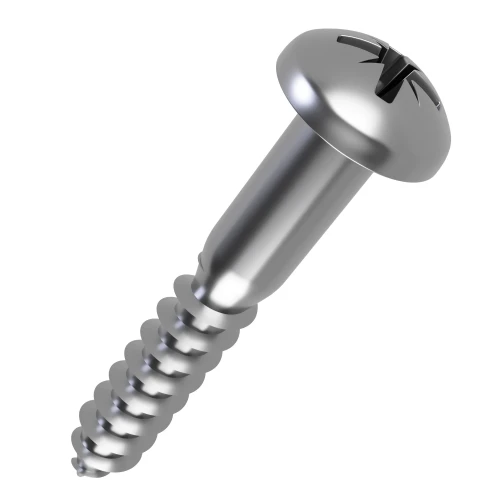

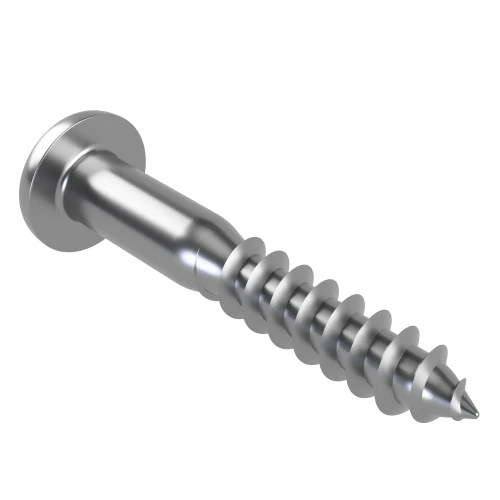

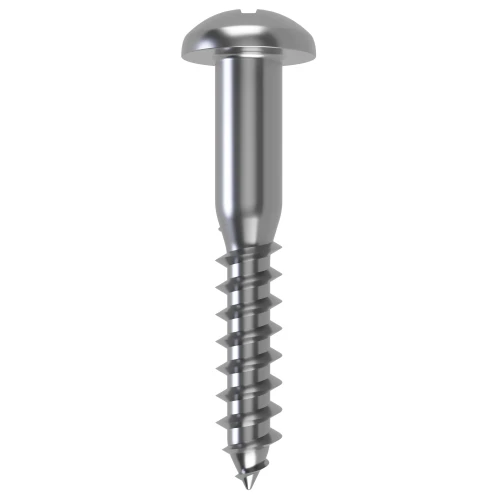

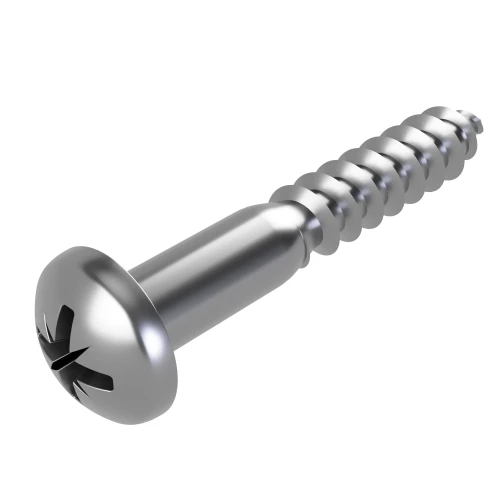

4.5mm x 25mm Pozi Round Head Wood Screw DIN 7996Z - A2 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.19 | £0.23 |
| 100 - 499 | £0.16 | £0.19 |
| 500 - 999 | £0.11 | £0.13 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.08 |
£0.23 / each
Product Specification
| Thread Size | 4.5mm |
| Length | 25mm |
| Thread Length | 15.0mm |
| Material | A2 Stainless Steel |
| Head Diameter | 9.00mm |
| Head Height | 3.10mm |
| Drive | PZ2 |
| Standard | DIN 7996Z |
Frequently Bought Together
4.8mm x 25mm Pozi Raised Countersunk AB Self Tapping Screw (DIN 7983CZ) | A2 Stainless Steel
- Material Blackened Steel & Duroplast
- Thread Type Male
- Handle Length 117mm
- Thread & Length M12 x 50mm
- Body Height 48.5mm
- Body Diameter 19.0mm
- Ball Diameter 32mm
- Shoulder Height 6mm
- Thread Size 4.8mm
- Material A2 Stainless Steel
- Head Diameter 9.5mm
- Length 25.0mm
- Drive PZ2
- Standard DIN 7983CZ
- Head Height 3.00mm
- End Type AB
- Material A2 Stainless Steel
- Thickness 0.80mm
- Internal Diameter 4.3mm
- Outside Diameter 9.0mm
- Standard DIN 125A
- Size M4
Total Price: £0.00
4.5mm x 25mm PZ2 Round Head Wood Screw | A2 Stainless Steel | DIN 7996Z
These 4.5mm x 25mm PZ2 round head wood screws in A2 Stainless Steel are manufactured to DIN 7996Z from A2 Stainless Steel for shopfitting and exhibition timber. The Pozi recess provides positive driver engagement and improved torque control while the domed round head gives a clean visible fixing on timber surfaces. For buyers comparing woodworking screws, this exact 4.5mm x 25mm option provides a clearly defined stainless steel specification.
What Are PZ2 Round Head Wood Screws?
Pozi Round Head Wood Screws are timber fasteners with a raised domed head and cross-recessed Pozi drive. The head remains visible above the wood while the Pozi recess improves driver engagement which can make installation quicker and more controlled than a traditional slotted screw.
Common Applications
- Architectural Woodwork: Provides a visible round-head fixing for decorative timber features and fitted joinery.
- Joinery and Carpentry: Provides reliable fastening for timber trims, frames, fittings and general workshop joinery.
- Construction Timber: Provides a stainless steel fixing for suitable timber details, battens and general wood assemblies.
- Exhibition Builds: Provides a practical wood fixing for timber structures, display panels and temporary installations.

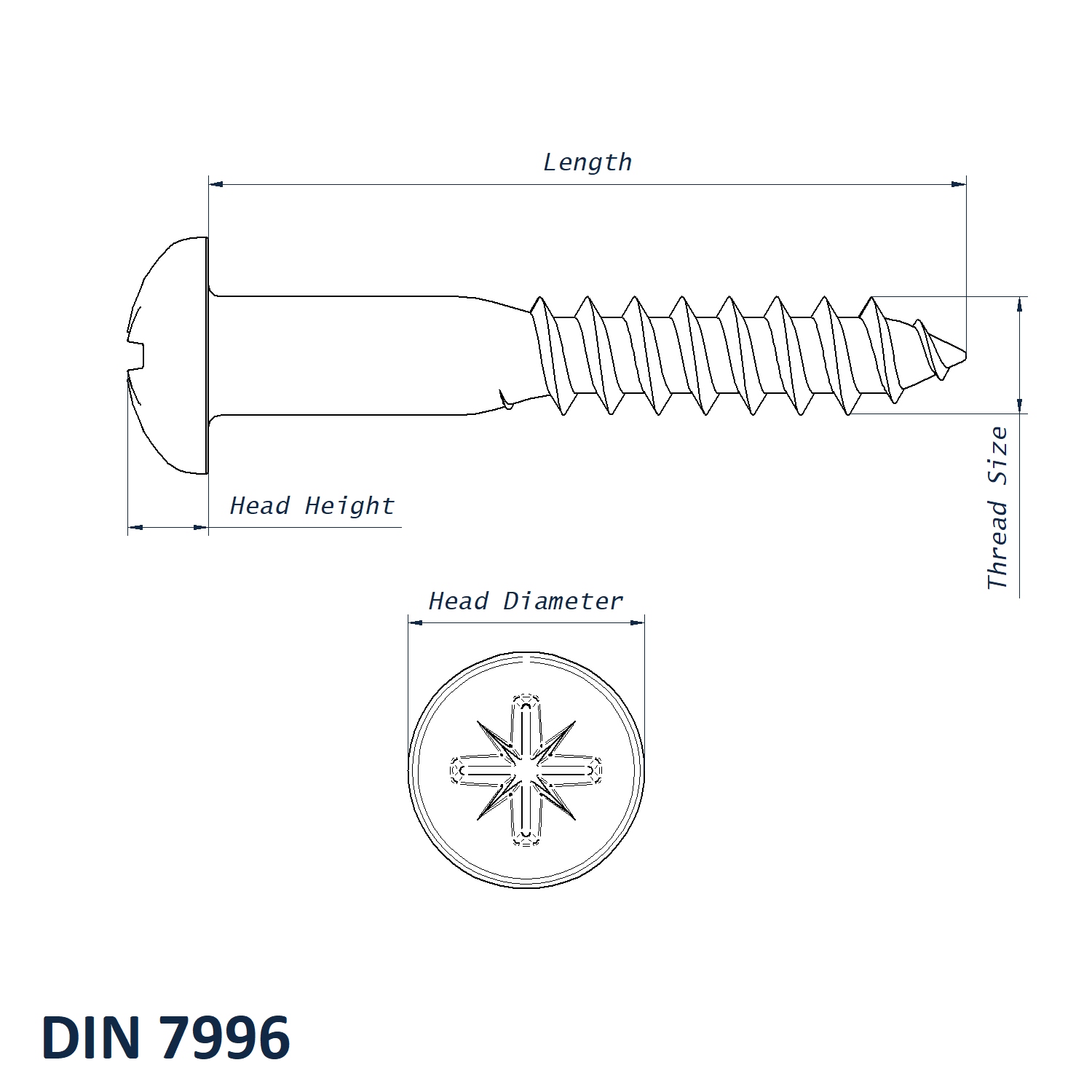

4.5mm x 25mm Round Head Wood Screw Dimensions
- Thread Size: 4.5mm
- Length: 25mm
- Thread Length: 15.0mm
- Head Diameter: 9.00mm
- Head Height: 3.10mm
- Drive: PZ2
- Standard: DIN 7996Z
- Material: A2 Stainless Steel
Key Benefits
- PZ2 drive matches the specified installation method for this screw.
- A2 Stainless Steel provides corrosion-resistant performance for suitable timber and joinery applications.
- The wider Wood Screws range includes alternative head styles and thread formats for different timber applications.
- 15.0mm thread length provides the uploaded threaded engagement dimension for this SKU.
View the complete Round Head Wood Screws range for alternative sizes, drive types and stainless steel grades. You can also check the full Wood Screws range for countersunk, raised countersunk, pan head, mushroom head and other timber screw options. For help selecting the correct size, call 01233 713581.
| Code | Thread Size | Material | Thread Length | Head Diameter | Length | Drive | Standard | Head Height | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|
| WS7996Z-4.5-25-A2 | 4.5mm | A2 Stainless Steel | 15.0mm | 9.00mm | 25mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-4.5-30-A2 | 4.5mm | A2 Stainless Steel | 18.0mm | 9.00mm | 30mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-4.5-35-A2 | 4.5mm | A2 Stainless Steel | 21.0mm | 9.00mm | 35mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-4.5-40-A2 | 4.5mm | A2 Stainless Steel | 24.0mm | 9.00mm | 40mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-4.5-45-A2 | 4.5mm | A2 Stainless Steel | 27.0mm | 9.00mm | 45mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-4.5-50-A2 | 4.5mm | A2 Stainless Steel | 30.0mm | 9.00mm | 50mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-4.5-60-A2 | 4.5mm | A2 Stainless Steel | 36.0mm | 9.00mm | 60mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-4.5-65-A2 | 4.5mm | A2 Stainless Steel | 39.0mm | 9.00mm | 65mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-4.5-70-A2 | 4.5mm | A2 Stainless Steel | 42.0mm | 9.00mm | 70mm | PZ2 | DIN 7996Z | 3.10mm |
Checking...
|
|
| WS7996Z-5.0-16-A2 | 5.0mm | A2 Stainless Steel | 9.6mm | 10.00mm | 16mm | PZ2 | DIN 7996Z | 3.50mm |
Checking...
|
|
| WS7996Z-5.0-20-A2 | 5.0mm | A2 Stainless Steel | 12.0mm | 10.00mm | 20mm | PZ2 | DIN 7996Z | 3.50mm |
Checking...
|
|
