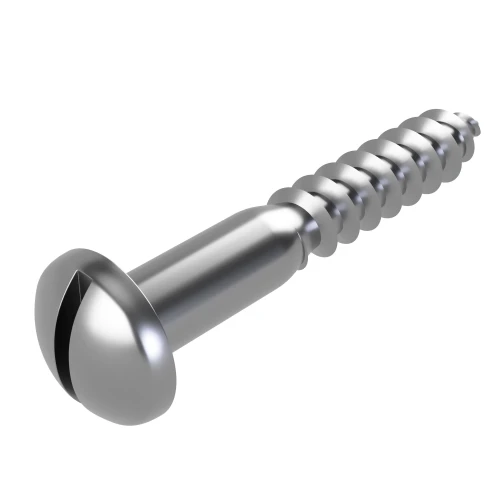

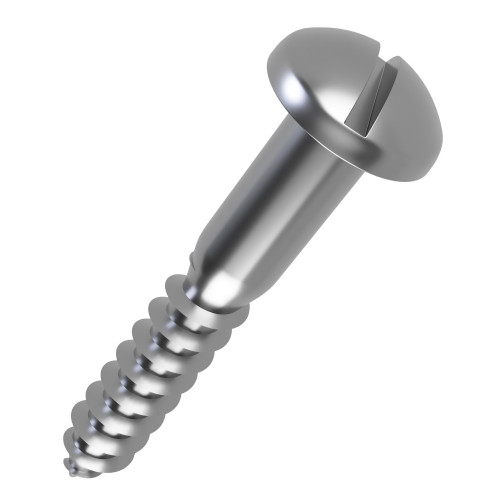

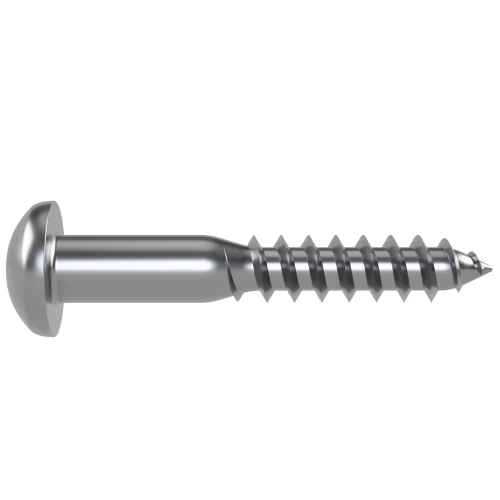

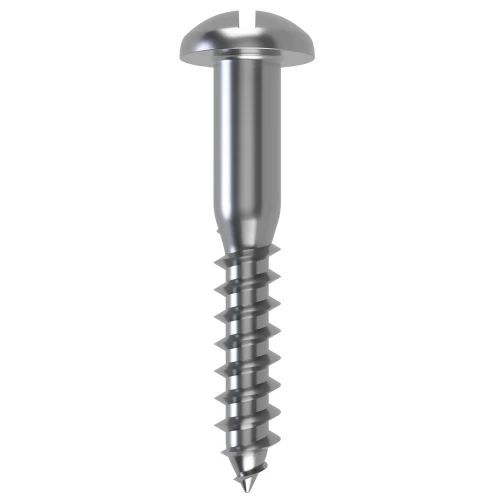

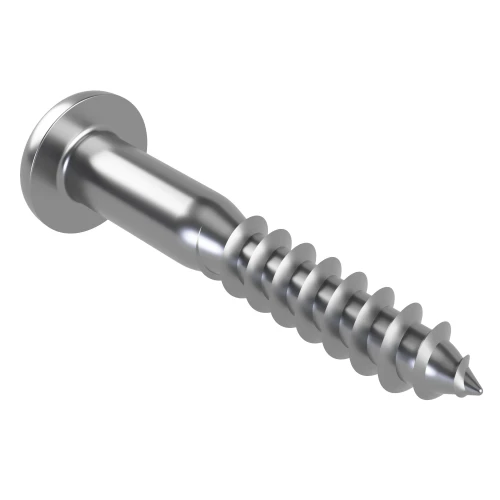

5.0mm x 40mm Slot Round Head Wood Screw DIN 96 - A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.37 | £0.44 |
| 100 - 499 | £0.31 | £0.37 |
| 500 - 999 | £0.26 | £0.31 |
| 1000 - 4999 | £0.18 | £0.22 |
| 5000 + | £0.12 | £0.14 |
£0.44 / each
.png)
Product Specification
| Thread Size | 5.0mm |
| Length | 40mm |
| Thread Length | 24.0mm |
| Material | A2 Stainless Steel |
| Head Diameter | 10.00mm |
| Head Height | 3.50mm |
| Drive | Slotted |
| Standard | DIN 96 |
Frequently Bought Together
Total Price: £0.00
5mm x 40mm Slotted Round Head Wood Screw | A2 Stainless Steel | DIN 96
Suitable for furniture making and cabinet hardware, this 5mm x 40mm Slotted round head wood screws in A2 Stainless Steel provides a traditional round-head fixing made to DIN 96. The visible domed head spreads the bearing area over the fitted hardware while the slotted recess is ideal for controlled manual installation and restoration-style woodworking. As a joinery screws option, this SKU combines the specified drive, stainless steel grade and round-head profile in one defined size.
What Are Slotted Round Head Wood Screws?
DIN 96 Round Head Wood Screws combine a tapered wood-screw thread with a classic slotted recess. The rounded head bears against the surface of the fitting rather than sitting flush which makes the screw suitable for brackets, straps, hinges and other visible timber hardware.
Common Applications
- DIY Woodworking: Supports furniture repairs, shelving, brackets and general timber fastening around the home or workshop.
- Workshop Assembly: Fastens brackets, plates and components to timber during fabrication, repair and maintenance work.
- Cabinet Making: Secures hinges, catches, brackets and other hardware to suitable timber and board materials.
- Outdoor Woodwork: Stainless steel construction suits suitable exterior timber projects where corrosion resistance is important.

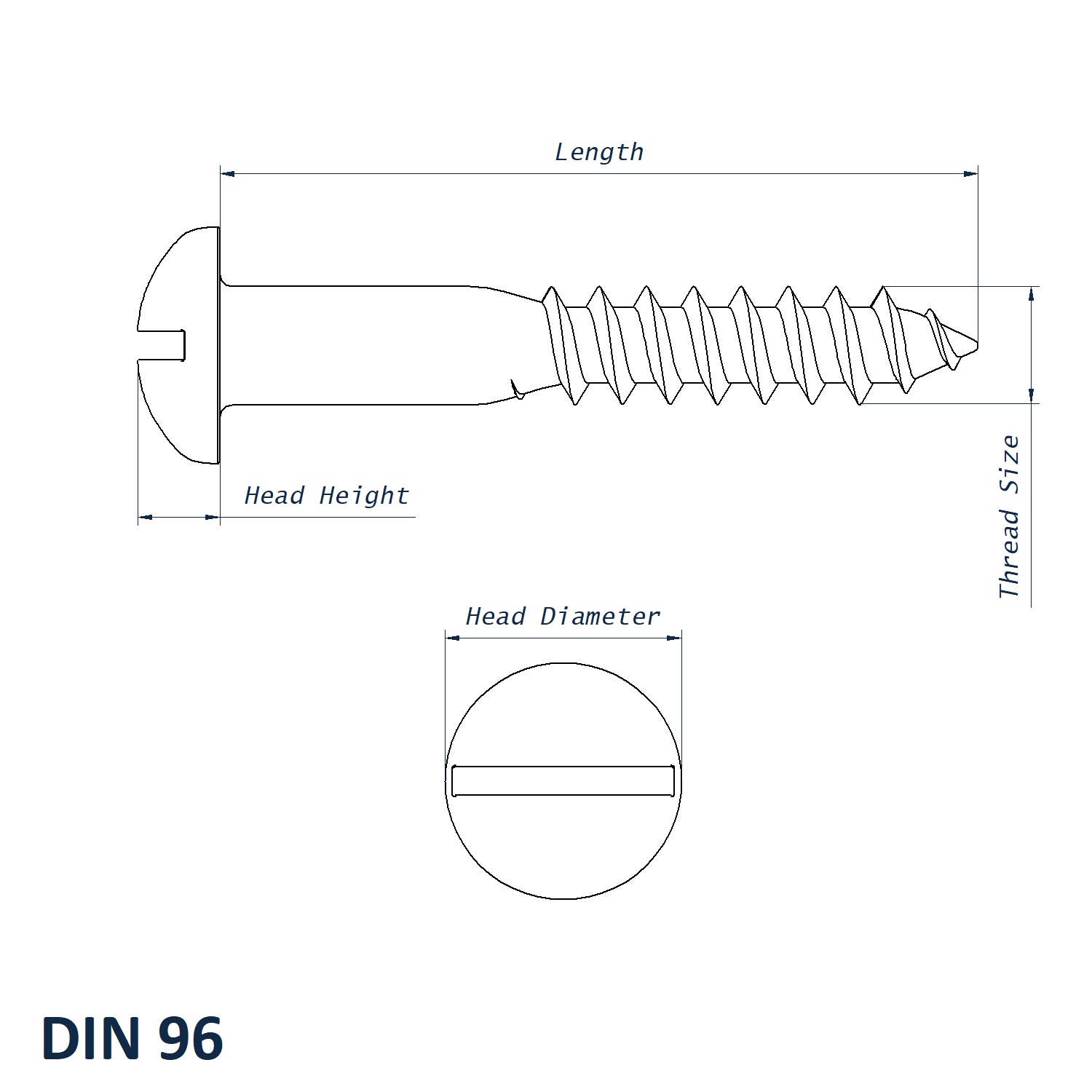

5mm x 40mm Round Head Wood Screw Dimensions
- Thread Size: 5.0mm
- Length: 40mm
- Thread Length: 24.0mm
- Head Diameter: 10.00mm
- Head Height: 3.50mm
- Drive: Slotted
- Standard: DIN 96
- Material: A2 Stainless Steel
Key Benefits
- A2 Stainless Steel provides corrosion-resistant performance for suitable timber and joinery applications.
- Wood-screw thread is suited to timber fastening when used with an appropriate pilot hole.
- 24.0mm thread length provides the uploaded threaded engagement dimension for this SKU.
- 3.50mm head height matches the raised round-head profile for this size.
For other dimensions within this head style, visit our Round Head Wood Screws category. To compare different timber screw designs, check our broader Wood Screws range. Our technical sales team is available on 01233 713581.
