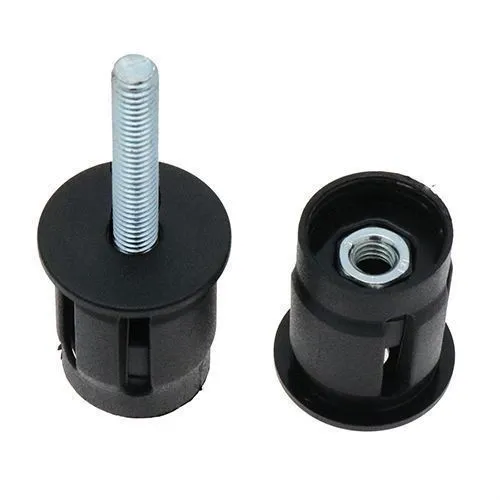

40mm Round Tube Connector (M8 Thread) - 29mm Length - 1.5mm Wall | Nylon

Product code: TC147
View All Specifications
40mm Round Tube Connector (M8 Thread) - 29mm Length - 1.5mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 1.5mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 1.5mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 1.5mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 1.5mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 1.5mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £2.75 £3.30
100 - 249 £2.52 £3.03
250 - 499 £2.33 £2.79
500 - 999 £2.14 £2.57
1000 + £1.97 £2.36

£3.30 / each


Up to 96 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
96 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 40mm
Wall Thickness 1.5mm
Internal Length 29mm
Thread Size M8
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

40mm Round Straight Connector | M8 Thread | 1.5mm Wall | Nylon

Designed for display stands and retail fixtures, this 40mm round tube connector provides an internal joining point for extending compatible round tubing. The 29mm internal length gives the connector secure engagement inside the tube while the M8 fixing helps expand the ribbed body against the internal wall.

What Are Round Straight Connectors?

Straight Tube Joiners are useful when a tubular frame needs to be extended or assembled from separate round sections. Their internal fit keeps the outside of the tube relatively clear while the threaded fixing helps lock the connector into place.

Common Applications

  • Machine Guards: Can join suitable round-tube sections used in lightweight protective or support frames.
  • Furniture Frames: Joins matching round tube sections in chairs, tables and other tubular furniture assemblies.
  • Workshop Projects: Provides a simple method for extending round tubing in custom frames, fixtures and prototypes.
  • Modular Assemblies: Allows tubular sections to be connected and separated as part of modular frame designs.

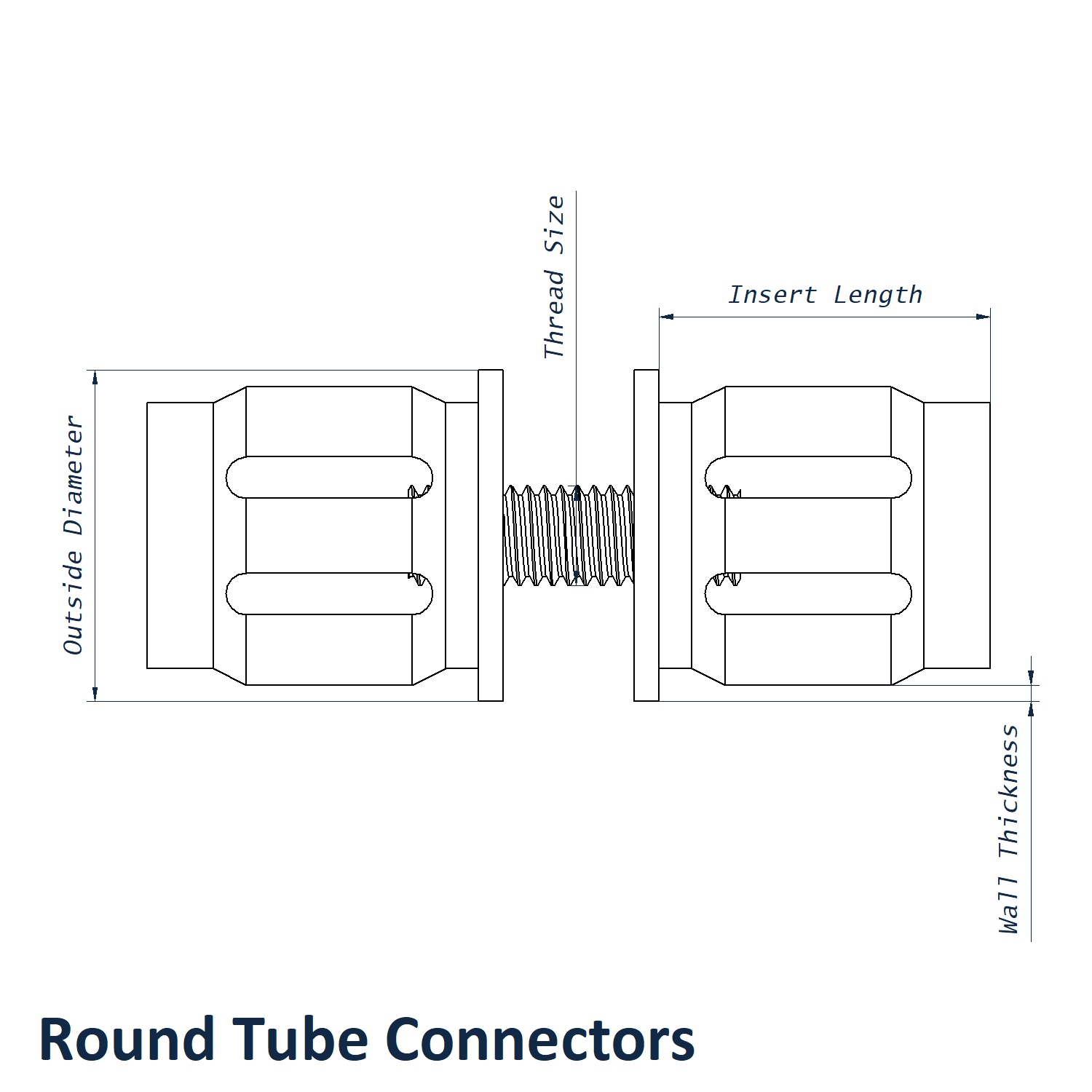

40mm Round Straight Connector Dimensions

  • Outside Diameter: 40mm
  • Wall Thickness: 1.5mm
  • Internal Length: 29mm
  • Thread Size: M8
  • Material: Nylon

Key Benefits

  • Expanding fixing supports secure retention and alignment between matching tube sections.
  • Concealed fit keeps the outside of the tubular frame clean and unobstructed.
  • 29mm internal length provides the stated engagement inside the adjoining tube sections.
  • Nylon construction provides a lightweight durable body for internal tube assembly.

Compare more sizes in our Round Tube Connector range for different tube diameters and wall thicknesses. They work particularly well alongside our Saddle Tube Connectors when a frame needs both end-to-end joints and perpendicular tube connections. If you are unsure which size fits, contact our team on 01233 713581.
