40mm Round Tube Connector (M8 Thread) - 29mm Length - 3mm Wall | Nylon

Product code: TC150
View All Specifications
40mm Round Tube Connector (M8 Thread) - 29mm Length - 3mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 3mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 3mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 3mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 3mm Wall | Nylon
40mm Round Tube Connector (M8 Thread) - 29mm Length - 3mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £2.58 £3.09
100 - 249 £2.37 £2.84
250 - 499 £2.18 £2.62
500 - 999 £2.01 £2.41
1000 + £1.84 £2.21

£3.09 / each


Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 40mm
Wall Thickness 3.0mm
Internal Length 29mm
Thread Size M8
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

40mm Round Straight Connector | M8 Thread | 3mm Wall | Nylon

This 40mm tube extension connector suits tubular frames where two matching round sections need to be joined end to end. The internal Nylon connector uses adjustable ribs and a M8 fixing to grip inside tubing with a 3mm wall thickness.

What Are Round Straight Connectors?

Round Straight Connectors are internal tube joiners designed to connect two matching round tubes in a straight 180° line. The ribbed Nylon body fits inside the tube ends and expands during tightening to help create a secure joint without an external connector around the outside.

Common Applications

  • Furniture Frames: Joins matching round tube sections in chairs, tables and other tubular furniture assemblies.
  • Fabricated Frames: Creates a straight internal joint between compatible tube sections in light engineering structures.
  • Modular Assemblies: Allows tubular sections to be connected and separated as part of modular frame designs.
  • General Fabrication: Supports straight tube extensions where an internal connector is preferred over an external sleeve.

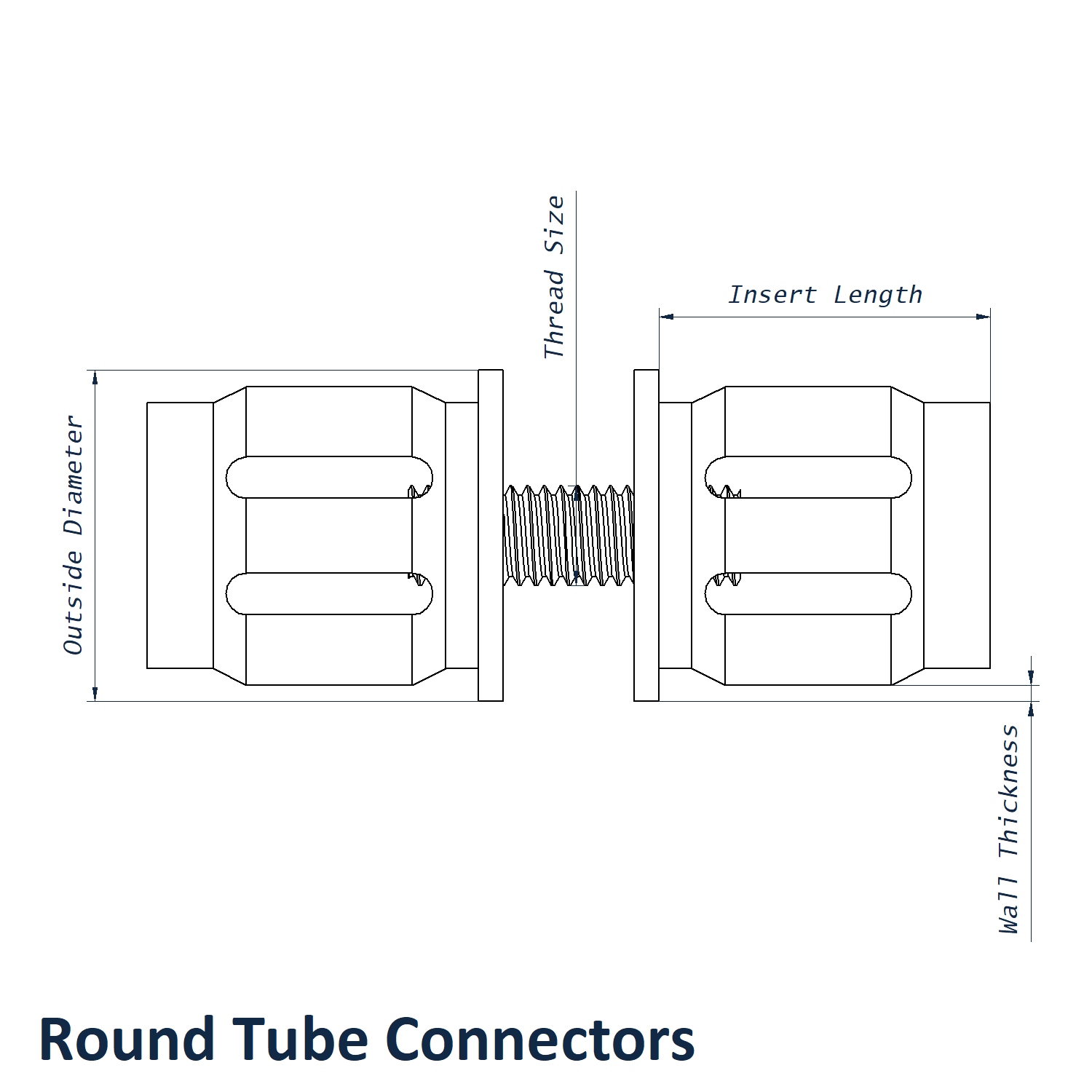

40mm Round Straight Connector Dimensions

  • Outside Diameter: 40mm
  • Wall Thickness: 3.0mm
  • Internal Length: 29mm
  • Thread Size: M8
  • Material: Nylon

Key Benefits

  • 40mm outside diameter provides the main tube-size reference.
  • 29mm internal length provides the stated engagement inside the adjoining tube sections.
  • Internal design creates a neat straight joint without an external sleeve around the tubing.
  • Expanding fixing supports secure retention and alignment between matching tube sections.

View the full Round Straight Connectors range to compare tube diameters, wall thicknesses and thread sizes. These connectors are also great to pair with our Saddle Tube Connectors when building more complete tubular frames with both straight extensions and intersecting tube joints. If you need help matching a connector to your tube, call us on 01233 713581.
