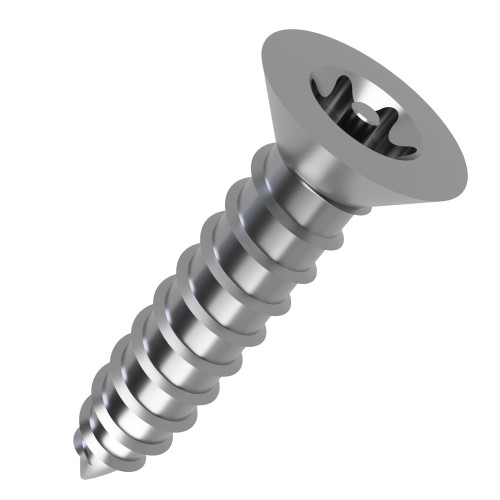

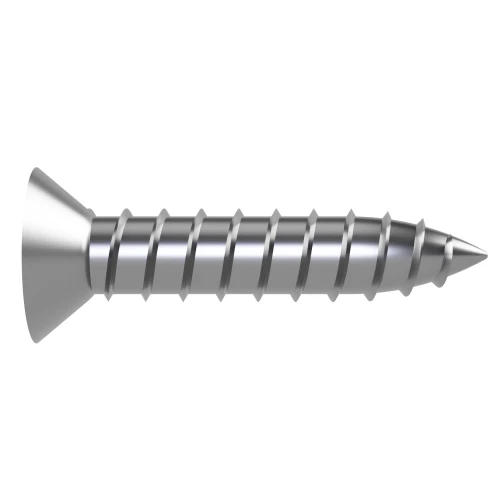

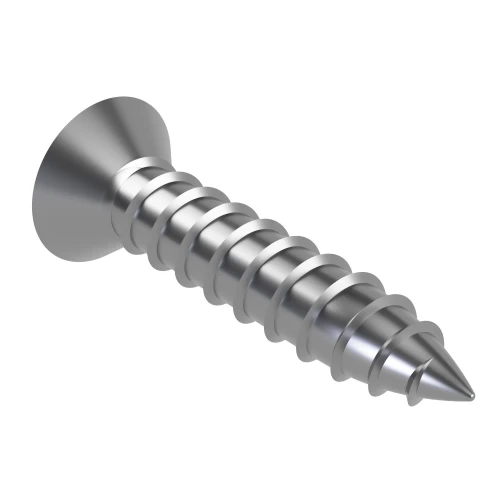

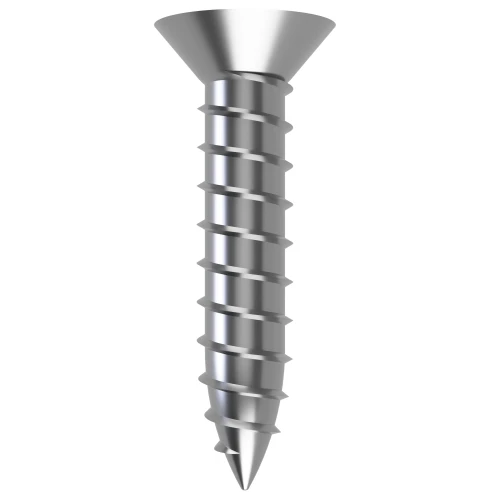

4.8mm x 50mm Pin Torx Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.32 | £0.38 |
| 100 - 499 | £0.31 | £0.37 |
| 500 - 999 | £0.27 | £0.32 |
| 1000 + | £0.12 | £0.15 |
Product Specification
| Thread Size | 4.8mm |
| Length | 50.0mm |
| Head Diameter | 9.3mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Pin Torx |
| Drive | Security T25 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together

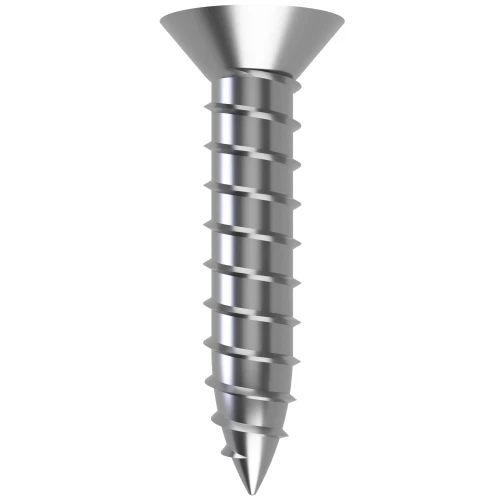

4.8mm x 50mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
Total Price: £0.00
4.8mm x 50mm Pin Torx Countersunk AB Self Tapping Screw | A2 Stainless Steel
Useful for production and repair tasks, this 4.8mm x 50mm countersunk assembly screw supports fitting trailer body panels with a flush head design.
The 9.3mm head diameter provides a practical seating area and the Security T25 drive helps maintain control during installation. A2 stainless steel supports corrosion resistance and consistent performance in display hardware work where corrosion resistance is required.
Common Applications
- Assembling service covers
- Mounting equipment nameplates
- Securing utility covers
- Securing service access plates

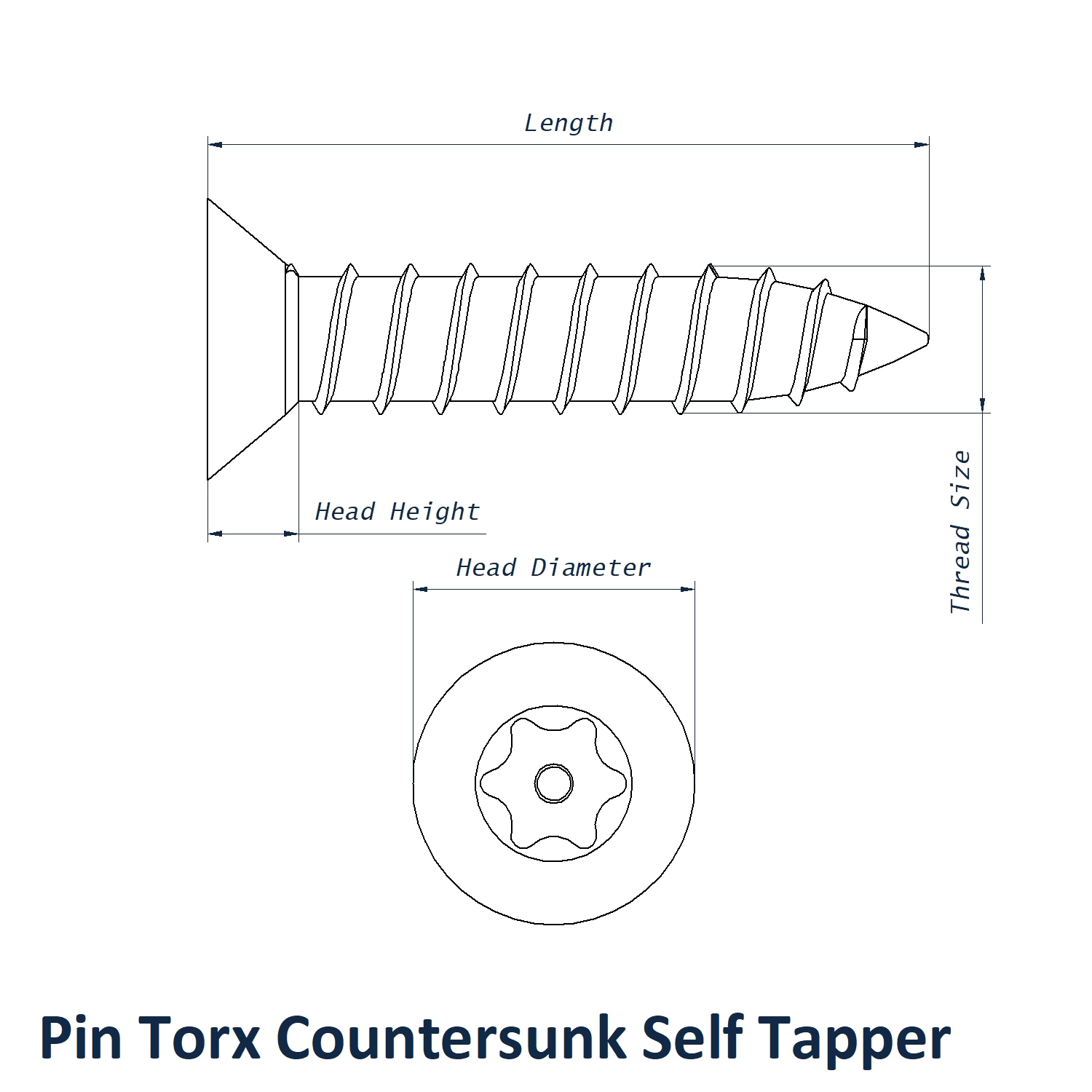

4.8mm x 50mm Pin Torx Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 50mm
- Head Diameter: 9.3mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security T25
- Drive Type: Pin Torx
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
